Diagnostic and clinical features of lung cancer associated with cystic airspaces

Annemie Snoeckx1, Pieter Reyntiens1, Laurens Carp2, Maarten J. Spinhoven1, Haroun El Addouli1, Astrid Van Hoyweghen1, Simon Nicolay1, Paul E. Van Schil3, Patrick Pauwels4, Jan P. van Meerbeeck5, Paul M. Parizel1

1Department of Radiology, 2Department of Nuclear Medicine, 3Department of Thoracic and Vascular Surgery, 4Department of Pathology, 5Department of Pulmonology and Thoracic Oncology, Antwerp University Hospital and University of Antwerp, Edegem, Belgium

Contributions: (I) Concept and design: A Snoeckx, P Reyntiens, PE Van Schil, P Pauwels, PM Parizel, JP van Meerbeeck; (II) Administrative support: None; (III) Provision of study material or patients: All authors; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: None; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Annemie Snoeckx. Department of Radiology, Antwerp University Hospital and University of Antwerp, Wilrijkstraat 10, 2650 Edegem, Belgium. Email: annemie.snoeckx@uza.be.

Abstract: “Lung cancer associated with cystic airspaces” is an uncommon manifestation, in which lung cancer presents on imaging studies with a cystic area with associated consolidation and/or ground glass. With the widespread use of computed tomography (CT), both in clinical practice and for lung cancer screening, these tumors are being more frequently recognized. An association of this entity with smoking has been established with the majority of cases reported being in former and current smokers. The true pathogenesis of the cystic airspace is not yet fully understood. Different causes of this cystic airspace have been described, including a check-valve mechanism obstructing the small airways, lepidic growth of adenocarcinoma on emphysematous lung parenchyma, cyst formation of tumor and tumor growth along the wall of a pre-existing bulla. Adenocarcinoma is the commonest histological type, followed by squamous cell carcinoma. Two classification systems have been described, based on morphological features of the lesion, taking into account both the cystic airspace as well as the morphology of the surrounding consolidation or ground glass. The cystic component may mislead radiologists to a benign etiology and the many different faces on imaging can make early diagnosis challenging. Special attention should be made to focal or diffuse wall thickening and consolidation or ground glass abutting or interspersed with cystic airspaces. Despite their atypical morphology, staging and management currently are still similar to that of other lung cancer types. Although the rarity of this entity will hamper larger studies, numerous aspects regarding this particular lung cancer type still need to be unraveled. This manuscript reviews the CT-imaging findings and gives an overview of available data in the English literature on pathogenesis, histopathology and clinical findings. Differential diagnosis and pitfalls are discussed as well as future directions regarding staging and management.

Keywords: Computed tomography (CT); lung neoplasms; cystic; early diagnosis


Submitted Nov 22, 2018. Accepted for publication Feb 18, 2019.

doi: 10.21037/jtd.2019.02.91


Introduction

Lung cancer remains the leading cause of cancer-related deaths worldwide (1), generally presenting on imaging studies as mass or nodule. “Lung cancer associated with cystic airspaces” is a rarer manifestation, in which lung cancer presents on CT as a “cystic area” with associated consolidation and/or ground glass. Since the first publication in the 1940’s (2), numerous cases have been reported in different ways e.g., “Carcinoma of the bronchus presenting as thin-walled cysts” (3), “Carcinoma masquerading as a thin walled cyst” (4), “Bronchogenic carcinoma and giant bullous disease” (5), “Bronchioloalveolar carcinoma arising in longstanding lung cysts” (6), “Lung carcinoma associated with bullous lung disease” (7).

Upon today, there is no clear definition of what this cystic component is, nor is there one clear diagnosis on histopathology. The appearance of lung cancer associated with cystic airspaces on CT is that of a single or multiple “cystlike” components, with areas of ground glass or consolidation abutting the wall of the cystic part or interspersed between the cystic components. The Glossary of Terms for Thoracic Imaging by the Fleischner Society defines “cyst”, but currently does not define this lung cancer entity (8). Despite the absence of a clear definition, it should not be confused with or misinterpreted as cavitary lesion. A cyst contains air, but occurs in an area with normal lung and has a thinner wall, less than 2 mm (8). A cavity is a gas-filled space, seen as a lucency or low-attenuation area, within pulmonary consolidation, a mass or a nodule (8). In contrast to cavities or cavitary lung masses which can sometimes contain a fluid level, the cystic part in lung cancer associated with cystic airspaces does not contain fluid. In cases where the diffuse wall thickening of a cystic airspace tumor progresses (type III as further discussed), it may however mimic a cavitary lung lesion.

Although overall still rare, lung cancer associated with cystic airspaces is becoming more frequently encountered on imaging studies, due to the widespread use of CT in daily clinical practice and evolution of lung cancer screening programs. Unfortunately, due to the uncommon morphology lung cancer associated with cystic airspaces often remains unrecognized with risk of delayed diagnosis (9,10). Whereas early lung cancers most often present as subsolid or solid nodules (11-15), less common manifestations have been identified, including manifestation as a lesion with cystic airspace morphology (16,17). In a screensetting, Farooqi et al. observed a 3.7% of cancer cases presenting with cystic airspace. With an incidence of 3.5%, Kaneda et al. reported similar findings in a surgical, predominant non-screen, population (18). In the largest study by Fintelmann, 1% of lung cancer patients showed this morphological tumor type on CT-imaging studies (19). This 1% is probably underestimated since a high number of cases (325 cases) were excluded because of an observation period of less than 6 months.


Clinical characteristics

Guo (20), Mascalchi (21) and Kaneda (18) et al. showed that lung cancer associated with cystic airspaces was more frequent in their series in men than in women. Farooqi et al. did show however in a screensetting that 50% of this tumor type occurred in men and 50% in women (22). The largest study by Fintelmann et al. showed a higher incidence of female patients (19) (Table 1). Mean age at time of diagnosis varied in the different studies from 58.3 to 70.6 years. Except for one never-smoker in the study by Fintelmann, the majority of cases were ever (former and current) smokers. This is also reflected in the high rate of patients presenting with emphysematous changes on imaging in all studies (18-22). Fintelmann et al. showed an association of lung cancer associated with cystic airspaces with smoking and presence of emphysema (19). The association with smoking status is also reflected in the relatively higher incidence of this tumor type (in comparison to the other studies) in the lung cancer screening population reported by Farooqi et al. (Table 1) (22). The studies from Fintelmann and Mascalchi showed that respectively 47% and 41% of patients with a cystic airspace tumor had a previous cancer history, often of pulmonary origin. Related to the screensetting, patients in the study by Farooqi were asymptomatic. The study by Fintelmann does not give insight in the clinical presentation. One might expect a similar clinical presentation as with other lung cancer types, depending on the stage of tumor spread. In rare cases, acute chest pain due to a pneumothorax can be the initial clinical presentation in a patient with a cystic airspace tumor. (Figure 1).

Table 1
Table 1 Overview of patients characteristics, imaging findings and diagnosis in different studies investigating lung cancers associated with cystic airspaces
Full table
Figure 1 An 87-year-old woman presented at the emergency department with acute chest pain and respiratory distress. Plain radiograph (not shown) depicted a large right-sided pneumothorax. Axial CT in lung window setting (A) after chest tube drainage shows a large thin-walled cystic airspace in the right upper lobe with exophytic solid nodule (white arrow). Also note the residual subcutaneous emphysema in the right breast and chest wall. 18F-FDG-PET examination showed (B) a high uptake in the exophytic solid nodule (white arrow). Histopathologic examination after right upper lobe lobectomy revealed a 1.5 cm poorly differentiated adenocarcinoma with high-grade dysplasia and focal areas of adenocarcinoma in situ in the cyst wall. CT, computed tomography; 18F-FDG-PET, 18F-fluorodeoxyglucose positron emission tomography.

Pathogenesis

The exact carcinogenic mechanism remains unclear. A number of possible hypotheses have been discussed in literature. The first reports in the 1940’s assigned the cause of lung cancer associated with cystic airspaces to a previously existing congenital malformation (2). Anderson and Pierce described in the 1950’s a series of 6 cases of carcinoma of the bronchus in which the radiological appearance was that of a thin-walled cavity or cyst. They suggest that this was not caused by a spreading consolidation that later excavated, but rather by a thin layer of malignant cells initially growing along a pre-existing cavity that resulted from intermittent valvular bronchial occlusion caused by a small nodule (3). Different authors address the relationship of lung carcinoma with bullous disease of the lung (5,7,23). In the majority of case reports, the exact type of the cyst is not specified. Maki et al. described a series of 20 patients with CT-appearances of bronchogenic carcinoma associated with bullous lung disease. Lantuejoul et al. described 7 cases of (formerly called) congenital cystic adenomatoid malformation (CCAM) type I with adenocarcinoma. They showed that mucinous proliferations in type I CCAM harbor the same differentiation profile than corresponding mucinous bronchioloalveolar carcinoma of the lung (24). A review by Kaneda et al. of 95 cases (predominantly of Asian origin) stipulated that limited air flow in areas of compressed parenchyma and connective tissues surrounding a pulmonary bulla may cause deposits of microorganisms on the wall of the bulla with repeated infection. This repeated inflammatory process might cause a fibrous scar to form around the bulla, causing accumulation of carcinogens. Cysts may interfere with ventilation and lung clearance and thus facilitate deposition of carcinogens (2,5). The study by Farooqi et al. showed that pathologic findings reflected the CT-imaging features with large dominant cystic airspace with associated carcinoma, but that the histological features of the cystic lesions were variable. There was however no evidence for any relationship with pre-existing congenital cystic lung disease (22). In the series of Mascalchi et al., 6 out of 24 lesions showed an increase in size of the cystic airspace, which was presumably caused by a valve mechanism on the distal airway connected with the cystic airspace (21). Fintelmann et al. also observed a change in morphology from unilocular to multilocular in 6 out of 24 cases. In 16 cases, the size of the cystic component increased (19). This study gives more insight in the pathogenesis: the cystic airspace on CT may be caused by different mechanisms. Most commonly (in 38% of cases) this is caused by a check-valve mechanism obstructing the small airways. Other causes include lepidic growth of adenocarcinoma on emphysematous lung parenchyma, cyst formation of tumor and growth along the wall of a pre-existing bulla. The fact that lung cancer associated with cystic airspaces has also been described in synchronous (Figure 2) and metachronous (Figure 3) cases, suggests an etiology related to intrinsic mechanism of tumor growth in some cases, rather than developmental changes in pre-existing cystic or bullous lung disease (10,21).

Figure 2 Axial images in lung window setting in a 68-year-old woman who presented with numerous pulmonary nodules of variable morphology, including numerous lesions with cystic airspace morphology. (A) Histopathologic examination (transbronchial biopsy) of the spiculated solid nodule in the right upper lobe (thin white arrow) showed an invasive adenocarcinoma with EGFR exon 18 mutation. Also note a cystic airspace area in the left upper lobe, with interspersed areas of ground glass (thick white arrow); (B) in the left upper lobe there is a small cystic airspace with small exophytic solid nodule (white arrow); (C) in the left lower lobe there is a third cystic-airspace lesion, with focal asymmetric wall thickening and exophytic solid component with surrounding ground glass. Histopathologic examination of this lesion showed an adenocarcinoma with different histological morphology and molecular profile (no EGFR mutation) than the spiculated solid lesion in the right upper lobe; (D) during follow-up the exophytic nodule abutting the cystic airspace in the left upper lobe steadily increased in size. EGFR, epidermal growth factor receptor.
Figure 3 A 76-year-old man was referred to the radiology department for CT-guided transthoracic biopsy. (A) Axial CT-image (prone position) in lung window setting showed a cystic airspace lesion with an endophytic solid nodule (white arrow). (B) An 18F-FDG-PET was previously performed for further evaluation and showed a high uptake in the nodule/solid part of the cystic airspace lesion. Histopathologic examination showed an infiltrating squamous cell carcinoma. At the time of diagnosis, there was a thin-walled cystic lesion in the right upper lobe, with no signs of a solid component or adjacent nodule (C). First follow-up chest CT 6 months after the initial examination showed a new exophytic solid nodule abutting the cyst wall (D). CT-examination another 3 months later showed (E) despite the short time interval a clear increase in size of the solid component. 18F-FDG-PET at that moment showed—in regard to the small size of the nodule—an intense uptake (F). No definitive diagnosis could be obtained due to the patient’s clinical status. The lesion was presumed to be a new lung cancer and the patient was treated with radiotherapy. CT, computed tomography; 18F-FDG-PET, 18F-fluorodeoxyglucose positron emission tomography.

Histopathology and mutational analysis

Most studies revealed adenocarcinoma as being the predominant histological type in lung cancers associated with cystic airspaces with up to 80% and 88% in the largest studies (by Fintelmann and Farooqi) (19,22). Data on different subtypes of adenocarcinoma is scarce: in the study by Fintelmann, 6 out of 21 cases presented with lepidic growth of adenocarcinoma (19). In the series of Guo, three patients with adenocarinoma (3/11) presented with adenocarcinoma in situ (AIS) and 2 (2/11) with minimally invasive adenocarcinoma (MIA) (20). Second most common is squamous cell carcinoma. Other tumor types have also been reported (Table 1). Data on mutational analysis is limited. Guo et al. found an epidermal growth factor receptor (EGFR) mutation in 3 out of 8 patients from Asian origin. Two patients (2/3) had an EGFR exon 19 deletion, 1 an exon 21 mutation (L858R). One patient developed a T790M mutation. The study by Fintelmann is the largest to give insight in mutational analysis: KRAS mutations were found as being the predominant alterations. With an occurrence of 54% of all tumors and 64% of adenocarcinoma this is higher than one might expect in a non-small cell lung cancer (NSCLC) tumor population without cystic airspace morphology (Table 1) (19).

A recent study by Toyokawa et al. investigated the occurrence of programmed death-ligand 1 (PD-L1) expression in “emphysematous bullae-associated lung adenocarcinomas”: 58% of ‘cancer adjoining bulla’ cases in this study of 369 patients showed expression of PD-L1 (cut-off value set at 5%). This frequency was higher than found in the group of only ‘emphysematous bulla related lung adenocarcinomas’ (44.4%) and the group of adenocarcinomas not related to any emphysematous changes (11.8–12.9%) (25). The high incidence in this study of ‘cancer adjoining cystic airspaces’ (50/369–13.5%) makes it unclear to what amount these cases resemble the same entity as lung cancer associated with cystic airspace in other studies. Although data is limited, findings may indicate that molecular profiling is mandatory in patients presenting on CT-imaging as lung cancer associated with cystic airspaces.


CT-findings and classification

As previously mentioned, the term ‘Lung cancers associated with cystic airspaces’ represents a morphologically heterogeneous group of lesions in which a primary lung cancer manifests on CT with a ‘cystic’ component or ‘cystic airspace(s)’. In 2006 Maki et al. were the first to describe a classification system for lung cancers associated with cystic airspaces (26). This system was later modified by Mascalchi and recently by Fintelmann and colleagues (Figure 4). Mascalchi et al. describe a classification system with four morphologic subtypes (Figure 4A) (21). In Type I there is a nodule abutting the cyst wall (Figures 1A,2D,3E,5). In Type II, the nodule also arises from the cyst wall but projects in the lumen of the cyst (Figure 3A). In Type III there is a soft tissue density extending along the wall of the cystic airspace or more diffuse wall thickening (Figure 6). In type IV, the lesion has a more ‘multicystic’ aspect with areas of consolidation interspersed with cystic areas (Figure 7). Based on the initial scheme of Mascalchi, Fintelmann and colleagues recently developed a new classification system with a number, uppercase and lowercase letter (Figure 4B). A number is given for the airspace morphology: “0” in case of a thin-walled cyst, number “1” for an endophytic nodule, number “2” for an exophytic nodule and number “3” for a thick-walled cystic airspace. The uppercase letter describes the density/consistency of the lesion: “S” for solid, “NS” for pure ground glass or nonsolid and “PS” for part solid. The 3rd evaluation is that of the cystic airspace (with lowercase letters): “u” for unilocular and “m” for multilocular lesions.

Figure 4 Classification. (A) Illustration of the 4 types of lung cancers associated with cystic airspaces according to the classification system of Mascalchi et al. (21). Type I is an exophytic nodule abutting the cystic airspace. In Type II, the nodule shows an endophytic growth in the cyst wall. In Type III there is (partial) thickening of the cystic airspace and in Type IV the lesion has numerous small cystic airspaces, interspersed with ground glass or consolidation; (B) illustration showing the adapted classification system according to Fintelmann et al. (19) defining 3 characteristics (airspace, consistency and loculation) for each tumor.

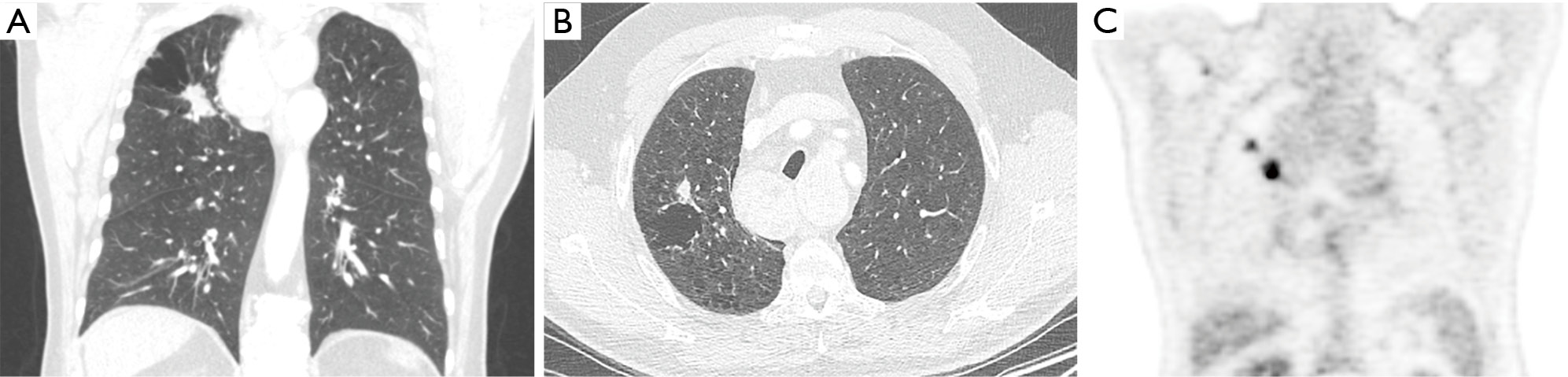

Figure 5 Coronal reformatted (A) and axial (B) CT-images in lung window setting in a 70-year-old man who presented with a large multinodular thyroid goiter show a cystic airspace lesion in the right upper lobe with two solid exophytic nodules, type I lesions according to the classification system of Mascalchi. Both nodules have a spiculated solid morphology with a larger nodule at the inferior aspect (A) and smaller nodule abutting the cranial part of the cystic airspace (B). 18F-FDG-PET reformation in the coronal plane (C) clearly depicts both nodules in the same image, showing a high uptake. Histopathologic examination after robot-assisted right upper lobectomy showed a 3.1 and 1.8 cm poorly differentiated squamous cell carcinoma. 18F-FDG-PET, 18F-fluorodeoxyglucose positron emission tomography.
Figure 6 (A,B) A 53-year-old man with known COPD was referred for further work-up to the pulmonologist for complaints of persistent fatigue and weight loss. Axial chest CT in lung window setting (A) showed a large cystic airspace in the right lower lobe, surrounded by a thick heterogeneous wall of consolidation, with focal areas of asymmetry and a more nodular aspect. The lesion has a type III morphology according to the classification system by Mascalchi. Axial images in mediastinal window setting (B) show large heterogeneous adenopathies in the right hilar region and subcarinal area. Diagnosis of stage IV lung cancer (adenocarcinoma) was made, with bone and adrenal metastases (not shown). (C,D) A 62-year-old woman with previous history of squamous cell carcinoma of the tongue base and stage I adenocarcinoma in the left lower lobe, presented on coronal images during follow-up with a cystic airspace with small rather endophytic nodular component (white arrow) (C). Chest CT study 9 months later (D) shows changes in lesion morphology from type II to predominant type III lesion, according to Mascalchi, with slight decrease of the cystic airspace size and overall increase of the diffuse wall thickening. COPD, chronic obstructive pulmonary disease; CT, computed tomography.
Figure 7 A 77-year-old man presented to the pulmonologist with persistent cough and dyspnea on exertion. Axial CT in lung window setting showed a relatively well-defined heterogeneous area in the right lower lobe with cystic areas interspersed with areas of consolidation (A). The lesion has a type IV morphology according to the classification system of Mascalchi. Since bronchoscopy and broncho-alveolar lavage were normal, patient was referred for follow-up. He presented one year after the initial examination with a chest CT (B) showing a prominent increase in overall lesion size as well as an increase in confluent areas of consolidation. Histopathologic examination after transbronchial biopsies confirmed the presumed malignant etiology, showing adenocarcinoma. (C) Chest CT in a 63-year-old man who presented with persistent cough. Axial CT image in lung window setting shows a cystic airspace composed of multiple small cystic components interspersed with more ‘nodular’ areas of consolidation. The lesion has a type IV morphology according to the classification system by Mascalchi. At the time of diagnosis, adenopathies were present. Histopathologic examination (N2, high right paratracheal lymph nodes) after mediastinoscopy showed poorly differentiated adenocarcinoma. CT, computed tomography.

The value of these classification systems still needs to be defined: currently there is no available data on prognosis and/or survival related to specific categories. These classification systems may however be valuable in future studies and may allow correlation of more data of specific types with molecular profile, evolution, management and prognosis.

All studies show a uniform distribution of tumors throughout the lung, with no predilection for any lobe. Within a lobe, lesions are preferably located in the periphery (Table 1). This is not surprising, since the majority of lesions were adenocarcinoma and these tend to be found in a more peripheral location. In the study by Mascalchi, type III and IV are most common and Type II occurs less frequent. Since morphological findings and changes during follow-up in type I, II and III can be subtle and lesions may become more complex, a CT protocol with thin-section images is advised. Chest CT scans should be reconstructed with contiguous thin sections (≤1.5 mm, preferably 1.0 mm). Multiplanar reconstructions in the coronal and sagittal plane can be recommended to better delineate the relationship between the cystic and non-cystic part of the tumor and to better characterize the lesion. Archiving of thin-section CT-images is mandatory for accurate follow-up. Furthermore, access to previous imaging studies can be of utmost importance for correct (early) diagnosis.


18F-fluorodeoxyglucose positron emission tomography (18F-FDG-PET) imaging

There is only limited data concerning PET-findings. In 70% of patients in the study by Fintelmann, 18F-FDG-PET was available. In the majority of lesions, uptake was noted both in the wall and in a mural nodule. Regarding the mural nodule, uptake was moderate in 4 cases and marked in 12 cases. In 2 cases the wall showed moderate uptake and in 11 cases marked. Mural nodules <8 mm did not show FDG-uptake. Wall thickening without mural nodule only showed uptake in cases with a solid component of more than 8 mm (19). The study of Mascalchi showed marked uptake in the majority of cases. Cases in the study by Mascalchi that did not show uptake on PET, were all adenocarcinoma, with predominant Type I and II morphology. Cases with marked uptake were type III and IV lesions (21).

Whereas PET-CT (Figures 1B,3A,3F,5C) plays an important role in the diagnostic work-up of suspicious pulmonary nodules and lung cancer staging, its role in diagnosis and management of cancers associated with cystic airspaces is less evident. Cystic lesions with a thin wall and small mural nodule, may not show uptake. In Mascalchi Type III and IV lesions, the uptake may be altered by the cystic changes interspersed with the areas of consolidation. As discussed, the majority of histological types associated with this entity are adenocarcinoma. Depending on the amount of lepidic growth and/or ground glass component on imaging, uptake on PET may be reduced and even absent (27-29). Correlation of findings on PET with morphology on CT is crucial in lesions with associated cystic airspace(s): absence of uptake does not rule out a tumor. On the contrary, in a lesion showing uptake, a benign etiology (infectious, inflammatory) should also be taken into account.


Natural evolution and prognosis

The evolution of the cystic airspace is variable: it may stay unchanged, increase or decrease in size and the type of lesion may change over time (Table 1). Of the 26 cases from the International Early Lung Cancer Action Program (I-ELCAP) study by Farooqi et al., half of them (13/26) were detected at baseline and the other half during annual follow-up. This finding may reflect a relatively aggressive nature. Cancers diagnosed during subsequent annual repeat screening showed wall thickening and development of a mural nodule, following a relatively uniform thin wall on the baseline study. The group of patients with a nodular component of the tumor on baseline scanning, showed a greater degree of wall thickening. This might also reflect a more aggressive growth pattern (22). In the study by Mascalchi et al., in the majority of patients the wall of the cystic airspace was initially thin becoming thicker over time.

The increase in tumor diameter resulted in decreased size of the cystic airspace component in most cases, giving rise to purely solid lesions with no residual cystic airspace in 5 out of 24 cases (21). It is therefore impossible to estimate the number of tumors that start as a lung cancer with cystic airspace, in particular in these cases where a solid tumor is observed at the time of diagnosis and no previous imaging is available (Figures 8,9). As some cystic airspaces appeared in a previously normal lung, the presence of a new cyst or cystlike lesions warrant attention and follow-up (19).

Figure 8 Imaging findings in a 72-year-old man with an extensive oncological medical history of mouth floor carcinoma (with recurrence), vocal cord carcinoma, left lower lobe squamous cell carcinoma and esophageal carcinoma 5 to 10 years before the current examination. During follow-up CT (A) showed a well-defined solid nodule in the right lower lobe with lobulation, spiculation and pleural retraction. 18F-FDG-PET showed very high uptake and diagnosis of squamous cell carcinoma was made after transthoracic CT-guided biopsy. Comparison with a low-dose CT (B) (from associated PET-study) from 3 months earlier showed that despite the very short time interval, there was absolutely no sign of any previous nodule or consolidation. In the area of the tumor, there was a cyst-like lesion with discrete wall thickening. The cystic lesion was also visible on an older cardiac CT study (5 months before image B) but without any discernible wall (C). An old study from 5 years earlier at the same level, could not reveal any cystic changes (D). CT, computed tomography; 18F-FDG-PET, 18F-fluorodeoxyglucose positron emission tomography.
Figure 9 A 76-year-old man was diagnosed with stage IIIB adenocarcinoma with large lobulated solid mass in the right upper lobe (A). Comparison with an old chest CT-study from 3 years earlier (B) showed a cystic airspace interspersed with small areas of ground glass, in the same region as the tumor on the current examination. At that time, these findings were not interpreted as ‘possibly malignant’, probably since there were extensive areas of consolidation and ground glass (not shown) in the right lower lobe. Findings were presumed to have an infective cause. CT, computed tomography.

The risk of a cyst developing into a lung cancer or being the precursor of a lung cancer is still unknown. Data on this subject is scarce. Araki et al. investigated the incidence and natural course of pulmonary cysts in a cohort of participants of the Framingham Heart Study (30). Pulmonary cysts (not associated with emphysema) were found in 7.6% of the selected group, increasing with age: 4.9% at 40–49 years to 12.9% in participants 80 or older. Most of the cysts remained unchanged during longitudinal follow-up, some increased slightly in size. They do not describe any case associated with lung cancer formation. Guo et al. described a series of 321 patients undergoing surgery for ‘cystic’ lung disease, with 4.6% (15 cases) of these patients with cystic lung changes having lung cancer.

There is no prospective data on prognosis and survival. As one might expect from a screening setting, Farooqi et al. found 21 out of 26 cases being stage I (20 cases IA and 1 case IB), according to TNM7. Two cases were stage IIA and 3 cases stage IIIA but no stage IV was encountered (22). The studies with predominantly non-screen setting showed cases in different stages, mostly stage I but also including stage IV (Table 1). The retrospective study by Kaneda et al. on 19 patients who were surgically treated between 1998 and 2008 for ‘primary lung cancer adjoining pulmonary bulla’, showed a significantly worse survival curve in this small group of patients. In contrary to most studies, only 10.5% of cases were adenocarcinoma, the majority were squamous cell carcinoma (47.4%), with the others being large cell carcinoma, adenosquamous carcinoma and other histological types (42.1%) (18). From the 15 surgical patients of Guo et al. 13 were still alive at the end of the study, 2 patients (one stage IIIB and one stage IV) had died. Median follow-up period was 19.8 months (range, 3–38 months) (20). Fintelmann et al. suggested a negative effect on overall survival of this tumor type, related to the high number of cases with associated KRAS mutations. Two years after diagnosis, 41% of patients (12/29) in his series had died (19).


Differential diagnosis and pitfalls

Diagnosis of lung cancer associated with cystic airspaces can be challenging. Numerous benign causes may mimic the different types (Figure 10). A nodular solid morphology may point to a malignancy (irrespective of the associated cystic airspace), but type I and type IV lesions according to the classification of Mascalchi, may be prone to misinterpretation and delayed diagnosis. Imaging and clinical findings that allow discrimination between lesions with ‘a high likelihood of malignancy’ or ‘probably benign lesion’ are growth, medical history and clinical findings. Infection, inflammation and granulomatous diseases can all present with cyst-like or cavitated morphology with associated solid component or consolidation (Figure 10C) (31,32). In particular fungal disease with mycetoma formation in a previous thin walled cavitation or cystic airspace can mimic type II lesions (Figure 10D). Associated parenchymal findings such as nodules (with or without cavitation), consolidations, …may be more indicative of an infectious cause, rather than indicating a high risk of malignancy. Lung cancer associated with cystic airspaces can present with synchronous or metachronous lesions (as discussed), but this is rather unusual: so, multiplicity of lesions should point to a benign cause rather than malignancy. When numerous lesions are present, in particular with Mascalchi type III morphology, one might primarily consider cavitary lung disease with diffuse involvement, rather than multiple cystic airspace tumors (32). In case of a limited number of cystic airspace lesions, careful search for associated solid and/or subsolid nodules may indicate the possibility of malignant etiology (Figure 2). The role of 18F-FDG-PET to differentiate between benign and malignant cystic airspace lesions is very limited, since infectious (including fungal) diseases, inflammatory abnormalities and granulomatous diseases can also show high uptake (33,34).

Figure 10 Mimickers of lung cancer associated with cystic airspaces. (A) A 73-year-old man with a previous history of laryngeal squamous cell carcinoma presented on CT with a persistent large cystic lesion in the left upper lobe. The lesion showed an overall thin wall with some focal asymmetries and nodular components. Lobectomy was performed in acute setting of massive hemoptysis. Histopathologic examination confirmed diagnosis of a bronchogenic cyst with no signs of malignancy; (B) axial CT-image in lung window setting in a 52-year-old woman with previous history of massive pulmonary embolism showing an ill-defined area of consolidation with central cystic airspace. Comparison with older CT-imaging studies confirmed that this was a large involuting pulmonary infarction; (C) a 69-year-old woman presented to the thoracic surgeon with a malignant nodule (not shown) in the right upper lobe. Axial CT-image showed in the same lobe a more nodular, relatively well-defined area of consolidation with confluent cystic airspaces. Histopathologic examination after right upper lobe lobectomy showed no signs of malignancy but diagnosis of fungal infection, aspergilloma; (D) a 62-year-old man with no previous medical history presented with hemoptysis. Axial CT showed an ill-defined spiculated area of consolidation in the right upper lobe with central cystic airspace and small endophytic mural nodule. Histopathologic examination after lobectomy showed no signs of malignancy, but a cavitated lesion with inflammatory granulation tissue and a central small lung ball resulting from infection by Candida. CT, computed tomography.

Time and evolution are crucial parameters for assessment. Lesions that persist over time or under therapy are less likely to be infection and close monitoring in these cases is warranted (Figure 7A,B). Previous imaging studies may indicate underlying cavitary or cystic disease, such as old tuberculosis cavern, pulmonary infarct sequelae, congenital cystic disease. Clinical status and previous medical history are important for management. Acute onset and illness in combination with abnormalities on imaging, may be more indicative of an infective cause. On the contrary, absence of acute illness and no significant previous medical history, may indicate that the cystic airspace lesion is likely to be malignant. Bullous lung disease and emphysematous changes make (early) diagnosis even more challenging, since these conditions predispose to both infection and malignancy (Figure 11) (31,32,35). Furthermore, underlying lung disease such as interstitial pneumonias or fibrotic lung disease can masquerade the presence of lung cancer, in particular when appearance is rather atypical (Figure 12) (36). Early cancer diagnosis in areas of distorted parenchyma is challenging (37,38). Correlation with clinical findings, comparison with previous CT studies and close monitoring are crucial in these cases.

Figure 11 A 79-year-old man with persistent cough was referred to the radiology department for chest CT-imaging. Axial image in lung window setting at the lung base shows extensive emphysema with confluent areas of consolidation in the right lower lobe. Due to the underlying emphysematous changes, the superimposed consolidation has a honeycombing-like appearance and some areas have a more nodular aspect. Since the patient also had fever, findings were considered to be infectious. Follow-up was advised and showed involution of the consolidation. Correlation with clinical findings and close monitoring of evolution is mandatory in these cases. CT, computed tomography.
Figure 12 A 74-year-old man with history of COPD presented to the pulmonologist with recurrent episodes of infection. Chest CT (A) showed extensive emphysematous changes in both lungs, with more prominent bullous changes or cystic airspace in the subpleural region of the left lower lobe with associated bandlike consolidation. Since this finding did not significantly changed during follow-up (no increase, but also no decrease) and bronchoscopy and BAL showed no abnormalities, further work-up was done. 18F-FDG-PET (B) showed an intense uptake in the consolidation. In combination with the evolution, a malignant cause was suggested. Histopathologic examination after surgery, revealed an invasive adenocarcinoma with areas of lepidic growth. COPD, chronic obstructive pulmonary disease; CT, computed tomography; BAL, bronchoalveolar lavage; 18F-FDG-PET, 18F-fluorodeoxyglucose positron emission tomography.

Staging, management and screening

Whereas the majority of early lung cancers present as nodules, there is a wide variety of findings that represent early lung cancers, including lung cancers associated with cystic airspaces. The first study to discuss this entity in the era of lung cancer screening was the study by Farooqi et al. All lung cancer cases from the I-ELCAP lung cancer screening study were reviewed (22). On a total of 706 lung cancers (595 from baseline and 111 from annual screening), 26 cancers were identified as abutting the wall of a cystic airspace, comprising 3.7% of cancer cases. A retrospective study by Scholten et al. on the CT characteristics of interval and post-screen carcinomas in the Dutch-Belgian Lung Cancer Screening Trial (NELSON) showed that 22.7% (5/22) of missed cases presented as “a bulla with thickening of the wall”, corresponding to lung cancer associated with cystic airspaces (39).

Current lung nodule management guidelines, such as those from the British Thoracic Society and Fleischner Society, provide guidance for solid and subsolid nodules, but not for these tumors with cystic airspace (40,41). The current version of the Lung Imaging Reporting and Data System (Lung-RADS) has the possibility to upgrade lesions that have a suspicious morphology to category 4X lesions, but provides no specific recommendations regarding this entity (42). Despite their peculiar and unusual morphology on imaging, these lesions are staged according to the current TNM-staging 8th edition. CT-measurement on lesions (in particular Type IV according to Mascalchi or multilocular type according to Fintelmann) is—more than in other lung cancers—prone to variability. The cystic or non-solid component makes volumetric measurement challenging, and exophytic or endophytic components are often relatively small. In case of Mascalchi Type I and II lesions, measuring the total tumor size may overestimate the total tumor burden, since the largest part of the tumor contains air. Analogous to the new TNM classification for subsolid nodules which takes only in account the solid or invasive component for staging (43), one might consider a similar ‘adapted’ staging system for cystic airspace tumors, taking only the real tumorpart into account and not the entire lesion (including the—sometimes large—cystic airspace). Further research in this field is needed. While the large cystic component is clearly visible on CT, this may not always be the case on resection specimens. Since cystic lesions can be small and changes subtle, volumetric CT imaging with careful evaluation of the cystic airspace wall on thin slices, is advised. It remains unclear to what extent low-dose imaging may alter the detection of subtle findings and minimal changes in evolution.


Conclusions

Knowledge of the uncommon lung cancer manifestation, ‘lung cancer associated with cystic airspaces’, by all specialties involved in pulmonology and thoracic oncology is mandatory for recognition and early diagnosis. With the increased use of CT and emerging role of lung cancer screening, it is not unlikely that these tumors will be more frequently encountered in the future. Special attention should be made on CT to focal or diffuse wall thickening and consolidation or ground glass abutting or interspersed with cystic airspaces. New cystic lesions also merit attention and close surveillance is warranted in these cases.

A clear definition and uniform nomenclature for this specific lung cancer entity will be essential for future studies, since currently this group of lesions is heterogeneous, both on imaging and histopathology. Although the rarity of lung cancer associated with cystic airspaces will hamper larger studies, more data is needed to confirm current knowledge, to increase understanding of pathogenesis, to develop specific guidelines for follow-up, to possibly adapt the staging system and to give more insight in survival. In this respect, future lung cancer screening might fulfill part of this role by recognition and dedicated registration of this uncommon manifestation of primary lung cancer.
