Phenotypic and genotypic characterization of levofloxacin- and moxifloxacin-resistant Mycobacterium tuberculosis clinical isolates in southern China
Original Article

Phenotypic and genotypic characterization of levofloxacin- and moxifloxacin-resistant Mycobacterium tuberculosis clinical isolates in southern China

H. M. Adnan Hameed1,2#, Yaoju Tan3#, Md Mahmudul Islam1,2, Lingmin Guo1,2, Chiranjibi Chhotaray1,2, Shuai Wang1,2, Zhiyong Liu1, Yamin Gao1,2, Shouyong Tan3, Wing Wai Yew4, Nanshan Zhong5, Jianxiong Liu3, Tianyu Zhang1,2,5

1State Key Laboratory of Respiratory Disease, Guangzhou Institutes of Biomedicine and Health (GIBH), Chinese Academy of Sciences (CAS), Guangzhou 510530, China; 2University of Chinese Academy of Sciences (UCAS), Beijing 100049, China; 3State Key Laboratory of Respiratory Disease, Guangzhou Chest Hospital, Guangzhou 510095, China; 4Stanley Ho Centre for Emerging Infectious Diseases, The Chinese University of Hong Kong, Hong Kong, China; 5State Key Laboratory of Respiratory Disease, National Clinical Research Center for Respiratory Disease, The First Affiliated Hospital of Guangzhou Medical University, Guangzhou 510182, China

Contributions: (I) Conception and design: HMA Hameed, Y Tan, J Liu, N Zhong, T Zhang; (II) Administrative support: HMA Hameed, MM Islam, C Chhotaray, S Wang, T Zhang; (III) Provision of study materials or patients: T Zhang, Y Tan, S Tan, J Liu; (IV) Collection and assembly of data: HMA Hameed, L Guo, Z Liu, Y Gao; (V) Data analysis and interpretation: HMA Hameed, WW Yew, N Zhong, Y Tan, T Zhang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Tianyu Zhang, PhD, PI. Guangzhou Institutes of Biomedicine and Health (GIBH), Chinese Academy of Sciences (CAS), Room A132, 190 Kaiyuan Ave, Science Park, Huangpu District, Guangzhou 510530, China. Email: zhang_tianyu@gibh.ac.cn; Jianxiong Liu. Guangzhou Chest Hospital, 62 Hengzhigang Road, Yuexiu District, Guangzhou 510095, China. Email: ljxer64@qq.com.

Background: Levofloxacin (LVX) and Moxifloxacin (MXF) are the cornerstones for treatment of multidrug-resistant tuberculosis (MDR-TB). China is one of the highest MDR- and fluoroquinolones (FQ)-resistant TB burdens countries. DNA gyrase encoded by gyr genes is the main target of FQ in Mycobacterium tuberculosis (MTB). The prevalence and molecular characterization of LVX- and MXF-resistant MTB strains from southern China were examined in this study.

Methods: Drug susceptibility testing (DST) of 400 MTB clinical isolates was evaluated by proportion method on Löwenstein-Jensen (LJ) medium against ten drugs. The sequencing of entire gyrA and gyrB genes and multiplex PCR were performed to distinguish the prevalence of mutant types in Beijing and non-Beijing genotypes.

Results: Three hundred and twenty-one out of four hundred (80.25%) drug-resistant isolates (resistant > one drug) were categorized as 83/321 (25.80%) MDR, 174/321 (54.20%) pre-XDR and 64/321 (19.93%) XDR-MTB. Overall, 303/400 (75.75%) LVX- and 292/400 (73.00%) MXF-resistant (R) MTB strains were identified. Two hundred seventy-one out of three hundred and three (89.43%) resistant strains carried mutations in gyrA and 91/303 (30.03%) in gyrB. Interestingly, 18 novel mutations were detected in gyrA and gyrB genes. Mutations at (A90, D94) and (T500, G510, G512) frequently existed in QRDR(s) of gyrA and gyrB respectively in 286/400 (71.50%) LVXRMXFR strains. The novel mutations in- and out-side the QRDR of gyrA (L105R, A126E, M127K, D151T, V165A) and gyrB (D461H, N499S, G520A) increased the sensitivity and consistency of genotypic tests. Notably, 25 LVXRMXFR strains were found with unknown resistance mechanisms.

Conclusions: Mutations in QRDR(s) were concomitantly associated with Beijing and non-Beijing genotypes. The prevalence of resistance and cross-resistance between LVX and MXF in MTB isolates from southern China was immensely higher than other countries. Our valuable findings provide the substantial implications to improve the reliability of genotypic diagnostic tests relying on potential resistance conferring mutations in entire gyr genes.

Keywords: Mycobacterium tuberculosis (MTB); levofloxacin (LVX); moxifloxacin (MXF); cross-resistance; susceptibility testing; novel mutations


Submitted May 02, 2019. Accepted for publication Oct 21, 2019.

doi: 10.21037/jtd.2019.11.03


Introduction

Tuberculosis (TB) is a ninth major cause of morbidity and mortality around the globe that is ranked higher than HIV. Among the 10 million TB cases in 2017, an estimated 558,000 people developed resistance to rifampicin (the most effective first-line drug), of which 82% had multidrug-resistant tuberculosis (MDR-TB) (1). Fluoroquinolones (FQ), the broad-spectrum antimicrobial agents with bactericidal activity against Mycobacterium tuberculosis (MTB) are used as second-line drugs (2). Currently, the third- and fourth-generation FQ [levofloxacin (LVX) and moxifloxacin (MXF)] showing high in vitro and in vivo activities are extensively used for the treatment of MDR-TB (defined as resistant to at least isoniazid and rifampicin) (2-4).

China has around 22% contribution to the global burden of MDR-TB and the highest prevalence of FQ-resistant MTB (5). This serious epidemic of drug-resistant TB is associated with poor treatment outcome in MDR-TB and extensive practice of FQ for the treatment of undiagnosed respiratory bacterial infections (5,6), which further cause the emergence of pre-extensively drug-resistant (pre-XDR) and extensively drug-resistant (XDR) TB. Pre-XDR-TB is defined as MDR-TB associated with resistance to FQ or a second-line injectable (e.g., kanamycin, amikacin, or capreomycin), but not both while XDR-TB is defined as MDR-TB with additional resistance to any FQ and a second-line injectable drug (7). The earlier reports from different regions of China showed the various proportions of XDR among MDR-TB; 6.28% in Beijing (8), 12.6% in Shanghai (9), 12.8% in Xinjiang (10), 20% in Shandong province (11).

In line with older FQ agents, the two new agents (LVX and MXF) inhibit DNA gyrase (a type II topoisomerase composed of α and β subunits), restricting the cell’s capacity for DNA replication and transcription (12,13). Mutations in gyrA and gyrB genes, particularly in the quinolone resistance-determining region (QRDR) of gyrA (codons 74 to 113) and gyrB (codons 500 to 540), are the main reason of FQ resistance in MTB (14). The substitutions in these two genes alter the structure of the quinolone-binding pocket (QBP) and may widely cause the cross-resistance among FQ. GyrA mainly involves in breaking and reuniting of DNA, whereas GyrB plays a role in ATPase activity (15). Generally, gyrA is considered as the most promising target of FQ and most of potential inhibitors for TB are developed against this target.

Numerous molecular-based diagnostic methods to detect gyrA and gyrB mutations in QRDR have been developed, but the sensitivity for predicting the prevalence of phenotypic FQ resistance is highly inconsistent, ranging from 80.5% in Shanghai (16), 89.7% in Beijing (17), 87.5% in France (18), 90.6% in Germany (19) and 75.6% was in Vietnam (20). Most commonly observed resistance conferring mutations in gyrA are A90V, S91P, and D94 (A, N, G, H, Y) while the mutation G88C is rarely detected (4,21). Similarly, R485 (H, C), S486F, D495N, T500 (A, H, N), G509A, N533T, N538 (T, D), T539P, E540 (V, D) amino acid substitutions have been frequently noticed in the gyrB gene (22). However, ~60% of FQ-resistant MTB isolates without known mutations in QRDR of gyrA and gyrB compromises the sensitivity and specificity (2,12). Although LVX and MXF are used in treating XDR-TB patients (23), but their roles are not fully certain due to bacillary baseline and cross-resistance against the FQ (24).

In addition, most of studies infrequently report the cumulative variances in the molecular-based test performance and cross-resistance conflicting the sensitivity and specificity across the new generation FQ agents (25-27). To improve the accuracy of molecular diagnosis for precise treatment of TB patients, there is an urgent need of detailed analyses assessing the entire open reading frames of the gyr genes for clinically relevant readout to accumulate the persuasive evidence that various mutations interaction in/out-side the QRDR can significantly affect the independent or cross-resistance between LVX and MXF in MTB clinical strains. The current study aimed to investigate the prevalence of genetic mutations in entire gyr genes and their association with independent or cross-resistance to LVX and MXF in MTB clinical strains from southern China.


Methods

Ethical Statement

The current study was conducted in accordance with WHO guidelines and approved by the Ethics Committee of Guangzhou Chest Hospital (GZXK-2016-015).

Collection of MTB clinical isolates

In this study, 400 MTB clinical isolates (resistant to ≥1 or more drug) were collected during 2016–2018 from TB patients at Guangzhou Chest Hospital, The Central Hospital of Southern China for TB. The demographic data were obtained from the electronical medical record and the species were identified using a commercial MPB64 monoclonal antibody assay (Genesis, Hangzhou, China) (28). MTB wild-type reference strain (H37Rv ATCC27294T319) was used as a control in this study.

Drug susceptibility testing (DST)

The DST of 400 MTB clinical strains was performed in line with WHO guidelines using a proportion method on Löwenstein-Jensen (LJ) medium against 10 anti-TB drugs with the following critical concentrations (µg/mL); isoniazid 0.2, rifampicin 40.0, streptomycin 4.0, ethambutol 2.0, MXF 1.0, LVX 2.0, amikacin 30.0, rifabutin 20.0, prothionamide 40.0 and para-aminosalicylic acid 1.0 (29-32). The serially diluted bacterial suspension of MTB strains were inoculated onto LJ slants with and without drugs and incubated at 37 °C for 42 days to read up the results. A strain was considered resistant to a tested drug when MTB growth rate is ≥1% compared with the drug-free control (29,32).

gyrA and gyrB genes amplification and sequencing analysis

DNA extracts were prepared from pure and freshly grown MTB colonies as previously described (33). A loopful of MTB colonies was suspended into 500 µL of Tris-EDTA buffer (10 mM Tris-HCl, 1 mM EDTA, pH 8.0) and heated up to 80 °C for 20 minutes. Finally, the crude DNA was used as a template for PCR amplification. The entire open reading frames of gyrA (product size =2,849 bp) and gyrB (product size =2,336 bp) including their (≥170 bp) 5'upstream region to (≥170 bp) 3'downstream region were amplified in 400 MTB clinical strains using the newly designed primers in this study (gyrAF: 5'–TGCGTCAAGTGACGCTGGAC–3', gyrAR: 5'-ACGGTCGACCAAGCCATCCG-3'), (gyrBF: 5'-TATGCCGGACGTCGGGACGC-3', gyrBR: 5'-TCATCGCATAGTCGATGTAG-3'). PCR products were observed on 0.7% to 1.0% agarose gels, purified by PCR purification kit (Qiagen, Hilden, Germany) and sent to BGI (Guangzhou, China) for Sanger sequencing. The sequencing data were aligned with the standard MTB H37Rv reference sequence (GenBank accession number NC_000962) using CLC Sequence Viewer; version 7.7.1 (Qiagen).

PCR based detection of Beijing and non-Beijing genotypes

PCR based detection method was used to differentiate Beijing genotype and non-Beijing genotype MTB strains as previously described (34,35), a region spanning genes Rv2816 to Rv2819 and part of Rv2820 is missing in all Beijing genotype of MTB strains. So, the primer set of BJ-F: 5'-ACCGAGCTGATCAAACCCG-3' and BJ-R: 5'-ATGGCACGGCCGACCTGAATGAACC-3' was used to amplify 239-bp fragment containing region specific part of Rv2819 and part of Rv2820. Whereas, Non-Beijing genotype MTB strains were detected by amplification of 539-bp PCR fragment using primer set of NBJ-F: 5'-GATCGCTTGTTCTCAGTGCAG-3' and NBJ-R: 5'-CGAAGGAGTACCACGTGGAG-3' covering the region specific for Rv2819. The PCR products were observed on 2% agarose gels.

Statistical analysis

Phenotypic drug susceptibility testing was used as the reference for evaluation. Genotypic LVX and MXF resistance was defined as the prevalence of resistance conferring non-synonymous mutations in- and out-side the QRDR of gyrA and gyrB genes. The data was processed statistically to measure the sensitivity, specificity, accuracy, odd ratio and 95% confidence interval (CI) by using MEDCALC® statistical software (URL: https://www.medcalc.org/calc/diagnostic_test.php; https://www.medcalc.org/calc/odds_ratio.php). P<0.05 was considered statistically significant.


Results

Demographic characteristics

Of the 400 studied MTB clinical isolates, 281 (70.25%) were from male patients and 119 (29.75%) were from female patients. Age-wise analysis exhibited that MTB isolates belonged to patients age range of 18–86 years with a mean age of 42.7 years. In addition, majority of TB patients 263/400 (65.75%) listed in this study were retreated whereas 137/400 (34.25%) were registered as new TB cases. The detailed demographic characteristics are explained in Table 1.

Table 1

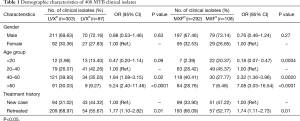

Table 1 Demographic characteristics of 400 MTB clinical isolates
Full table

Drug susceptibility testing outcome

DST of 400 MTB clinical isolates categorized the 321/400 (80.25%) drug-resistant isolates (which have resistance against more than one drug) as 83/321 (25.80%) MDR, 174/321 (54.20%) pre-XDR and 64/321 (19.93%) XDR-MTB strains. While the remaining 79/400 (19.75%) MTB isolates had random or distinct pattern of drug resistance (mono- and poly-resistant strains) (Figure 1A). Of the total isolates, 303/400 (75.75%) LVXR, and 292/400 (73.00%) MXFR MTB isolates were identified in this study (Figure 1B). These isolates were observed with the pattern of 286/400 LVXRMXFR, 17/400 LVXRMXFS, 6/400 LVXSMXFR and 97/400 LVXSMXFS MTB strains (Figure 1C). Overall, in this study MTB isolates were resistant to at least one or more drugs as there was no any isolate was included which was fully susceptible to all tested drugs.

Figure 1 (A) Prevalence of MDR-, pre-XDR- and XDR-TB strains in 400 Mycobacterium tuberculosis clinical isolates; (B) drug susceptibility testing against ten anti-tuberculosis drugs; (C) LVX and MXF resistance pattern in Mycobacterium tuberculosis clinical isolates.

Association of gyrA and gyrB mutations with LVX- and MXF-resistance pattern

Molecular diagnosis was performed for both susceptible and resistant MTB clinical isolates. The mutations identified in gyrA and gyrB genes are summarized in Table 2. Among the 286/400 LVXRMXFR strains, 254/286 (88.81%) strains carried missense mutations in entire gyrA gene including 5 novel mutations and 237/254 (93.30%) of them were found with mutations only in QRDR of gyrA. The mutations A90V, D94N, D94G and D94A were frequently detected in gyrA QRDR. However, the new mutations (A126E, M127K) in MTB strains without QRDR mutations were found to be involved in resistance against both LVX and MXF.

Table 2

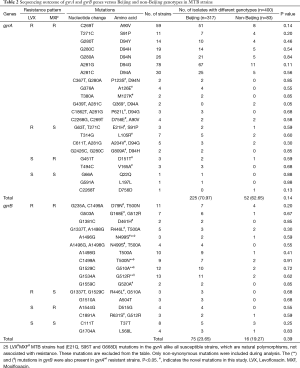

Table 2 Sequencing outcome of gyrA and gyrB genes versus Beijing and non-Beijing genotypes in MTB strains
Full table

Similarly, 78/286 (27.27%) LVXRMXFR MTB strains were identified with missense mutations in gyrB gene in which 71 strains harbored gyrB mutations along with the mutations in gyrA gene, whereas 7 LVXRMXFR strains possessed D461H, N499S, T500N, G510A and G512R mutations only in gyrB gene with gyrAwt. Total 7 novel mutations were detected in gyrB gene in this study. In addition, with other novel non-synonymous mutations in gyrB, the new mutations D461H and N499S were found almost at the QRDR of gyrB which seems to be a very interesting phenomena of resistance in LVXRMXFR MTB strains. gyrB mainly carried missense mutations at codons D79N, T500A, G510A and G512R in LVXRMXFR strains.

Among the 17/400 LVXRMXFS strains, 10/17 (58.82%) strains detected with multiple mutations in- and outside the QRDR of gyrA while 7/17 (41.17%) strains had only a novel mutation at L105R in QRDR. Besides, A204V+D94G mutations frequently existed in gyrA in this pattern of resistant strains. Likewise, 6/17 LVXRMXFS gyrA mutations containing strains were also noticed with a novel mutation R446L accompanied by mutations at A504T and G510A in gyrB gene.

Of the 6/400 LVXSMXFR strains, gyrA carried only novel mutations at D151T and V165A while gyrB showed G512R, D515G and R631S mutations in 7/400 LVXSMXFR strains. Notably, in the current study, broad cross-resistance was noticed between LVX and MXF in 254/286 (88.81%) LVXRMXFR MTB strains by single or multiple mutations in gyrA and/or gyrB gene(s). The non-synonymous mutations in gyrB conferred cross-resistance between LVX and MXF alone or in a combination of gyrA gene, it enlightened the role of gyrB in development of resistance to FQ.

The LVXSMXFS strains had gyrBwt or synonymous mutations (T37T, L568L), while gyrA was found with non-synonymous mutation (E21Q, S95T and G668D) in all strains. Interestingly, overall 18 novel mutations were detected in both genes. Two hundred and forty-four out of two hundred seventy-seven (88.08%) and 59/91 (64.83%) resistant strains harbored mutations only in the QRDRs of gyrA and gyrB respectively. Whereas, 33 strains carried gyrA and 38 strains carried gyrB mutations outside the QRDRs among all FQ-resistant isolates in this study. Compared to the gyrA gene, gyrB had (≤60%) less mutations which strengthen the discernment about gyrA to account as a potential target of FQ in MTB. However, the most interestingly, 25/286 LVXRMXFR MTB strains showed mutations at positions (E21Q, S95T and G668D) in the gyrA which were not associated with resistance. The same mutations were also present in all susceptible strains that indicates the existence of unknown resistance mechanisms in FQR MTB strains.

25 LVXRMXFR MTB strains had (E21Q, S95T and G668D) mutations in the gyrA alike all susceptible strains, which are natural polymorphisms, not associated with resistance. These mutations are excluded from the table. Only non-synonymous mutations were included during analysis. The (**) and (ф) mutations in gyrB were also present in gyrAwt resistant strains. P<0.05. #, indicates the novel mutations in this study. LVX, Levofloxacin. MXF, Moxifloxacin.

Association of the Beijing and non-Beijing genotypes with gyrA and gyrB mutations

The distribution of different mutation types in gyrA and gyrB genes between Beijing and non-Beijing genotypes of MTB isolates were summarized in Table 2. Total 317/400 (79.25%) MTB isolates belonged to the Beijing genotype, while 83/400 (20.75%) were from non-Beijing genotypes. Among the total Beijing genotype strains, 225/317 (70.97%) isolates harbored mutations in gyrA. Fifty-two out of eighty-three (62.65%) non-Beijing genotypes also carried mutations in gyrA. The calculated P value was 0.14 for total gyrA mutations. The three mutations (E21Q, S95T and G668D) in gyrA were found in all MTB isolates of Beijing and non-Beijing genotypes. Moreover, 75/317 (23.65%) MTB isolates with gyrB mutations belonged to Beijing genotype whereas 16/83 (19.27%) were from non-Beijing genotype. The P value was 0.39 for total gyrB mutations. Statistical analysis revealed no significant difference in prevalence of gyrA and gyrB mutations between Beijing and non-Beijing genotypes. In the same way, there was also no significant difference was found in the distribution of the mutant gyrA and gyrB types between Beijing and non-Beijing genotypes.

Evaluation of LVXR and MXFR TB by DNA sequencing

Phenotypic diagnostic veracity was compared with molecular diagnosis. Considering the phenotypic data as a reference, detection of mutation in the QRDR of gyrA for LVXR exhibited the sensitivity 87.46% and specificity 100%, however when the entire gene is evaluated the sensitivity increased up to 89.44% while the specificity remained unchanged. The sensitivity of QRDR mutations in gyrB was 27.06% while the entire gyrB gene showed slightly increased sensitivity of 27.72% with the same specificity 100%. When both genes were evaluated together, the sensitivity and accuracy increased up to 91.75% and 93.75% respectively (Table 3). The sensitivity of gyrA QRDR was 84.93% in MXFR strains but the entire gyrA gene showed the increased sensitivity of 89.04% with consistent specificity of 100%. The sensitivity of gyrB QRDR in MXFR strains was 28.42% but it was increased to 29.11% in entire gyrB gene. The combined evaluation of gyrA and gyrB enhanced the sensitivity to 91.44% with 100% specificity (Table 4). Detection of mutations in gyrA and gyrB to identify cross-resistance in LVXRMXFR strains revealed a total sensitivity of 91.26% and a specificity of 100% (Table 5).

Table 3

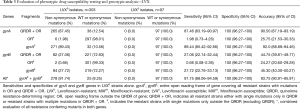

Table 3 Evaluation of phenotypic drug susceptibility testing and genotypic analysis—LVX
Full table
Table 4

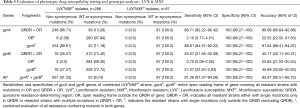

Table 4 Evaluation of phenotypic drug susceptibility testing and genotypic analysis—MXF
Full table

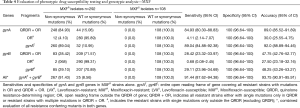

Table 5
Table 5 Evaluation of phenotypic drug susceptibility testing and genotypic analysis—LVX & MXF
Full table

Discussion

FQ have been extensively used in China for more than a decade not only for treatment of MDR-TB but also for numerous bacterial infections. The exploitation of FQ drastically increased the number of FQ-resistant TB patients in China (5). In conformity with this theory, our data revealed a very high prevalence of FQ resistance particularly in southern China. To the best of our knowledge, this study comprises the highest collection of M/pre-X/X-DR MTB clinical isolates 321/400 (80.25%) from southern China. A total of 303/400 (75.75%) LVXR and 292/400 (73.00%) MXFR MTB isolates were identified in this study which were considerably higher than the range of 50–70%, obtained from the studies conducted in Taiwan (2), Morocco (14), China (36), Korea (37) and Belgium (38).

The high prevalence of LVXR and MXFR in pre-XDR and XDR M. tuberculosis isolates strongly underscores the need for more accurate susceptibility testing method to provide the guidance for appropriate MDR-TB regimens (39). DNA gyrase mutations were found to be associated with resistance or cross-resistance to the new generation of quinolones. The prevalence of gyrA mutations in quinolone-resistant clinical isolates varies across the countries, ranging from 50% to 90% (5,40-43). In this study, we found ~90% of prevalence of gyrA mutations among the (271/303) LVXR and (260/292) MXFR strains which is noticeably higher than the studies from Beijing (68%), Shanghai (76%), Russia (83%), Taiwan (50%), Tunisia (50%) and New York (67%) (40,41,44-47).

In our study, 244/278 (87.76%) resistant strains had mutations in QRDR of gyrA with the most frequent mutations occurring at A90V, D94N, D94G and D94A. The mutations at D94 (D94G, D94A, D94N, D94H, D94Y) were the most detected mutations in QRDR. The D94 residue, that uphold the water-magnesium ion bridge with a conserved C3/C4 keto acid moiety of quinolones, plays a significant role to stabilize the quinolone molecule in the QBP, an amino acid substitution at 94 position will aggrandize the deleterious effect of the binding between quinolones and DNA gyrase (48,49). D94 mutations were found to be associated with higher level of phenotypic resistance, as it might be the reason of positive epistasis between D94 mutations and the mutations eliciting rifampin-resistance to develop MDR-TB to XDR-TB (3,24,42,50). In addition, the mutations in gyrA conferred resistance to 254/286 (88.81%) LVXRMXFR, 17 LVXRMXFS and 6 LVXSMXFR MTB strains which indicates the resilient behavior of gyrA mutations in independent or cross-resistance between LVX and MXF.

Several studies have demonstrated that less number of mutations are found in gyrB gene in FQ-resistant MTB strains. We found 91 LVXR and/or MXFR MTB clinical strains with missense mutations in gyrB and 84/91 (92.30%) of them also had mutations in gyrA gene. However, it is interesting to note that 7 LVXRMXFR MTB strains were detected with D461H, N499S, T500N, G510A and G512R mutations in gyrB gene only without any mutation in gyrA. Two of them (D461H and N499S) are newly identified in this study. In agreement with the previous studies, T500A, G510A and G512R mutations were at high-level of mutation rate in gyrB of LVXRMXFR MTB strain (2,5). Furthermore, 78/91 (85.71%) strains with gyrB mutations showed resistance to LVX and MXF similar to earlier reports of cross-resistance between older generation of FQ in MTB (3,4,14,51). The gyrB mutation rate was ≤30% in (84/303) LVXR and (85/292) MXFR strains in our study which was markedly higher than previously published studies from Russia 12.5% (40), Shanghai 15.5% (47) and other parts of China 5.0% (33).

Based on the present data, non-synonymous novel nucleotide substitutions were also detected outside the QRDR(s) of gyrA (A126E, M127K, D151T, V165A) and gyrB (D461H). These novel nucleotide substitutions were found without commonly existed mutations in QRDR(s) which showed their possible involvement in the development of LVX and/or MXF resistance. The repetition of phenotypic and genotypic testing methods in two independent experiments produced the same results in these strains. However, further molecular study will provide the new insight about the role of these novel non-synonymous nucleotide substitutions.

Moreover, the mutations in the QRDR(s) of gyrA and gyrB genes are widely accepted as the key reason for FQ resistance, so, we also identified the novel mutations (L105R) in QRDR(s) of gyrA and (N499S, G520A) in gyrB for the first time. On the other hand, alike previous studies no resistance conferring non-synonymous mutations were detected in gyrB gene in LVXSMXFS strains (52). However, in these strains gyrA gene showed non-synonymous mutations (E21Q, S95T and G668D), but it has been proved that these non-synonymous mutations have no association with FQ resistance and thus considered as nonfunctional polymorphisms (52).

Generally, MTBDRsl (Hain Lifescience, Nehren, Germany) assay, identifies only the most common mutations found in the QRDR of gyrA (16,17). Whereas in our study, compared with the phenotypic data, the sensitivities for identifying LVXR or MXFR strains were detected by genotypic analysis of entire gyrA and gyrB genes. The combined evaluation of novel and commonly existed resistance conferring mutations in entire open reading frames of gyrA and gyrB genes rather than sequencing only QRDR(s) improved the sensitivities up to 91.75% and 91.44% respectively with the 100% specificity which were higher than the sensitivities measured in previous studies from Taiwan: 67.7% (2), Vietnam: 75.6% (20), France: 87% (18) and Beijing: 89.7% (17). The cross-resistance between LVX and MXF demonstrated the sensitivity of 91.26% and specificity of 100%. This study shows the ≥90% concordance between phenotypic and genotypic diagnosis. Our findings enlighten that inclusion of entire open reading frames of gyrA and gyrB in rapid molecular susceptibility testing will facilitate acquiring more accurate and dependable data of FQ resistance in MDR-TB. Total 18 novel non-synonymous mutations (11 gyrA + 7 gyrB) are identified in our study which have never been reported in earlier studies.

Most importantly, 25 LVXRMXFR strains were identified with (E21Q, S95T and G668D) mutations in gyrA accompanied by gyrBwt. These mutations were recognized as natural polymorphisms, not related with FQ resistance (52) which indicates the existence of unknown resistance mechanisms. However, alternative resistance mechanisms including an active drug efflux pump and reduced cell wall permeability to the drug to confer FQ resistance were suggested in previous studies but further molecular analysis will explore the new insights in FQ resistant MTB clinical strains (2,5).

Moreover, in prior studies from Russia, Taiwan, Tunisia and Vietnam, Beijing genotype was considerably found to be associated with FQ resistance (12,40,45). On the contrary, in our large number of MTB clinical isolates from southern China, no statistically significant prevalence of FQ resistance and mutant types were observed specifically bound with Beijing genotype, our findings are in line with previously published studies form China (5,33). The mutations in gyrA and gyrB were concomitantly distributed in Beijing and non-Beijing genotypes. The geographical discrepancy in prevalence of FQ resistant strains might be one of the promising reasons of varied profiles of mutant types and the extensive use of FQ for patients having bacterial infections might be another contributing factor for high emergence of drug resistance among MTB strains from different regions (23).


Conclusions

In conclusion, this is the first report which highlights the rising prevalence of independent and cross-resistance between LVX and MXF, commonly used for treatment of MDR-TB in southern China that is relatively higher than other countries. Genotypic analysis revealed the 18 novel mutations in addition to the highest prevalence rate of A90V, D94N, D94G and D94A mutations in gyrA as well as T500A, G510A and G512R mutations in gyrB in LVXRMXFR MTB strains. Our findings also demonstrated that mutations in QRDR(s) of gyrase genes are the most predominant mechanism accounting for LVXR and MXFR TB. However, the newly identified mutations in- and outside the QRDR of gyrA (L105R, A126E, M127K, D151T, V165A) and gyrB (D461H, N499S, G520A) increased the sensitivity and the consistency of molecular diagnostic tests for rapid and more accurate diagnosis of FQ resistant strains. Mutations located in QRDR(s) were simultaneously associated with Beijing and non-Beijing genotypes. Most importantly, 25 LVXRMXFR MTB strains without any known resistance-conferring mutations in gyrA and gyrB genes indicate the existence of unknown resistance mechanism which should be comprehensively investigated in forthcoming studies to explore the new potential target of FQ in MTB.


Acknowledgments

We thank the UCAS PhD Fellowship Program (to HMA Hameed) and CAS-TWAS President’s PhD Fellowship Program (to MM Islam and C Chhotaray) for international students.

Funding: This work was supported by the National Natural Science Foundation of China (81572037, 81973372, 21920102003), the National Mega-project of China for Main Infectious Diseases (2017ZX10302301-003-002), the PhD. Start-up Fund of the Natural Science Foundation of Guangdong Province, China (2016A030310123), Science and Technology Department of Guangdong Province (2017A020212004, 2019B110233003).


Footnote

Conflicts of Interest: T Zhang received Science and Technology Innovation Leader of Guangdong Province (2016TX03R095). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The current study was conducted in accordance with WHO guidelines and approved by the Ethics Committee of Guangzhou Chest Hospital (GZXK-2016-015).
