Esophageal cancer is one of the most aggressive diseases, and its incidence is rapidly increasing worldwide (1). Both the mortality and morbidity are still high compared with those of other gastrointestinal cancers (2). However, advances in the early detection and multimodal therapies have improved the survival of the patients (3,4). According to a comprehensive registry of esophageal cancer in Japan (5), the 5-year overall survival rate is 55.5%. As the overall survival period after esophagectomy is getting longer, complaints should be surveyed more carefully in order to ensure an adequate quality of life in patients who undergo esophagectomy. In order to reduce the surgical invasiveness and thereby improve the postoperative quality of life, thoracoscopic and/or laparoscopic surgery for esophageal cancer was introduced by Cuschieri et al. in the early 1990s (6). The use of minimally invasive surgery (MIS) can reduce the pain and systemic inflammatory response. Minimally invasive esophagectomy (MIE) can also reduce the duration of the postoperative stay and pain as well as the respiratory complications compared with conventional thoracotomic esophagectomy (7).
However, several drawbacks to MIE have also been recognized. Postoperative hiatal hernia (HH) is a well-known complication after conventional thoracotomic esophagectomy, and MIE promotes its incidence, likely due to the paucity of adhesions in MIS (8-10). While MIE is becoming widely performed, the risk of HH development after MIE has not been well documented.
In this study, we determined the incidence of postoperative HH after MIE and analyzed the risk factors using a prospectively maintained comprehensive surgical database at our institute. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-1335).
All patients who had undergone esophagectomy for esophageal cancer as a part of a three-stage procedure (McKeown esophagectomy) at our institute from April 2009 to December 2015 were reviewed and enrolled in this study. During this period, all patients were treated by MIE. MIE was introduced in April 2009 by a senior surgeon who had had experience treating over 180 cases by MIE at another hospital. This senior surgeon operated on or supervised all patients at our hospital. According to the guideline published by the Japanese Esophageal Society (4,11), patients with clinical stage II or III disease received neoadjuvant chemotherapy (NAC) with a regimen of 5-fluorouracil and cisplatin (FP) or modified docetaxel, cisplatin and 5-fluorouracil (DCF). In addition, patients with suspicious T4 tumors or bulky nodal involvement received preoperative radiation therapy.
Complications accompanying esophagectomy were prospectively checked in all patients during admission and after leaving the hospital. Standard surveillance of the patients, including chest X-ray and computed tomography (CT), was carried out every three to 6 months for at least 5 years. Upper gastrointestinal endoscopy was performed every year. All patients with HH, regardless of symptoms, underwent laparoscopic repair at our hospital.
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). We obtained informed consent from all of the patients enrolled in this study, and this retrospective study was approved by the Institutional Review Board of Saga University Hospital (2017-04-22).
All patients in this study were treated by thoracoscopic or robot-assisted thoracic procedures in the prone position, as described in our previous reports (12-14). The extent of lymph node dissection in the thoracic and abdominal procedures did not differ markedly by stage. In patients whose stomach was available as a conduit, the stomach was mobilized laparoscopically. Preservation of the left inferior phrenic artery was attempted in all patients. The lateral segment of liver was not mobilized. The esophageal hiatus of the diaphragm was enlarged vertically about 2–4 cm at the central tendon in order to pass the gastric conduit smoothly. The excised esophagus and the mobilized stomach were extracted thorough the 3–4 cm mini-laparotomy at the umbilicus. A gastric conduit 4 cm in width was created extracorporeally. The gastric conduit was then pulled up through the posterior mediastinum if possible, and anastomosis was performed at the neck. The organ for reconstruction was then pulled-down transabdominally into the abdomen in order to straighten it and thereby avoid bending of the redundant conduit. Finally, the conduit organ was fixed at the diaphragm with a couple of stitches using absorbable or non-absorbable monofilament sutures to prevent postoperative HH. As described later, some modifications were made to this fixation procedure during the study period.
In patients whose stomach was not available as a conduit due to previous or synchronous gastrectomy, reconstruction of the alimentary tract was performed using the small or large intestine. In such cases, the abdominal procedure was performed by conventional laparotomy. When alimentary reconstruction through the posterior mediastinal route was impossible, the ante-sternal route was adopted. In those cases, the original esophageal hiatus of the diaphragm was closed with suturing.
When digestive organ, except for graft conduit, herniating into thoracic cavity was detected with chest X-ray and/or CT examinations, we diagnosed it as postoperative HH and performed laparoscopic repair surgery for all patients, regardless of symptoms. After pulling-down the herniated organ into abdominal cavity carefully, enlarged esophageal hiatus was tightly closed and graft organ was fixed at diaphragm again using non-absorbable sutures. Moreover, we added colopexy on diaphragm to prevent HH recurrence.
Descriptive statistics were used to characterize various clinical factors. We used the Mann-Whitney U test to compare the averages of continuous variables and the chi-squared test to compare the discrete variables. The threshold for significance was P<0.05. We used the JMP® Pro software program, ver. 12.2.0 (SAS Institute, Cary, NC, USA) for these analyses.
Patients with postoperative HH

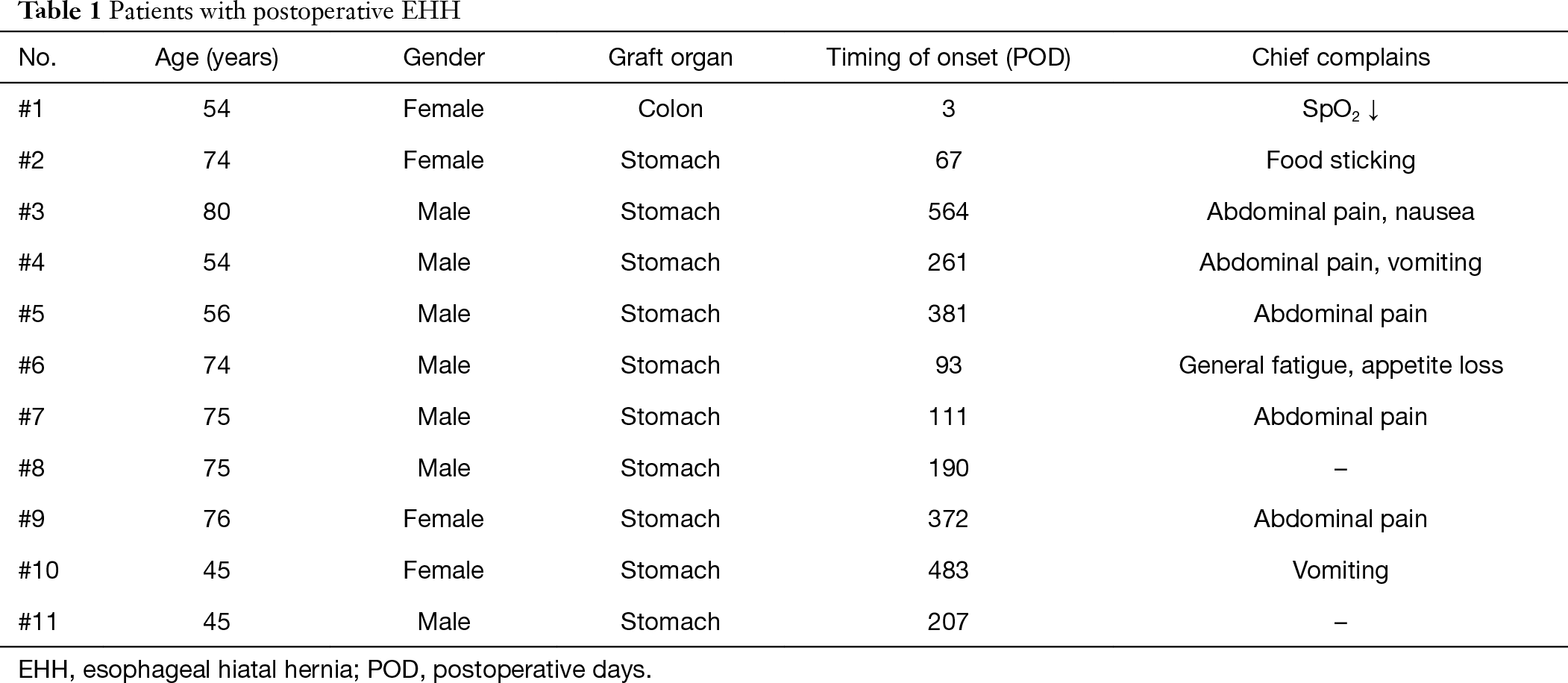

The mean observation period was 34 months (range, 1–86 months), and scheduled examinations were performed in most cases (84%). During the study period, 25 patients died of recurrent diseases, and 9 died of other causes. These patients were censored for the occurrence of postoperative HH in this study. Eleven (9.7%) of the 113 patients enrolled in this study were diagnosed with postoperative HH (7 men and 4 women, Table 1).
The chief complaints and symptoms of postoperative HH varied among the patients. Nine patients experienced some symptoms, such as abdominal pain, while two with no complaints were diagnosed with postoperative HH by regular follow-up CT. All patients who developed HH after esophagectomy needed emergent (n=6) or elective surgeries (n=5) to repair it. The cumulative incidence of HH is shown in Figure 1. Most cases of postoperative HH occurred within 1 year, and none occurred 2 years after surgery. Repair surgery was performed an average of 215 days after esophagectomy (range, 3–564 days). There was no marked difference in the occurrence of postoperative HH between the initial and last half-periods of this study (7.0% vs. 12.5%, P=0.32). One patient had repeated herniorrhaphy due to recurrence of HH at 95 days after surgery to repair the initial HH, 207 days following MIE. He was a carpenter and returned to work, where he worked hard, immediately after both the esophagectomy and the first HH repair surgery.
Regarding the general features of postoperative HH, the colon was herniated into the left thorax along left-side of the gastric conduit through the esophageal hiatus (Figure 2). One patient had both colon and jejunum herniation, and three had only jejunum herniation. Among the patients with postoperative HH, the hiatus was enlarged, and the edge of the enlarged hiatus was covered by smooth membranous tissues like peritoneum or pleura. Interestingly, the sutures used for the fixation of reconstruction organs at the diaphragm were often observed on the graft or diaphragm, but the knots did not become loosened during repair surgery.
Characteristics of patients undergoing thoracoscopic esophagectomy

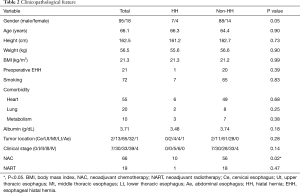

To explore the risk factors of postoperative HH development, we compared the characteristics of the patients with and without postoperative HH (Table 2). The ratio of women was higher in the HH group than in the non-HH group although not to a significant degree (P=0.05). The preoperative body mass index (BMI) was almost the same between the two groups (P=0.99). In 21 patients, sliding esophageal HH was observed before esophagectomy. However, it was not associated with postoperative HH development.
Regarding the nutritional conditions before esophagectomy, the preoperative albumin level was not markedly different between the two groups, and concomitant illness or smoking habit was not related to postoperative HH either. All patients with postoperative HH had clinical stage II or III disease (P=0.14). Sixty-six patients (58.4%) during the study period were administered NAC, and 19 of them (28.8%) received radiation therapy. Regarding NAC, 10 of 11 patients (90.9%) in the HH group received NAC according to the clinical stage, which was significantly more than in the non-HH group (P=0.02). Neoadjuvant radiation therapy was not a significant risk factor for postoperative HH (P=0.47).
About 70% of tumor located in middle thoracic esophagus in the patients with esophageal cancer in this series, and there was not significant difference in the aspect of tumor location between HH and non-HH groups (P=0.28).
Aside from female gender and the presence of NAC, no significant factors were found to be associated with postoperative HH development in univariate analyses of the characteristics of the patients in the present study.
Surgical outcomes of thoracoscopic esophagectomy

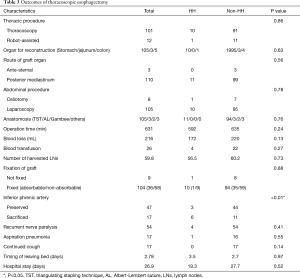

To determine whether or not the surgical outcomes might be related to postoperative HH, we compared several surgical factors between the two groups (Table 3). We used a robot to perform the thoracoscopic procedure in 12 patients (10.6%) during the study period. However, only one patient with robot-assisted surgery developed postoperative HH. Among the 11 patients in the HH group, the graft organ was the stomach in 10 patients and colon in 1 patient, showing no significance. Ten of 11 patients with postoperative HH underwent laparoscopic surgery and 1 patient underwent laparotomy for the abdominal procedure. The ratio of laparoscopic surgery was slightly lower in the HH group (91.0%) than in the non-HH group (93.1%), although laparoscopic surgery was not statistically related to postoperative HH development (P=0.78). The operative time, amount of blood loss, presence of blood transfusion, number of retrieved lymph nodes, timing of leaving bed and length of postoperative hospital stay were not significantly different between the two study groups (Table 3).
The fixation procedure of the conduit organ at the hiatus was historically modulated after noticing the occurrence of postoperative HH. Nine patients (8.0%) had no fixation, 36 (34.6%) had fixation by absorbable sutures, and 68 (65.4%) had fixation by non-absorbable sutures. We initially considered that exact fixation of the graft organ at the esophageal hiatus was crucial for prevention of postoperative HH development, but it was found to be unlikely to be related (P=0.88). We suspected that postoperative complications, especially recurrent nerve palsy, aspiration pneumonia or continuous cough, might contribute to postoperative HH development by drastically increasing the abdominal pressure, but no significant association in these factors was noted between the two groups. Regarding the postoperative nutritional conditions, most patients with esophagectomy had some body weight loss after the surgery. However, the degree of body weight loss showed no association with postoperative HH (P=0.88).
To exclude any interaction among the various factors in relation to development of postoperative HH, we should have performed multivariate logistic regression analysis. However, number of patients enrolled in this study was small to analyze the independent risk factor of HH development.
Previous studies have reported that the incidence of internal hernia, including esophageal HH, is higher in MIS than in conventional procedures (8-10). However, this issue has not been well addressed, as the risk factors of HH development after MIE have been unclear. The present study was based on the completely performed surveillance of patients with esophagectomy. In addition, all patients were treated by thoracoscopic surgery as part of the thoracic procedure during the study period, possibly showing minimal selection bias. This report showed that the cumulative incidence of postoperative HH plateaued at about 10% at 2 years after esophagectomy with 3-stage lymph node dissection for esophageal cancer with MIS, and that the presence of NAC was a risk factor of postoperative HH development.

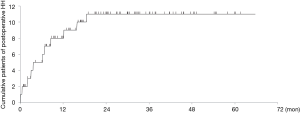

The timing at which postoperative HH occurred varied widely, ranging from 3 to 564 days after MIE. As esophageal cancer still has a high mortality and some patients with esophagectomy may develop recurrence before suffering from postoperative HH, the number of patients with postoperative HH might be underestimated. Previous studies have found that postoperative HH occurred in 0.8–7.9% of patients after conventional esophagectomy. Regarding MIE, a few reports have described the incidence of HH as 4.5–26% (9,10,15). Based on both our present and these previous findings, the incidence of postoperative HH after MIE seems to be higher than that after conventional esophagectomy. While the reason for this was not addressed in the present study due to its comparative nature, we speculate that the minimal adhesion that occurs after MIS may be responsible (16-18). Furthermore, among the 11 patients with postoperative HH in our series, most (n=9) complained of abdominal pain resulting from the incarceration or strangulation of the intestine, while 2 did not have any symptoms when HH was diagnosed (Table 1). These findings support the careful follow-up of patients for at least 2 years after esophagectomy.
We investigated the risk factors for postoperative HH development from two aspects: based on patient characteristics and based on surgical factors. First, we determined the patient characteristics. Previous reports have suggested that the pressure gap between the chest and abdominal cavity might cause postoperative HH development (9,19), and several factors may be responsible for increasing this pressure gap. Ganeshan et al. reported that female gender and a low BMI were risk factors of HH development after esophagectomy (15). Indeed, in the present study, we observed a tendency toward a higher female-to-male ratio in the HH group, although it was not significant and that reason was not clear. We also encountered an interesting patient with repeated postoperative HH who was a carpenter by trade. He returned to his full work load immediately after both esophagectomy and the first hernia repair, which drastically increased his abdominal pressure, potentially leading to HH recurrence. However, the BMI was not associated with postoperative HH in our series. We therefore consider that the pressure gap between the chest and abdominal cavity alone does not account for postoperative HH development. Some concomitant disease might contribute to HH development, but our univariate analyses did not suggest that any particular disease was a significant risk factor in HH development after MIE.
We focused on NAC in the present study. More than 90% of esophageal cancer is squamous cell carcinoma in Japan (20), and chemotherapy and radiotherapy have proven to be effective for treating esophageal cancer (4,21). NAC has been shown to extend the overall survival of patients with esophageal cancer and is recommended for patients with lymph node metastases at the diagnosis of esophageal cancer (4). According to the Japanese Guidelines for Diagnosis and Treatment of Carcinoma of the Esophagus, edited by the Japanese Esophageal Society, we generally administer NAC for patients with cStage II and III esophageal cancer, except for the patients without agreement for NAC. However, NAC is known to cause a high incidence of postoperative complications. Benjamin et al. suggested that NAC might be a risk factor of postoperative HH development after laparoscopic transhiatal esophagectomy, although no statistical significance was observed (19). Gooszen et al. also have reported that chemoradiotherapy might be one of risk factor of HH after esophagectomy, including both open and MIE (22). However, in the present study, we clearly showed that NAC was a risk factor of HH development after thoracoscopic esophagectomy. NAC induces fragility of tissues and delays wound healing, which might cause postoperative HH development. In addition, the synergistic effect of reducing tissue adhesion by MIS might play an important role (8-10,16,17). Indeed, we often observed during repair surgery for HH that the sutures remained on the graft or diaphragm while the knots were maintained, suggesting that tearing of either tissue could happen with exposure to sufficient external pressure. In all cases, postoperative HH occurred within 2 years after surgery. Thus, perioperative fragility of tissues might be an important factor influencing postoperative HH development. In recent decades, NAC has been introduced and applied in patients with cStage II or III tumors. Therefore, the incidence of postoperative HH after esophagectomy might be lower in previous reports than in the current study. cStage was not a risk factor of HH development, although NAC was. It might be because some patients underwent surgery without NAC in our series.
We frequently encountered an enlarged hiatus in repair surgery. Hence, by reviewing videos, we retrospectively checked whether or not right inferior phrenic artery was preserved at abdominal procedure, because atrophic changes in diaphragm might be due to the sacrifice of the left inferior phrenic artery. Unfortunately, we could check only 64 cases. Nevertheless, the ratio of artery preservation was significantly lower in the HH group than in the non-HH group and the preservation of the left inferior phrenic artery significantly contributed to postoperative HH development (P<0.01, Table 2).
The fixation of the graft conduit to the diaphragm is considered to be the most important method of surgical prophylaxis for preventing post-operative HH development. Nine patients had no fixation, and 104 had fixation using absorbable or non-absorbable sutures; however, the fixation of the graft at the diaphragm was not found to be a significant factor influencing postoperative HH development. Nevertheless, we believe that the fixation of the graft organ at the diaphragm might be helpful for straightening the graft in order to prevent the bending of the redundant conduit in the mediastinum after the operation as well as to prevent postoperative HH development. In most patients, colon was herniated into the thorax. Therefore, colopexy on diaphragm is one of recommended methods to prevent post-operative HH development (23), especially for the HH high-risk patients, and now we initiatively add the procedure for the patients with NAC.
Several limitations associated with the present study warrant mention, including its retrospective nature and the diverse surgeries performed as well as the backgrounds of the patients themselves. However, postoperative HH is a common complication of thoracoscopic esophagectomy, and the present study is an important one for investigating the risk factors for postoperative HH. We should take additional precautions in order to prevent the development of postoperative HH in patients who undergo MIE after NAC.
In the current study, we showed a relatively high incidence of postoperative HH after MIE. Analyses for the risk factors of HH development revealed that NAC was a major risk factor.
The authors are grateful to Dr. Osamu Ikeda, Saga-Ken Medical Center Koseikan, for suggesting the topic treated in this paper.
Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-1335
Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-1335
Peer Review File: Available at http://dx.doi.org/10.21037/jtd-20-1335
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-1335). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Institutional Review Board of Saga University Hospital (ID; 2017-04-22) and informed consent was taken from all the patients.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
