The number of deceased organ donors and solid organ transplants in the United States (U.S.) has consistently risen in recent years, with approximately 36,500 transplants from 10,700 deceased donors performed in 2018 alone (1). The current method of organ allocation allows donors to be matched with appropriate recipients nationwide, requiring substantial coordination and typically necessitating travel by several transplant teams for each donor (2). Donor management, organ allocation, and procurement operations are coordinated by 58 federally mandated, non-profit organ procurement organizations (OPOs), each managing donors within its respective geographic service area. Traditionally, this requires a donor’s OPO to communicate extensively with multiple transplant centers and coordinate care with the referring hospital where the donor resides. In an effort to optimize the efficiency of this process and potentially reduce costs, our local OPO, Mid-America Transplant (MOMA), built the country’s first freestanding specialized donor care facility (SDCF) in 2001. In this model, donation after brain death donors are transferred from the referring hospital to the SDCF for medical optimization while organ allocation is coordinated with transplant centers (Figure 1). The SDCF maintains its own in-house critical care unit, laboratory, radiographic equipment (i.e., CT scanner), and procurement operating rooms, resulting in a streamlined process of donor care. After the donor workup is complete and organs have been accepted by transplant centers, procurement teams travel to the SDCF for organ procurement.
By 2011, 93% of all procurements from MOMA were being conducted at the SDCF, which was associated with a reduction in surgeon air travel and overall cost of donor management (3,4). Furthermore, organ procurement from MOMA’s SDCF has been associated with an increase in organ yield per donor (4,5). At least 12 other OPOs in the U.S. have since either adopted the SDCF model or are in the process of doing so. However, a national comparison of the SDCF model with the conventional model of donor management while controlling for donor characteristics has not been performed. Furthermore, a nationwide economic evaluation from the perspective of U.S. transplant centers has also not been previously conducted. This holds tremendous importance with regards to donor management policy given the limited resources and wide variability of donor characteristics and organ acquisition costs. Not only is this important for transplant centers in the U.S., it is likely that the SDCF model of care has important characteristics that can be successfully adapted to support organ transplantation, particularly for thoracic organs, worldwide.
Given the sustained increase in organ donors over the last decade and the high cost associated with organ acquisition, it is critically important to compare the various models of donor care. To address this gap, we conducted an economic evaluation of the SDCF model compared to the conventional model of donor care in the U.S. from the perspective of transplant centers. We present the following article in accordance with the Consolidated Health Economic Evaluation Reporting Standards (CHEERS) reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-1575).
In this analysis we conducted an economic evaluation from a transplant center’s perspective to compare the SDCF model with the conventional model of hospital-based donor care. To accomplish this, we compare the observed (actual) cost and effectiveness of the nation’s OPOs during the study period with that of a predicted scenario in which all OPOs adopted the SDCF model of care. We chose to use nationwide data from the Scientific Registry of Transplant Recipients (SRTR) (6) to measure effectiveness, as this data is rigorously adjusted for individual donor characteristics and allows for accurate comparisons of performance among our country’s OPOs. We adjusted for patterns of organ sharing across the nation’s OPOs which vary across different regions of the country.
Organ acquisition charge (OAC) was used to compute organ costs. When a transplant center (e.g., Barnes-Jewish Hospital) accepts an organ for transplantation, the OAC is paid by that center to the respective OPO (e.g., MOMA) and ultimately reimbursed by private insurance companies or the government via the Center for Medicare & Medicaid Services. The OAC is used by OPOs to fund the cost of managing an organ donor in the hospital, coordinating the donation process, reimbursing hospitals for operating room charges, and in the case of an SDCF, transportation and management of the donor at the facility. Therefore, the OAC of an organ represents the unit cost of that organ to a transplant center. At MOMA, the OAC for a given organ does not change based on donation after brain death or cardiac death status.
Cost savings in the absence of comparable or improved effectiveness would be undesirable in any new model of care. Therefore, effectiveness was measured using each OPO’s observed and predicted number of transplants performed during the study period for heart, lung, liver, kidney, and pancreas. Single and double lung transplants were counted as one organ, while kidney transplants were counted separately. Due to their rarity, small intestine transplants were excluded from the analyses (Figure S1). Both donation after cardiac death and brain-dead donors were included in this analysis.
The number of organ donors and the observed and expected number of transplants for each OPO was obtained from OPO-specific reports from the SRTR (Supplementary material, A). The expected number of transplants for each organ is derived from a statistical model that adjusts for 38 donor characteristics, such as age, cause of death, and medical co-morbidities, and is published by the SRTR (6) (see Table S1). The organ-specific observed-to-expected ratio (O:E) for each OPO represents the observed number of transplants for a given organ divided by the expected number of transplants for that organ. Local organ transplants were defined as those donated to a transplant center within the OPO’s donation service area (DSA), while export organ transplants were those donated outside of an OPO’s DSA (Figure 2). It is important to account for the local and export organ transplants in each OPO as the OAC for export organs is usually higher due to travel costs and greater logistical burden. January 1, 2013 to December 31, 2014 was chosen as the study period, as this was the most recent period for which all required data were available.
The local and export organ-specific OACs for each OPO were obtained from OPO-reported data from the year 2014 (presented at the Association of Organ Procurement Organizations annual meeting). The OPO-specific OACs have not been reported publicly since 2014.
Observed organ transplants
For each OPO, the number of organ-specific observed transplants were obtained from the SRTR reports (6). Organ-specific observed total transplants nationwide were obtained by summing observed transplants from each OPO (Supplementary material, B).
For each OPO, organ-specific local and export OACs were used to compute the organ-specific observed average OAC (a weighted average of local and export OACs with weights determined by the number of local and export organs), and observed total costs (sum of local and export costs) (Supplementary material, C).
As an example, during the study period OPO A (conventional model) observed 307 liver transplants, including 203 local transplants with liver OAC = $30,000 and 104 export transplants with liver OAC = $36,000. Thus, the liver-specific observed total costs for OPO A = ($30,000×203) + ($36,000×104) = $9,834,000.
We then computed organ-specific observed average OAC nationwide by averaging observed organ-specific OACs from each OPO. Organ-specific observed total costs nationwide were derived from the sum of observed organ-specific total costs from each OPO.
Predicted transplants assuming nationwide adoption of the SDCF model
We assumed a scenario in which all OPOs in the U.S. adopted the SDCF model and achieved the same effectiveness. Data from MOMA’s performance was used to inform effectiveness, as this was the nation’s only fully functioning SDCF in the year prior to the study period. Under such a scenario, we assume that each OPO has the same O:E as that of the SDCF while retaining its own capacity (E). Therefore, the organ-specific predicted total transplants was calculated by multiplying the organ-specific expected transplants for each OPO by the SDCF’s O:E ratio for that organ.
As an example, OPO A (conventional model) observed 70 lung transplants from 367 donors during the study period, while 69.4 lung transplants were expected based on the SRTR’s statistical model (6). During the same period, the SDCF’s lung O:E was 1.18. Therefore, the predicted number of lung transplants from OPO A based on the SDCF’s performance =69.4×1.18=81.9. The organ-specific predicted total transplants nationwide were calculated by summing the predicted transplants for each OPO across all OPOs (Supplementary material, D).
Predicted costs assuming nationwide adoption of the SDCF model
Under the aforementioned scenario in which all OPOs in the U.S. adopted the SDCF model, the observed OAC of the SDCF was assumed to be the organ-specific predicted average OAC for all OPOs (Supplementary material, E). The overall predicted average OAC was obtained by averaging the organ-specific predicted average OACs for the studied organs.
As an example, during the study period OPO A (conventional model) was expected to perform 304 liver transplants with local and export proportions of 0.66 and 0.34, respectively. The SDCF’s OAC for local liver transplants was $26,000, OAC for export liver transplants was $38,000, and O:E ratio of the SDCF model for liver was 1.06. As described above, the predicted number of liver transplants for OPO A =304×1.06=322. Thus, the liver-specific predicted total costs from OPO A =322 × ($26,000×0.66 + $38,000×0.34) = $9,685,760.
Statistical and economic analysis
The primary measure of benefit was the difference in total transplants and cost between the observed and predicted scenarios. The secondary measure of benefit was the difference in organ-specific transplants and cost between the two scenarios. All OPOs lacking complete cost or effectiveness data during the study period were excluded from the analysis. Descriptive statistics were computed. Bootstraps were performed to resample OPOs 1,000 times with replacement when computing the predicted transplants and costs to obtain means and 95% confidence intervals (CIs). Cost-effectiveness plane was plotted to demonstrate effectiveness (mean overall predicted total transplants from the bootstraps and overall observed total transplants) against cost (mean overall predicted total cost from the bootstraps and overall observed total cost). All analyses were conducted using Microsoft Excel, version 16 (Albuquerque, NM, USA).
Nationwide observed cost and effectiveness

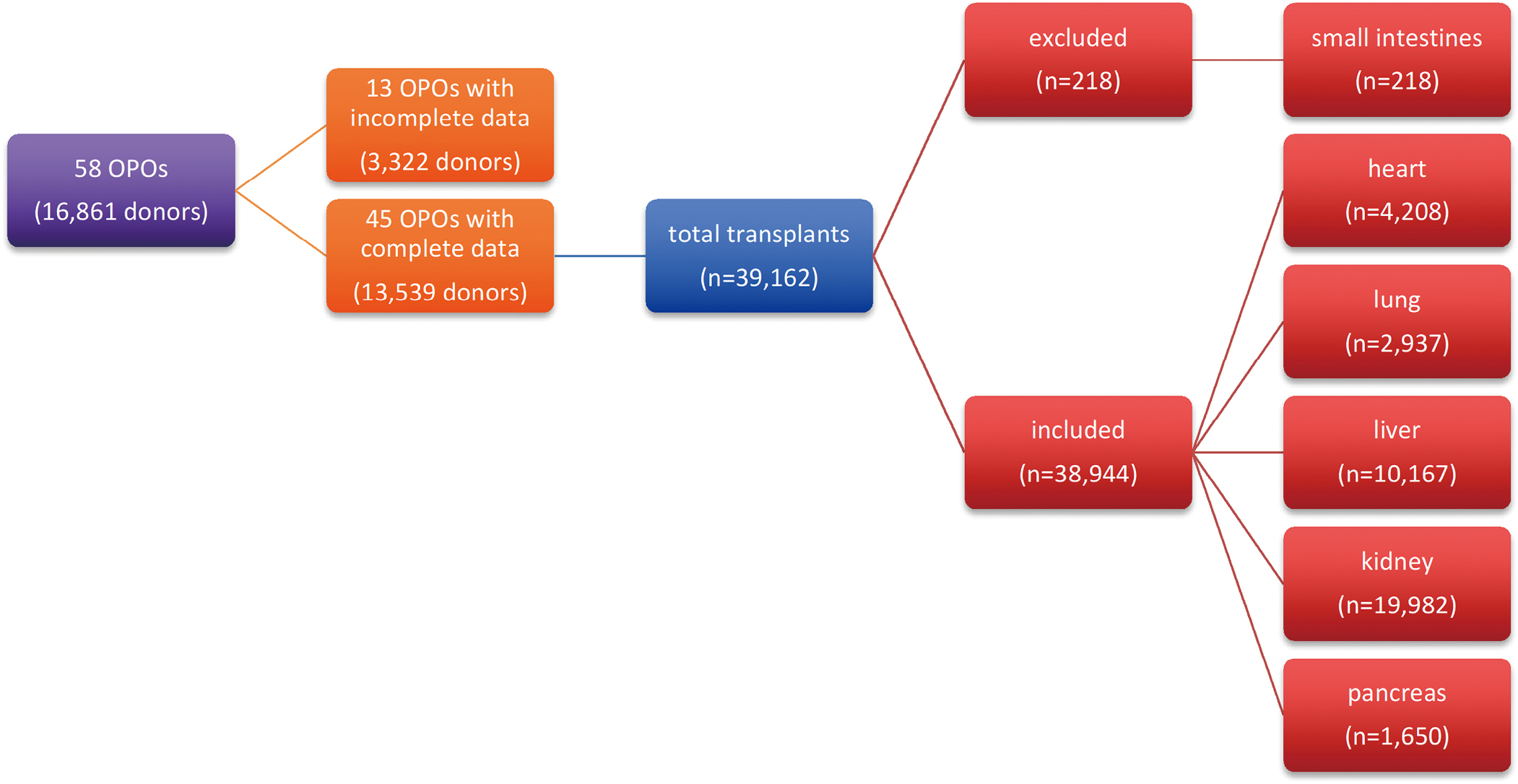

During the study period MOMA was the only established SDCF in the country which was transferring nearly all of its donors to the freestanding facility. Thirteen OPOs did not have complete data available and were excluded from the analysis (Figure S1). Nationwide, 38,944 transplants of the 5 organs of interest (heart, kidney, liver, lung, and pancreas) were observed from 13,539 individual donors (289 transplants per 100 donors) over the 2-year study period (Table 1).
The nationwide observed total costs paid by transplant centers to the OPOs was $1.36 billion (Table 2). The observed average OAC was $37,599 per organ. Lungs had the highest observed average OAC ($46,276), followed by heart ($37,743).
Nationwide predicted costs and effectiveness presuming SDCF model of care
Assuming nationwide adoption of the SDCF model, the overall predicted total transplants nationwide would have been 39,155 (95% CI: 38,977–39,334), an increase of 211 transplants compared to the observed effectiveness (Table 1). The overall predicted total organ cost nationwide was $1.26 billion (95% CI: $1.26–1.27 billion), a decrease of $100 million compared to the overall observed total organ costs nationwide. The predicted average OAC for every organ was lower compared to the observed average OAC based on the conventional model of care (overall mean $32,127 vs. $37,599) (Table 2).
Evaluation of the cost and effectiveness of nationwide adoption of the SDCF model
We evaluated the cost and effectiveness of nationwide adoption of the SDCF model by comparing the overall total transplants and organ costs between the observed and predicted scenarios. The predicted scenario dominated the observed scenario by being less costly (i.e., nationwide predicted total costs − observed total costs = −$100 million; last column in Table 2) and more effective (i.e., nationwide predicted transplants − observed transplants = +211 transplants; last column in Table 1) (Figure 3A).
Among the 211 additional transplants that were predicted with adoption of the SDCF model, 156 (74%) of these were from thoracic organs (heart and lungs). Subgroup analysis of thoracic organs alone demonstrated that the predicted scenario dominated the observed scenario by leading to an increase in thoracic transplants (+156) at a lower total organ cost (−$24.6 million) (Figure 3B).
We have performed an economic evaluation comparing the SDCF model of donor care to the conventional model of hospital-based care in the U.S. while accounting for regional variations in donor characteristics and patterns of organ sharing across the country’s OPOs. Our results show that the SDCF model may be a cost-effective means of donor management in the U.S. from a transplant center’s perspective, which may lead to an increase in thoracic organ transplants at a lower per transplant cost. While the predicted total number of organ transplants was slightly higher than the observed number of organ transplants, the predominant reason for the SDCF model’s cost-effectiveness is a substantially lowered predicted organ cost. With the changing landscape of organ donor management and the consistent increase in organ donors in recent years (7), these findings have important and far-reaching implications for health care economics and donor management policy (8), both at a national and international level.
The reasons for cost savings using the SDCF model are multifactorial but largely appear to be a result of lower overhead costs and greater efficiency in donor management. In the conventional model of donor care, all procedures and hospital-based workup add to the overall cost of donor management, which is paid for by the donor’s OPO. For example, if a donor needs a CT scan and bronchoscopy while at the referring hospital, both studies will confer additional cost to the OPO, which will ultimately be passed on to transplant centers through the OAC. Conversely, in the SDCF model the diagnostic workup is centralized, with radiographic studies, diagnostic testing, and laboratory analysis being performed at the SDCF via OPO-owned resources. Similarly, the SDCF model is likely to result in lower professional fees as well. A donor requiring bronchoscopy and dialysis in the conventional setting will be managed by a pulmonologist and a nephrologist, while in the SDCF model, a critical care physician or other personnel, who are extremely familiar with donor management and employed by the OPO, will provide these services. Donor care is a complex process that most hospitals are unfamiliar with. In this regard, the SDCF can be regarded as a “high-volume” center that performs these complex tasks frequently and efficiently. By co-locating services, such as radiographic machines, diagnostic testing equipment, intensive care units, and procurement operating rooms, the SDCF is able to simplify the donor management process. Despite recent changes in organ allocation policy in the U.S., the benefits of the SDCF are likely to be maintained due to inherent efficiencies of the model that facilitates a streamlined organ donor management and recovery process and lowers the cost of donor care.
The SDCF model can reliably institute specific algorithms to increase organ yield, which may be one factor contributing to the increase in effectiveness. A prior study by our group demonstrated that a lung focused resuscitation protocol implemented by a SDCF led to increased organ yield (5). Similarly, a previous study from our institution demonstrated that transferring a donor to a SDCF increased the overall organ yield (3.43 vs. 2.69 organs per donor, P<0.0001) and was associated with a lower mean donor recovery cost ($16,153 vs. $33,161, P<0.0001) (4). The transfer process itself appears to be relatively quick, with a median time from family consent to transfer of 8.6 hours, and has been associated with a very high family satisfaction (4). We have also found that procurement from the SDCF, rather than a referring hospital, was correlated with higher likelihood of daytime, rather than after-hours transplants (9). Therefore, it appears that transfer to a SDCF is efficient from a number of perspectives, including that of surgeons and donor families, and may confer other advantages not examined in this study. It remains to be seen if the benefits of a SDCF appreciated in the U.S. will be seen in other countries. To our knowledge no similar facilities exist outside of the U.S. However, we strongly anticipate that the fundamental efficacy of the SDCF model can be replicated not only in the U.S., but internationally.
Since the SDCF model requires a freestanding organ recovery center, the cost of initiating this model is worthy of discussion. A prior study of our local SDCF estimated the startup cost to be $5.34 million (construction, medical equipment, etc.) (4). In the current study we found a cost savings of $100 million for 45 OPOs using the SDCF model, resulting in approximately $2.2 million in savings per OPO during the study period. Therefore, one could envision that OPOs could use the differences in cost of donor management to offset startup costs. Our results also suggest that implementation of the SDCF model may be in the best interest of transplant centers as well, and they may be incentivized to fund a portion of a SDCF’s startup cost.
A few critical elements are required for the SDCF model to succeed and these should be carefully considered before another country or other U.S. OPOs adopt this model. First, the donor volume should be high enough that the cumulative OACs can finance the costs of running a SDCF. The leadership at our local OPO has estimated this number to be around 100 donors per year, which would have encompassed 38 of the 58 OPOs during our study period. It appears that the SDCF model functions optimally when built geographically close to high volume transplant centers, as this has been shown to reduce travel time and the number of “fly outs” by the procurement team in both real (3) and hypothetical (10) models of donor management. In the setting of new U.S. organ allocation policies, which have been shown to increase air travel (8), it may be ideal to locate new SDCFs close to airports.
Our results must be interpreted with some limitations in mind. We have conducted an economic evaluation from the perspective of U.S. transplant centers, which is only one of several perspectives that one could take when conducting such an analysis. The perspective of the payer (i.e., private insurance companies or the Center for Medicare & Medicaid Services), the referring hospital, and donor families was not examined in this analysis. The study period represents the most recent era for which all required U.S. cost data were available, and costs may have changed since then. Notably, while all 58 OPOs in the country are not for profit organizations, various OPOs are likely to have different margins of “profit” for different organs; unfortunately, this information is unavailable and unlikely to become available in the public domain. Hence, we used publicly available OACs as our best proxy of true cost of organs.
Given that transferring a donor to a SDCF generates an additional cost to the OPO, which will ultimately be passed on to transplant centers through the OAC, the geographic location of a SDCF may influence overhead cost. Furthermore, one limitation of this study is that our use of the O:E ratio as a measure of performance is nuanced and potentially reflective of the performance of accepting transplant centers in close proximity to the OPO. For example, our local OPO (MOMA) transfers 31% of donors to the SDCF by plane and the remainder by ground, which may not be representative of other OPOs (4); this is particularly relevant for countries that share organs across international lines, a model adopted in Europe (11). Furthermore, given that no other OPOs had fully implemented a SDCF during the study period, our results are extrapolated from the performance of a single SDCF, which may have overstated or understated certain aspects of cost or effectiveness. However, with four other OPOs having adopted the SDCF model since 2014 and seven others in the process of doing so, it appears that the U.S. healthcare system is already aligning itself with the most cost-effective model of donor care. As more SDCFs are implemented across the country and their data becomes available, studies will be undertaken which examine the performance of multiple centers using this model.
In conclusion, we have found that from a U.S. transplant center’s perspective the SDCF is a less costly, more effective model of donor care, particularly with regard to thoracic organs, when compared to the conventional model of hospital-based donor care. Our study predicts that nationwide adoption of the SDCF would result in a slightly higher number of organ transplants while substantially lowering the cost of organ acquisition. We urge international policymakers, payers, and transplant centers to consider incentives that facilitate a transition to the SDCF model of donor care.
❖ y: organ of interest (heart, liver, lung, kidney, or pancreas);
❖ OBS: observed;
❖ EXP: expected;
❖ PRED: predicted;
❖ Σ: total;
❖ TXP: transplants;
❖ TXP/100: transplants per 100 donors.
The following data were obtained from the SRTR reports (5): organ-specific observed transplants (yOBS TXP), number of organ donors, local and export number of transplants (yTXPlocal, yTXPexport), and organ-specific observed-to-expected ratios (O:E) for each OPO. The local and export organ-specific OACs for each OPO was obtained from OPO-reported data from the year 2014.
Observed organ transplants
Organ-specific observed total transplants nationwide (yOBS Σ TXP nationwide) was obtained by summing yOBS ΣTXP for OPOi, i=1,..,n over all OPOs.
where i is the index for OPO, and n is the number of all OPOs.
Overall observed total transplants nationwide was computed by summing yOBS ΣTXP nationwide over all interested organs:
where y is organ of interest: heart, liver, lung, kidney, or pancreas.
The organ-specific observed transplants per 100 donors for OPOi is obtained by
Organ-specific observed total transplants nationwide per 100 donors is computed as follows:
Overall observed total transplants nationwide per 100 donors was computed by summing yOBS ΣTXP/100 nationwide over all interested organs:
Organ-specific OAC for OPOi was obtained by the weighted average of local yOAC and export yOAC, where weights were determined by the number of local transplants and the number of export transplants:
Organ-specific observed average OAC was computed by:
Overall observed average OAC was computed by:
Organ-specific observed cost (yOBS Σcost) for each OPO was computed by multiplying the local OAC (yOAClocal) by the number of local y transplants and adding this to the product of export OAC (yOACExport) and the number of export y transplants.
Organ-specific observed total costs nationwide were then obtained by
Overall observed total costs nationwide were obtained by summing organ-specific observed total costs nationwide over all interested organs, as follows:
Predicted organ transplants assuming nationwide adoption of the SDCF model
Assuming nationwide adoption of the SDCF model
Organ-specific predicted total transplants nationwide (yPRED ΣTXP nationwide) was computed by summing yPRED ΣTXP for each OPO over all OPOs.
Overall predicted total transplants nationwide was calculated by summing yPRED ΣTXP nationwide over all interested organs, as follows:
Organ-specific predicted transplants per 100 donors for each OPO was obtained by
The organ-specific predicted total transplants nationwide per 100 donors (yPRED TXP/100 nationwide) was computed by.
Overall predicted total transplants nationwide per 100 donors was calculated by summing yPRED TXP/100 nationwide over all interested organs, as follows:
Predicted costs assuming nationwide adoption of the SDCF model
Organ-specific predicted average OAC was computed by:
Overall predicted average OAC for each OPO was computed by taking the average of yPRED
Organ-specific predicted costs for each OPO were obtained by:
Organ-specific predicted total costs nationwide were then computed by:
Funding: This work was supported by NIH grants F32 HL-143950 (JMG), R01 HL146856-01A1 (VP), and R21 DK-110530 (SHC) and Mid-America Transplant Foundation grant 022017 (VP, SHC). The funding organizations did not directly contribute to the identification, design, conduct, or reporting of the analysis.
Reporting Checklist: The authors have completed the CHEERS reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-1575
Peer Review File: Available at http://dx.doi.org/10.21037/jtd-20-1575
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-1575). JMG reports grants from NIH, during the conduct of the study. MBBD reports personal fees from Novartis, outside the submitted work. WCC reports personal fees from Novartis, Pathfinder, and Mid-American Transplant, outside of the submitted work. DK serves as an unpaid editorial board member of Journal of Thoracic Disease from Mar 2019 to Feb 2021, reports grants and personal fees from Compass Therapeutics, outside the submitted work, and has a patent pending entitled “Compositions and methods for detecting CCR2 receptors” (application number 15/611,577). SHC and VP report grants from NIH and Mid-America Transplant Foundation, during the conduct of the study. The other authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
