Cardiovascular disease (CVD) is by far the leading cause of death worldwide, with more than 17.9 million deaths in 2015. This figure is expected to rise to more than 23.6 million annually by 2030 (1-3). In 2015, 43.8% of deaths due to CVD in the United States were caused by coronary artery disease (CAD), and medical costs for CAD are expected to nearly double between 2015 and 2030 (3). Coronary artery calcification (CAC) occurs almost exclusively in atherosclerotic arteries, and the extent of atherosclerotic plaque formation is a well-known marker indicating the total burden of coronary atherosclerosis (4). Previous large-scale prospective studies have confirmed that CAC is a strong independent predictor of CAD, adverse cardiovascular events, and all-cause mortality (5,6).
Electrocardiography (ECG)-gated calcium scoring cardiac computed tomography (CaCT) is the standard reference method for the detection and quantification of CAC. CAC screening with ECG-gated CaCT has been accepted as a method to identify seemingly asymptomatic people with a high-risk of adverse cardiovascular events and to ensure the primary prevention of CVD (7). Compared with CaCT, non-gated, non-contrast chest computed tomography (NCCT) is used in cases presenting with additional clinical indications, such as lung cancer screening, pneumonia, chronic obstructive pulmonary disease, and pleural disease. Previous reports have showed that approximately 10.6 million chest CT scans are taken per year in the United States, compared with 0.5 million calcium scoring CT scans and 0.3 million cardiac CT (CaCT) scans (8,9).
As the detection of asymptomatic patients with significant CAC is expected to contribute to reducing the incidences of adverse cardiovascular events and medical costs, the need for immediate and reliable CAC screening with non-gated NCCT has recently increased (10). However, respiratory and cardiac motion artifacts, as well as partial volume effects, have been the main obstacles to calculating the CAC scores from routine NCCT images. Recent advances in multi-detector CT scanners with high-pitch acquisition modes and thin slices can significantly reduce these artifacts and allow the possibility of integrating CAC scoring into routine chest CT scans (11,12).
This study assessed the effectiveness of NCCT scan with a wide detector, high pitch, and fast gantry rotation in the quantification of CAC score, compared with ECG-gated CaCT, and to evaluate the concordance of CAC scores between NCCT and ECG-gated CaCT scans. We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-1371).

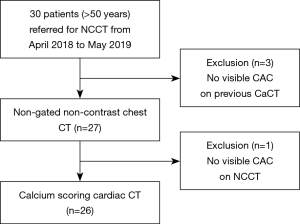

A total of 30 patients aged 50 years and older, who had been referred for NCCT scans for various reasons, were prospectively enrolled in this study from April 2018 to May 2019. Three patients were excluded from the study, as previous scans showed no CAC. One patient who showed no CAC on the first chest CT scan was also excluded from the study, and underwent no calcium scoring cardiac CT scan. Thus, 26 patients [14 men and 12 women; mean age, 66.04±6.97 years; mean body mass index (BMI), 23.80±2.52 kg/m2] were prospectively registered in this study. NCCT was performed for evaluating the response of lung cancer to chemoradiation therapy (n=6), diagnosis or follow-up of benign lung diseases (n=6), postoperative follow-up after lung cancer or lung metastasis (n=5), diagnosis or follow-up of lung metastasis (n=5) and diagnosis or follow-up of incidental lung nodules (n=4). This prospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and approved by the institutional review board of Gangnam Severance Hospital (Approval No. 3-2018-0047). Informed consent was taken from all the patients (Figure 1).

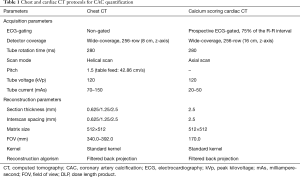

All CT scans were performed with a wide-coverage, 256-detector row CT scanner (Revolution CT, GE Healthcare, Milwaukee, WI, USA) and a gantry rotation time of 280 ms. NCCT scans were performed with a pitch of 1.5 and a table feed of 42.86 cm/s. The patients underwent scanning in the supine position while holding their breath at the end of each inspiration. The imaging protocol consisted of non-gated NCCT, followed by CaCT in the same examination. The CT protocol and its parameters are summarized in Table 1. Non-gated NCCT images of the thorax from the lung apex to the adrenal glands were acquired at 120 kVp voltage, 70–150 mAs tube current, and a slice thickness of 0.625 mm. During image acquisition, the images were reconstructed at 0.625-, 1.25, and 2.5-mm slice intervals. CaCT was performed with a prospective ECG-gated acquisition protocol and images were obtained from the carina to the cardiac apex at middle diastole (75% of the R-R interval). The imaging parameters were as follows: voltage, 120 kVp; tube current, 20–50 mAs; and reconstruction slice thickness, 2.5 mm (Table 1).
All CT images were transferred to a Picture Archiving and Communication System (PACS) station (Centricity 2.0; GE Medical Systems, Mt Prospect, IL, USA). The axial images were transferred to a workstation for CAC scoring using a commercially available software (Aquarius iNtuition TM Ver.4.4.6, TeraRecon, Durham, NC, USA). The dose-length-product (DLP) of NCCT and CaCT scans was systemically recorded.
Image quality analysis
The quality of CT images was evaluated by an observer (TH Kim, with >20 years of experience in cardiovascular radiology) from the axial NCCT images (slice thickness, 2.5 mm), and from the CaCT images on the PACS station. According to the semi-quantitative, three-point grading scale, the image quality for calculating CAC scores was classified as poor (1, not suitable for CAC scoring due to cardiac motion artifacts), good (2, presence of cardiac motion artifacts but confident CAC scoring), or excellent (3, no artifacts affecting image quality are present).
The CAC score was independently evaluated by two observers (TH Kim and CH Park, with >20 and >10 years of experience in cardiovascular radiology, respectively) using Aquarius (TeraRecon) software. Four sets of CT images, consisting of NCCT images (slice thicknesses: 0.625, 1.25, and 2.5 mm) and ECG-gated CaCT images, were presented to the observers in a random, blinded manner. The CAC score was estimated when the lesion showed a peak attenuation value of >130 Hounsfield units (HU) and a minimum area of 1.02 mm2 (at least 3 contiguous pixels). The lesion score was calculated using the Agatston method by multiplying the lesion area by the attenuation factor (derived from the maximum HU within the lesion) as follows: factor 1 for lesions with 130–199 HU, 2 for 200–299 HU, 3 for 300–399 HU, and 4 for ≥400 HU (13).
The region of interest in each coronary artery was manually encircled and the lesion with CAC was automatically depicted. The area of the lesion and the CAC score were automatically measured. The total Agatston score of the CAC lesion was automatically calculated by summation of the scores of individual lesions with CAC. For CAD risk stratification, the Agatston scores of CAC lesions were further classified into the following four Agatston scoring categories: category 0, CAC score 0; 1, 1–100; 2, 101–400; and 3, >400. These four categories have been used in several previous studies (14-16) and are also commonly used in clinical practice.
Categorical variables are presented as frequencies (in percentages). Continuous variables are presented as mean ± standard deviation (SD) for normally distributed variables, and as median [interquartile range (IQR)] for non-normally distributed variables. Normality assumptions for continuous variables were confirmed with Shapiro-Wilk test and Kolmogorov-Smirnov test. The continuous variables were analyzed using Pearson’s correlation. Inter-group comparisons were performed by two independent sample t-tests.

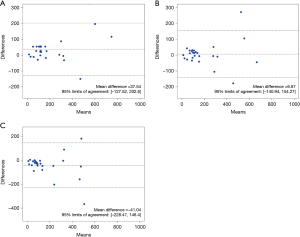

The inter-observer and inter-technique agreements on the quantitative CAC scores were evaluated using Bland-Altman analysis, intraclass correlation coefficient (ICC), kappa value, and variability. The concordance of the Agatston scoring categories with the four sets of CT images was expressed as weighted kappa values. ICCs or kappa values of <0.20, 0.21–0.40, 0.41–0.60, 0.61–0.80, and 0.81–1.00 indicated slight, fair, moderate, substantial, and almost perfect agreement, respectively (17). A P value of 0.05 or less was considered a statistically significant difference. Statistical analyses were performed a using commercially available software (R package version 3.4.4, SAS Institute Inc., Cary, NC, USA).

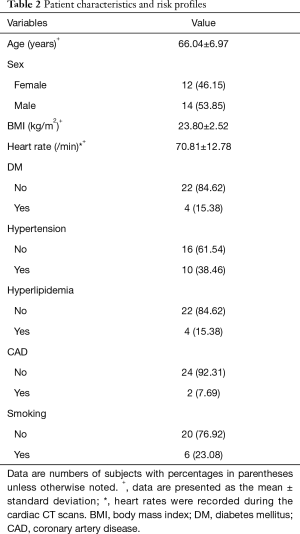

The physical characteristics and risk profiles of patients are summarized in Table 2. The presence of smoking history was associated with CAC scores (P=0.020). Other characteristics or risk factors did not significantly affect CAC scores (P>0.05). The mean DLP was 239.69±50.65 mGy·cm (145.03–327.68 mGy·cm) for NCCT acquisitions, and 26.92±9.07 mGy·cm (14.66–55.49 mGy·cm) for CaCT acquisitions. The mean effective doses of NCCT and CaCT with a conversion factor of 0.017 were 4.07±0.86 mSv and 0.46±0.15 mSv, respectively.
Image quality of chest and cardiac CT scans
Among the 26 patients, six axial NCCT images (6/26; 23.08%) (slice thickness, 2.5 mm) were graded with an image quality score of 3, and 20 images (20/26; 76.92%) has a score of 2. For CaCT images, 18 images (18/26; 69.23%) were graded with a score of 3 and eight images (8/26; 30.77%) has a score of 2. The mean heart rate during CaCT scans, patients’ BMI, and DLP showed no significant differences between the grade 2 group and grade 3 image groups.

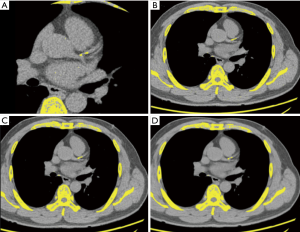

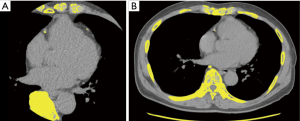

The CAC score was estimated for all patients using the CaCT images. In one patient (Agatston score of 33.40 on the CaCT images), a false-negative result (1/26; 3.85%) was registered on one NCCT image (slice thickness, 2.5 mm), whereas lesions with CAC could be seen on the other NCCT images (slice thicknesses of 0.625 and 1.25 mm) (Figure 2).

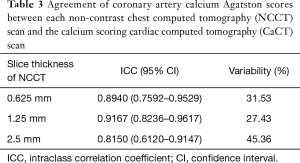

The median Agatston scores were 139.25 (IQR, 109.05–309.38), 119.88 (IQR, 84.30–276.14), and 75.52 (IQR, 55.58–207.90) for NCCT images (slice thicknesses: 0.625, 1.25, and 2.5 mm, respectively), and 109.75 (IQR, 76.37–207.90) for CaCT images. The inter-technique reliability for CAC scoring is summarized in Tables 3,4. The inter-technique agreement of Agatston scores between CaCT and NCCT scans was excellent at all slice thicknesses.

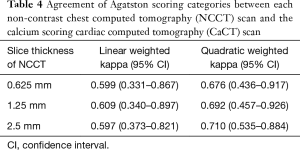

In contrast, the inter-technique agreement in the four Agatston scoring categories was substantial between CaCT and NCCT scans (slice thickness, 1.25 mm) (linear-weighted kappa value of 0.609), and moderate in the scans with the other two slice thicknesses (0.625 and 2.5 mm; linear-weighted kappa values of 0.599 and 0.597, respectively). NCCT scan with a slice thickness of 1.25 mm had the highest ICC or weighted kappa value, and the least variability in both Agatston scores and Agatston scoring categories, showing the strongest correlation with CaCT. This was followed by NCCT scan with a slice thickness of 0.625 mm. Results of Bland-Altman analysis showed that the mean differences between CaCT and NCCT (slice thicknesses: 0.625, 1.25, and 2.5 mm) were 37.54, 6.67, and −41.04, respectively (Figure 3).

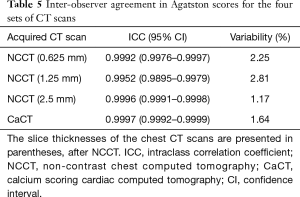

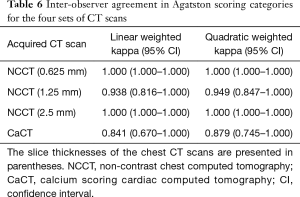

The ICCs for inter-observer reliability were excellent in both the Agatston score and the Agatston scoring categories for the four sets of CT images (Tables 5,6).

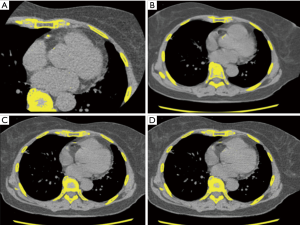

However, between the two readers, there were three discordant Agatston scoring categories in two patients. One discordant score was observed in the NCCT scan (slice thickness of 1.25 mm) (86.47 vs. 104.27), while the other two discordant scores were observed in the CaCT scans (106.54 vs. 98.75 and 102.96 vs. 95.06). Table 7 shows the number of concordant and discordant results between the CaCT images and the three sets of NCCT images in the Agatston scoring categories. NCCT scans (slice thickness, 0.625 mm) had seven discordant cases (7/26; 26.92%): score 1 was overestimated as score 2 in five patients (5/26; 19.23%) and the other two patients (2/26; 7.69%) were underestimated by 1 category (2 instead of 1 and 3 instead of 2). In the NCCT scans (slice thickness, 1.25 mm), 4 patients (4/26; 15.38%) were overestimated by 1 category (1 instead of 2) and 3 patients (3/26; 11.54%) were underestimated by 1 category [2 instead of 1 (n=2) and 3 instead of 2 (n=1)]. Therefore, the net reclassification rate was 26.92% (7/26). In the NCCT scans (slice thickness 2.5 mm), all eight cases of discordance (8/26; 30.77%) were underestimated by 1 category [1 instead of 0 (n=1); 2 instead of 1 (n=5); 3 instead of 2 (n=2)] (Figures 4,5).
The mean age, BMI, and DLP were not significantly different between the patients with concordant and discordant scoring categories. However, the mean heart rate measured during CaCT was significantly higher in patients with discordant score categories than that in patients with concordant scoring categories (74.53/min vs. 65.73/min, respectively; P<0.001).
This study evaluated the reliability of NCCT images using a wide detector, fast gantry rotation, and a high-pitch scanning mode for quantifying CAC scores, and compared those with the scores estimated from ECG-gated calcium scoring CaCT scans. Our study demonstrated that the agreement of Agatston scores was excellent between the ECG-gated CaCT and NCCT scans at each slice thickness. The agreement on the four Agatston scoring categories was strong between CaCT and NCCT (slice thickness, 1.25 mm) and was moderate between CaCT and the remaining two slice thicknesses of NCCT. NCCT (slice thickness, 1.25 mm) had the highest ICC or weighted kappa values, and the least variability in the Agatston scores and Agatston scoring categories, thus showing the strongest correlation with CaCT.
Many recent studies have suggested that CAC screening in the asymptomatic population could greatly help to prevent the incidence of adverse cardiovascular events (6,18-22). Chest CT scans are more likely to be used as a CAC screening tool because a larger proportion of the asymptomatic population undergo chest CT than CaCT CT scans, and also because of the improvements in the temporal resolution of CT systems. In addition, recent studies comparing automated CAC scoring in either ECG-gated coronary CT or non-gated chest CT with standard manual assessment reported that automated CAC scoring is feasible with acceptable agreement and reliability (23-25). Automated CAC scoring may save time and labor, making CAC scoring possible in routine chest CT scans. One of the strategies for the use of a chest CT scan for CAC screening may be to use the widest detector coverage, the highest pitch and the fastest rotation time permitted by the CT system. Our preliminary results show that reliable CAC scores can be obtained from non-gated chest CT scans with a z-axis coverage of 8 cm, pitch of 1.5, and a gantry rotation time of 280 ms. This scanning mode covers 42.86 cm/1 s, which could reduce the motion artifact due to a beating heart. In our study, however, the CAC scores were overestimated in the NCCT images (slice thicknesses of 0.625 and 1.25 mm) (median, 139.25 and 119.88) as compared with the CaCT images (109.75). The difference in CAC scores was much greater in the NCCT scan with a slice thickness of 0.625 mm (mean difference, 37.54) than in those with slice thickness of 1.25 mm (mean difference, 6.67). This overestimation is likely to have included systolic and diastolic images from the non-gated chest CT scan, and coronary artery motion artifacts are common in the systolic cardiac phase. Previous studies have mentioned overestimation of size due to blurred images from motion artifacts (18,26). Another potential reason for this overestimation may be that the partial volume effect in the thinner slice thickness of chest CT has decreased, increasing the attenuation of the coronary calcification (26). In our study, the CAC score increased in the NCCT with slice thicknesses of 0.625 and 1.25 mm. For NCCT images with a slice thickness of 1.25 mm, however, the CAC score was close to that of CaCT images. This is thought to be caused by the thin slice thickness, which reduces partial volume effects, and blurs the images during NCCT as compared to the ECG-gated CaCT, at a slice thickness of 2.5 mm (26).
In contrast, NCCT (slice thickness, 2.5 mm) underestimated the CAC scores (median, 75.52) and had one false-negative CAC. Non-gated CT scans may miss small lesions with CAC due to motion artifacts (19-21,26). In addition, the thicker the slice intervals, the more the chances of lesions being missed. A potential explanation for this is that thick slices reduce blooming artifacts on NCCT images as compared with ECG-gated CaCT images by increasing the attenuation and area of the calcified lesions (21,26). For CAC scoring, false-positive results are considered to occur with high image noise. In our study, there were no false-positive results, suggesting that all 26 of our image sets maintained acceptable image quality for CAC scoring (21,26).
Heart rate may be an important factor in the discordant results of the Agatston scoring categories. In our study, the mean heart rate measured during cardiac CT was much higher in patients with discordant scoring categories than in patients with concordant scoring categories (74.53/min vs. 65.73/min, P<0.001). However, chest CT is usually performed without ECG-gating; therefore, it is difficult to accurately assess the discordant effects of heart rate. In this study, NCCT images with slice thickness of 0.625 mm overestimated the Agatston scoring categories (5/7; 71.43%), whereas those with slice thickness of 2.5 mm underestimated the Agatston scoring categories (8/8; 100%). NCCT images (slice thickness, 1.25 mm) tended not to be stronger than the other two NCCT images (4/7; 57.14% vs. 3/7; 42.86%), suggesting that the CAC score measured using NCCT images with a slice thickness of 1.25 mm was the most reliable.
Our study has some limitations. First, the number of patients was relatively small for the results to be generally accepted. In future studies, more patients should be recruited, and various CT techniques should be employed, using the most up-to-date CT scanners. Second, the clinical impact of coronary calcification on the chest CT has not been studied in this study.
We found that CAC quantification using NCCT scans with a wide detector, high pitch, and high temporal resolution scanning mode correlated highly with the ECG-gated CaCT scans. Chest CT images reconstructed with a slice thickness of 1.25 mm were more reliable than those with slice thickness of 0.625 or 2.5 mm for quantifying the CAC scores.
