Non-small cell lung cancer (NSCLC) accounts for a large proportion of lung carcinoma, which is one of the major causes of cancer death worldwide (1). During the past decade, adenocarcinoma has been the most common pathological type and the International Association for the Study of Lung Cancer (IASLC)/American Thoracic Society (ATS)/European Respiratory Society (ERS) published a new classification for lung adenocarcinoma in 2011 Feb (2,3). In this classification, guidance for small biopsies in advanced stage patients was also provided (2). It recommends gene test for epidermal growth factor receptor (EGFR) mutation in adenocarcinoma, because these mutations are related to high response to EGFR tyrosine kinase inhibitors (EGFR-TKI) (4,5). While Soda et al. identified anaplastic lymphoma kinase (ALK) gene rearrangement as another diagnostic marker and therapeutic target in 2007 (6). The fusion gene comprised the echinoderm microtubule-associated protein-like 4 (EML4) gene and ALK gene is occurring in 2–7% of NSCLC and 8–22% of light or never smokers suffered from lung cancer (7,8). ALK rearrangement targeting therapies have been investigated recent years. In a phase 3 study, crizotinib is found to be superior to standard chemotherapy in advanced NSCLC with ALK rearrangement (9). However, due to old age, serious diseases or other reasons, not every patient could undergo EGFR and ALK gene analysis. Although liquid biopsy has developed rapidly recent years, it is expensive and has not been popularized in clinic. It is important to find some specific clinical and radiologic characteristics to distinguish adenocarcinoma with ALK rearrangement from those with EGFR mutation.
Previous studies have attempted to investigate the clinicopathologic and radiogenomic features which could predict ALK rearrangement NSCLCs. Although a lot of studies found ALK rearrangement was highly occurred in younger, female and never smoked adenocarcinomas, it was overlapped with EGFR mutated patients on clinical profiles (10-12). Fortunately, some radiologic characteristics of ALK rearrangement were detected (13-16). Nakada et al. (14) reported that ALK rearrangement lesions were smaller and had a low tumor disappearance rate than EGFR mutated lesions on high-resolution computed tomography (HRCT). However, another study discovered ALK rearrangement positive lung adenocarcinomas were more likely to be large and with thoracic lymphadenopathy (15). A nearly research suggests that patents with ALK rearrangement is younger, and characterized by lobulated margin and solid lesion compared with EGFR mutant and wide type cohorts in surgically resected NSCLCs (16). These conclusions were mostly studied in early stage NSCLCs, and may remain some uncertainties.
However, a meta-analysis pooled 27 retrospective studies revealed that EML4-ALK was more common in adenocarcinoma lacking EGFR and KRAS mutation, never smoked and advanced NSCLC (17). Recently a retrospective study found that adenocarcinomas with ALK rearrangement were more likely to be solid masses and with lymph node metastasis or pleural metastasis compared with those with EGFR mutations (18). Nevertheless few investigations of ALK rearrangement and EGFR mutation have been conducted in advanced NSCLCs. Furthermore most of the patients who could not undergo EGFR and ALK gene analysis are first diagnosed as advanced lung cancer. We conducted this retrospective study attempted to investigate some clinical and radiologic differences between advanced NSCLCs with ALK rearrangement and those with EGFR mutations. The aim of our study was to find a few clinical futures and CT or FDG-PET characteristics, which could be combined to help distinguish ALK rearrangement form EGFR mutations in treatment naïve advanced lung adenocarcinoma of Chinese patients.
This retrospective study reviewed the clinical profiles, HRCT images, and FDG-PET features in patients with treatment naïve advanced lung adenocarcinoma (clinical stage IIIB or IV). These patients underwent small biopsies, both ALK rearrangement and EGFR mutation analysis in Jinling Hospital (Jiangsu, China) from January 2013 to December 2015. A total of 428 patients were identified. Eligible criteria included: 18 years or older; stage IIIB/IV NSCLC with percutaneous core needle and/or bronchoscopic biopsy diagnosed as adenocarcinoma; with ALK rearrangement and/or EGFR mutation, had not underwent any treatment (chemotherapy, radiation therapy, or immunologic therapy); performed chest HRCT before lung biopsy in our institution. Finally, 145 patients (91 female and 54 male; age range, 27–78 years; average age, 57.5 years) were included. In addition, patients concurrent with other tumors were excluded (Figure 1). This study design was approved by the Ethics Committee of Jinling Hospital. The requirement for informed consent was waived.
HRCT and FDG-PET evaluation
All studies were performed using a multi-slice CT scanner system (Somatom Sensation 64, Siemens, Erlangen, Germany). Scanning parameters were as following: tube voltage 120 kVp, tube current 150–200 mA, rotation time 0.5 s, and 2 mm reconstruction thickness with a 1 mm reconstruction interval. Two radiologists with more than 5 years of experience retrospectively interpreted the HRCT images independently. They were blinded to the pathological findings. When there were different opinions of the CT images, these two radiologists would discuss and reach a final consensus. All of the main HRCT characteristics were shown in Table 1. In Table 1, “well-defined borders” means the boundary between the nodule and the lung tissue is clearly defined and outlined as a pencil; “poorly-defined borders” means the boundary between the nodule and the lung tissue is not clear and cannot be completely outlined with a thin nodule contour; “bubble lucency” means bronchus encapsulated air sign and cavity.
Only 26 of the included patients underwent integrated FDG-PET/CT before any clinical treatment. 18F-FDG was administered intravenously 1 hour prior to PET/CT scans. Fluorodeoxyglucose-positron emission tomography data was analyzed using standardized uptake values (SUV). We used trans-axial images for analysis. SUVs were calculated as decay-corrected activity (kBq) per milliliter of tissue volume divided by injected dose per weight (kBp/g). SUVmax of lymph nodes was measured after placing a region of interest over all masses.
ALK rearrangement and EGFR mutation analysis
DNA was extracted from five pieces of formalin-fixed, paraffin-embedded (FFPE) tumor tissue using the QIAamp FFPE Tissue Kit. Molecular analysis of mutation status of EGFR exons 18, 19, 20, and 21 was examined with Human EGFR Gene Mutations Detection Kit (AmoyDx, Xiamen, China), which is a polymerase chain reaction (PCR)—based amplification-refractory mutation system (ARMS). ALK-EML4 gene rearrangements were detected by VENTANA immunological histological chemistry (IHC) kits [ALK (D5F3), VENTANA, Roche].
Continuous variables were compared using the one-way ANOVA or the Mann-Whitney test. Categorical variables were analyzed by chi-square test or Fisher’s exact test. Before compare the average diameter, serum carcinoembryonic antigen (CEA) and SUVmax values of tumors with ALK rearrangement and those with EGFR mutation, we calculated optimal cut-off values using a receiver operating characteristic (ROC)-based positive test with ALK rearrangement as categorical variables. Then the tumor diameters, serum CEA and SUVmax values of tumors were dichotomized as ≤ optimal cut-off value and > optimal cut-off value.
To investigate independent factors that may help distinguish tumors with ALK rearrangement from those with EGFR mutation, we performed multivariate logistic regression analysis. Variables were selected by a forward stepwise selection mode before multivariate analysis. Values of P<0.05 were considered statistically significant. We used Statistical Product and Service Solutions (SPSS) version 20.0 (SPSS Inc., Chicago, IL, USA) to conduct statistical analysis.

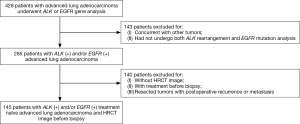

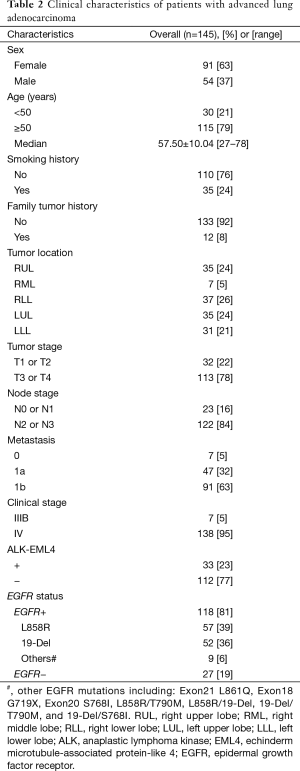

A total of 145 patients were enrolled in this study. Their clinical characteristics are presented in Table 2. All of the patients were clinically diagnosed as advanced lung adenocarcinoma: IIIB stage in 7 (5%) patients and IV in 138 (95%) patients. Most patients were female (63%) and non-smoker (76%). A majority of the patients were more than 50 years old (79%) with a median age of 57.5 years (range, 27–78 years). Family tumor history was identified rarely (8%). More of the tumor located in right lung (55%). ALK rearrangement was positive in 33 (23%) patients and 118 (81%) patients were EGFR mutated. Among tumors with EGFR mutation, 57 (39%) had L858R mutation, 52 (36%) had 19-Del mutation, and 9 (6%) had other mutations (including Exon21 L861Q, Exon18 G719X, Exon20 S768I, L858R/T790M, L858R/19-Del, 19-Del/T790M and 19-Del/S768I). Tumors with both ALK rearrangement and EGFR mutation were happened in only six patients. No patient received chemotherapy, radiation therapy, or immunologic therapy.

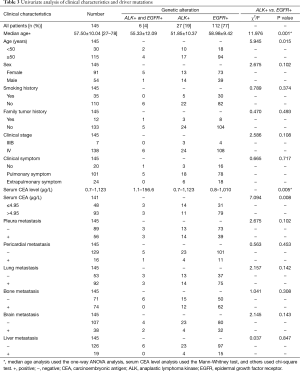

Although there were six patients with both ALK rearrangement and EGFR mutation, the sample size was too small to analysis. We just compared ALK rearrangement positive group and EGFR mutation positive group. Significant differences were only found in age and serum CEA level (Table 3). Patients with ALK rearrangement were younger (51.85±10.37) than those with EGFR mutation (58.98±9.42, P=0.001). EGFR mutation was more likely to be positive in patients older than 50 years old (P=0.015). ALK rearrangement had no preference in sex (female 48% vs. male 52%), while EGFR mutation was seen more frequently in female (65%), however there was no significant difference. Serum CEA level had significant difference in two driver mutations (P=0.005). We conducted ROC (ROC) analysis to determine the cut-off value for CEA level (Figure 2A). Patients were divided into two groups: CEA level less or equal than 4.95 µg/L and CEA level more than 4.95 µg/L. Patients with ALK rearrangement were more likely to have lower serum CEA level, while those with EGFR mutation were mostly with CEA level more than 4.95 µg/L (P=0.008). Although no statistically significant difference was found, tumors with ALK rearrangement had higher rate of pleura metastasis (52% vs. 35%) and pericardial metastasis (15% vs. 9.8%), lower rate of lung metastasis (52% vs. 67%), bone metastasis (44% vs. 55%) and brain metastasis (15% vs. 29%) compared with those with EGFR mutations. There was also no significant difference in smoking history, family tumor history, clinical stage, clinical symptom and liver metastasis between patients with ALK rearrangement and EGFR mutations (Table 3).
HRCT and FDG-PET features

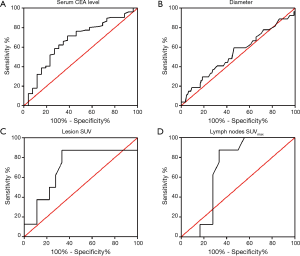

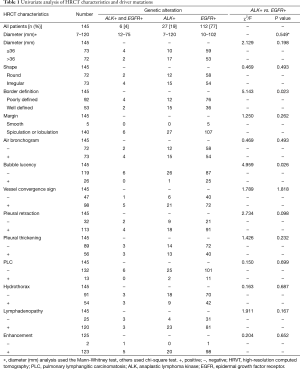

We conducted the Mann-Whitney test or chi-square test to find some differences among ALK rearrangement and EGFR mutation groups (Table 1). Tumor diameter had no significant difference in these two groups (P=0.549). Then we used ROC analysis to determine the cut-off value for tumor diameter and the calculated cut-off value was 36 mm (Figure 2B). There was still no significant difference (P=0.198) when divided into less or equal than 36 mm group and more than 36 mm group, but tumors with ALK rearrangement had higher rate in diameter more than 36 mm than those with EGFR mutation. Most of the tumor borders with EGFR mutation were poorly defined, while more of those with ALK rearrangement were well defined (P=0.023). In addition, tumors with ALK rearrangement were more likely to have bubble lucency than those with EGFR mutation (P=0.026). Lymphadenopathy was seen more frequently in patients with ALK rearrangement (P=0.167). We did not find statistically significant difference in tumor shape, margin, air bronchogram, vessel convergence sign, pleural retraction, pleural thickening, pulmonary lymphangitic carcinomatosis (PLC), hydrothorax, and enhancement (Table 1).

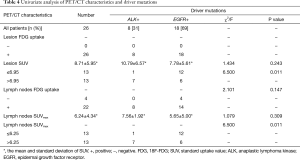

Twenty-six patients also received FDG-PET/CT in our institution. Among these patients, eight were ALK rearrangement positive and 18 were EGFR mutation positive. We pooled their lesion FDG uptake and lymph nodes FDG uptake in Table 4. The cut-off values of lesion SUV and lymph nodes SUVmax were calculated using ROC analysis (Figure 2C,D). The median SUV of lesions with ALK rearrangement and EGFR mutation was 10.79±6.57 and 7.78±5.61, respectively, however there was no significant difference (P=0.243). The median SUVmax of lymph nodes with ALK rearrangement and EGFR mutation was 7.56±1.92 and 5.56±5.00, respectively, and there was also no significant difference (P=0.309). Then we dichotomized the patients with cut-off value of lesion SUV 6.95 and lymph nodes SUVmax 6.25. Patients with lesion SUV >6.95 and lymph nodes SUVmax >6.25 were more frequently seen in ALK rearrangement group than EGFR mutation group (P=0.011, both).

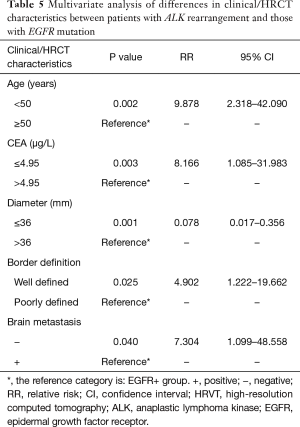

We conducted the multivariate analysis referenced to EGFR mutation group to pool influence of both clinical variables and HRCT features. Five features were found to have significant difference in this logistic regression model (Table 5). These independent prognostic factors to distinguish ALK rearrangement from EGFR mutation were age, serum CEA, tumor diameter, border definition, and brain metastasis. Patients younger than 50 years (RR=9.878, 95% CI: 2.318–42.090, P=0.002), with lower CEA level than 4.95 µg/L (RR=8.166, 95CI%: 1.085–31.983, P=0.003) and without brain metastasis (RR=7.304, 95% CI: 1.099‒48.558, P=0.040) were more likely to be ALK rearrangement than EGFR mutation. Tumor diameter less than 36 mm were prone to be EGFR mutation (RR=0.078, 95% CI: 0.017–0.356, P=0.001). The border definition of tumors with ALK rearrangement was preferred to be well defined (RR=4.902, 95% CI: 1.222–19.662, P=0.025).
Our study retrospectively reviewed 145 patients with untreated advanced adenocarcinoma in East Asian Chinese population. We investigated the clinical, HRCT, and FDG-PET features between tumors with ALK rearrangement and EGFR mutations.
Patients with ALK rearrangement were younger than those with EGFR mutation. EGFR mutations were more likely to be positive in patients older than 50 years old. These results were consistent with previous studies in NSCLC (10,15,18). CEA is an important serum tumor marker; recent studies have found that patients with ALK rearrangement were seen more frequently to have normal serum CEA level in lung adenocarcinoma (19,20). However the study populations of these retrospective investigations were most with early clinical stage. In our study, we found that advanced lung adenocarcinomas with ALK rearrangement were more likely to have lower serum CEA level, while those with EGFR mutation were mostly with CEA level more than 4.95 µg/L. These clinical features may be helpful in distinguishing ALK rearrangement from EGFR mutation in the absence of genetic analysis.
Unfortunately, there was no significant difference in sex, smoking history, family tumor history, clinical stage, clinical symptom and liver metastasis between patients with ALK rearrangement and EGFR mutations. Both of the groups were prone to be non-smokers, which was consistent with previous studies (20-23). No statistically significant difference was found in tumor metastasis, but the tendencies were agree with Choi et al. (18). Tumors with ALK rearrangement had higher rate of pleura metastasis and pericardial metastasis, lower rate of lung metastasis, bone metastasis and brain metastasis compared with those with EGFR mutations (Table 3).
Our study identified several HRCT characteristics, among which only border definition and bubble lucency had significant difference. Tumors with ALK rearrangement were more likely to have well defined border and bubble lucency. Wang et al. demonstrated five CT characteristics had significant difference between ALK rearrangement and EGFR mutation, including tumor size, ground-glass opacity (GGO), bubble-like lucency, lymphadenopathy, and tumor shadow disappearance rate (24). However, in this research, we did not find significant difference in tumor diameter and lymphadenopathy, and GGO was not seen in all of the ALK rearrangement population. When we dichotomized the patients with cut-off value of diameter, there was still no significant difference. Whereas the tendency was in agreement, tumors with ALK rearrangement had higher rate in diameter more than 36 mm than those with EGFR mutation. Lymphadenopathy was also seen more frequently in patients with ALK rearrangement. And among the 26 patients received FDG-PET/CT in our institution, lesion FDG uptake and lymph nodes FDG uptake were higher in those with ALK rearrangement than with EGFR mutations. Patients with lesion SUV >6.95 and lymph nodes SUVmax >6.25 were more frequently seen in ALK rearrangement group than EGFR mutation group. These FDG-PET evaluations were keeping with the results of previous study (25).
In the logistic regression model, we found five independent prognostic factors to distinguish tumors with ALK rearrangement from those with EGFR mutation. Patients younger than 50 years and with lower CEA level than 4.95 µg/L were more prone to be ALK rearrangement than EGFR mutation. Tumor diameters less than 36 mm were likely to be EGFR mutation. The border definition of tumors with ALK rearrangement was preferred to be well defined. Tumors with ALK rearrangement were less seen to have brain metastasis. Our results were consistent with several previous studies (18,20,24,25).
There were also some limitations in our study. The present study was a retrospective study and was conducted in a single large institution. Patient number was relatively small for our strict inclusion criteria and low rate of ALK rearrangement. Some cases were also excluded for not available HRCT image. There should be a large sample prospective study to validate these results. It was not impossible to analyze clinical and HRCT features according to histopathologic subtypes of invasive adenocarcinoma for limited small biopsy. Most of the patients did not undergo KRAS, ROS1, or c-MET gene analysis; this may have some influence of the results. We could not get complete prognostic information now, because our study reviewed patients from January 2013 to December 2015. We look forward to confirm these results in advanced lung adenocarcinoma prognosis by follow-up research.
In summary, we demonstrated that patients with younger age, lower serum CEA level, large tumor volume, well defined tumor border, and non-brain metastasis are more likely to be ALK rearrangement positive than EGFR mutation positive in treatment naïve advanced lung adenocarcinoma. Other features such as bubble lucency and higher FDG uptake of lesion and lymph nodes may help distinguish advanced lung adenocarcinoma with ALK rearrangement from those with EGFR mutation in the absence of genetic analysis.
Funding: This work was supported by the Clinical Science and Technology Project of Jiangsu Province (No. BL2013026) and the National Natural Science Foundation of China (No. 81572273), Natural Science Foundation of Jiangsu Province (No. BK20161386).
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: The study was approved by the Institutional Ethical Committee (approval number: 2017NZHX-002). The requirement for informed consent was waived.
