Prognostic factors for surgically resected non-small cell lung cancer with cavity formation
Lung cancer is one of the leading causes of cancer-related mortality worldwide (1,2), and approximately two-thirds of patients with lung cancer present with locally advanced or metastatic disease at time of diagnosis (3). Early detection of lung cancer is essential to accomplish reduction in mortality. Developments in imaging modalities and the widespread use of low-dose helical computed tomography (CT) for lung cancer have contributed to the increase in detection of small pulmonary lesions (4,5). Primary lung cancers have various appearances in radiological findings, occasionally emerging with cavity formation. The presence of cavities in lung cancer was reported to be a poor prognostic factor for non-small cell lung cancer (NSCLC) (6-8), in addition to pathological stage, which involves tumor differentiation (9), tumor size (10), number of involved lymph nodes (11), and vascular invasion or pleural invasion (12-14). However, the underlying cause of cavity formation accompanying lung cancers as well as why the presence of cavities is likely to be responsible for dismal prognosis remains unclear.
A cavity has been defined in the radiology literature as a gas-filled space, seen as a lucency or low-attenuation area, within pulmonary consolidation, a mass, or a nodule, and sometimes contains fluid (15). This means that a small number of lung cancer cells sometimes occur in “the gas-filled space”, but most of the cells lie along the cavity wall. Normal growth pattern in which cancer progression or cell proliferation is directly proportional to increments of tumor size might not apply to the development of cavitary lung cancers. This is because cancer with cavity formation might be caused by bronchial obstruction and a check-valve mechanism or originate in the wall of a pre-existing cystic space (16,17). In such cases, it remains in doubt that their whole tumor size is associated with malignant potential as in other lung cancers, whereas cavity wall thickness might reflect malignant potential. Our postulates are as follows:
- To clarify whether whole tumor size is appropriate as a prognostic factor which determines TNM classification in patients with lung cancers with cavity formation, and;
- To evaluate the effect of cavity wall thickness on prognosis in this cohort.
This study was performed to provide pragmatic information for a prognostic factor in lung cancer with cavity formation.
A total of 1,313 consecutive patients underwent curative operations (lobectomy or bilobectomy with lymph node dissection) for NSCLC at Tokyo Medical University Hospital between January 2005 and December 2011. Patients who had received preoperative chemotherapy, radiotherapy, or both were excluded. Of these cases, 65 patients (5.0%) who were diagnosed with NSCLC with a cavity based on chest CT were enrolled. After pulmonary resection, the patients were followed up at 3 to 6 months intervals for 3 years, then at 6 to 12 months intervals for the next 2 years, and thereafter at 1-year intervals as necessary. The evaluations included physical examination, chest roentgenogram, chest CT, and tumor marker examination. Abdominal CT, brain magnetic resonance imaging, and bone scintigraphy or positron emission tomography CT were performed once a year (with some exceptions) or when recurrence was suspected. The Institutional Review Board of our hospital approved the protocols for data collection and analyses, and waived the need to obtain written informed consent from each patient (No. 2016-224).
Radiological and pathological examinations
The images from preoperative CT scans were reviewed by two experienced radiologists (Daisuke Yunaiyama and Jinho Park). In this study, cavity formation in lung cancer was defined as an air-containing space greater than 5 mm in diameter that was located within a tumor and was also surrounded with the wall. The maximum length from the inside wall of a cavity to the margin of the solid part of the tumor in a lung window width and window level was measured as cavity wall thickness. There are no definitive classifications about wall thickness of cavitary lesions. In this study, we used the classification that Woodring et al. developed to predict benign or malignant lesions (18). The patients were classified into three groups based on maximum cavity wall thickness, namely, 4 mm or smaller (Group 1), both larger than 4 mm and equal to or smaller than 15 mm (Group 2), and larger than 15 mm (Group 3) (Figure 1A,B,C).
All resected specimens were formalin-ﬁxed and stained with hematoxylin and eosin by routine procedures. All the cases were reviewed by two experienced pathologists (Jun Matsubayashi and Toshitaka Nagao). TNM classiﬁcation was performed according to the Union for International Cancer Control and the American Joint Committee on Cancer staging system (7th edition) (19). Histopathological analyses were performed according to WHO criteria (4th edition) (20). For detailed examinations of blood vessel invasion (BVI), lymphatic permeation, and visceral pleural invasion (VPI), Elastica van Gieson stain and D2-40 stain were routinely used to evaluate histological structures and tumor invasion. Vascular invasion was defined as the presence of BVI and/or lymphatic permeation. In this study, the presence of necrosis was evaluated in each cavity macroscopically (Figure 2).
Overall survival (OS) and recurrence-free survival (RFS) were estimated using the Kaplan-Meier method, and differences in survival rates were determined by log-rank analysis. OS was defined as the time elapsed from the date of pulmonary resection to the date of the date of death from any cause or last follow-up showing being alive. RFS was defined as the time elapsed from the date of pulmonary resection to the date of the first recurrence or last follow-up showing no recurrence. The last follow-up observation was censored if the patient was alive or lost to follow-up. Categorical and continuous variables were analyzed using the Fisher exact test and Student t-test, respectively. Multivariate analysis was performed by the backward stepwise procedure for the Cox proportional hazards model. The interaction terms of variables selected in the final model were evaluated by the likelihood ratio test. All tests were two-sided and P values of less than 0.05 were considered to indicate a statistically signiﬁcant difference between groups. All statistical calculations were performed using the SPSS statistical software package (version 24.0; SPSS, Inc., Chicago, IL, USA).

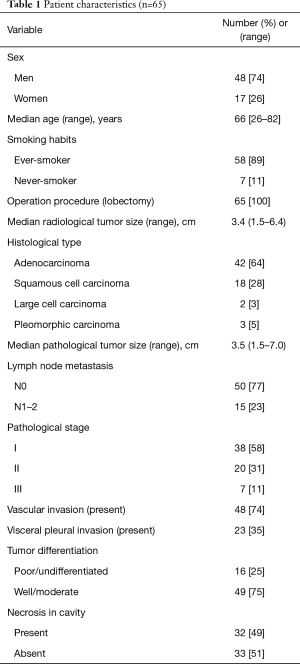

The characteristics of the patients with cavity-containing lung cancer are shown in Table 1. The 65 patients in this study consisted of 48 men (74%) and 17 women (26%). The median age was 66 years (range, 26–82 years). The median follow-up period was 49.2 months. The median radiological and pathological tumor sizes were 3.4 and 3.5 cm (range, 1.5–7.0 cm), respectively. Histopathological types were adenocarcinoma in 42 patients (64%), squamous cell carcinoma in 18 patients (28%), and other types of NSCLC (pleomorphic carcinoma or large cell carcinoma) in 5 patients (8%). Lymph node metastases were present in 15 patients (23%). Pathological findings showed that necrosis in the cavity was present in 32 patients (49%). Necrosis in the cavity was found in 16 squamous cell carcinomas (16/18, 89%), in 12 adenocarcinomas (12/42, 29%), and in 4 cases of the other types (4/5, 80%) with a significant difference (P<0.001).

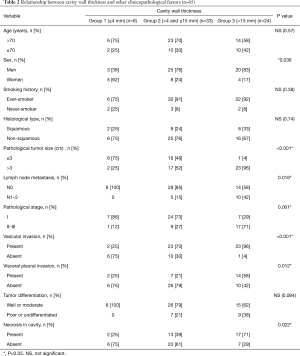

The associations between cavity wall thickness and clinicopathological factors are shown in Table 2. There were 8 patients (12%) in Group 1, 33 patients (51%) in Group 2, and 24 patients (37%) in Group 3. The number of patients with pathological whole tumor size larger than 3 cm was 2 (25%) in Group 1, 17 (52%) in Group 2, and 23 (96%) in Group 3 (P<0.001). A dot plot shows the relationship between cavity wall thickness and whole tumor size in Figure S1. The prevalence of lymph node metastasis was 0% in Group 1, 15% in Group 2, and 42% in Group 3. The prevalence of vascular invasion was 25% in Group 1, 70% in Group 2, and 96% in Group 3. The prevalence of necrosis in cavity of Group 1, Group 2, and Group 3 was 25%, 39%, and 71%, respectively. Cavity wall thickness had a statistically significant strong relationship with tumor size (P<0.001), lymph node metastasis (P=0.016), stage (P=0.001), vascular invasion (P<0.001), VPI (P=0.012), and necrosis in cavity (P=0.022). There was no association between cavity wall thickness and histological type.

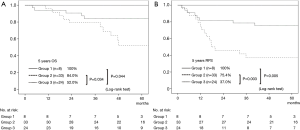

The 5-year OS rate of Group 1, Group 2, and Group 3 was 100%, 84.0%, and 52.0%, respectively. There was a statistically significant difference between Group 1 and Group 3 (P=0.044), and between Group 2 and Group 3 (P=0.034) (Figure 3A). The 5-year RFS rate of Group 1, Group 2, and Group 3 was 100%, 75.4%, and 37.0%, respectively. The difference in the RFS rate was statistically signiﬁcant between Group 1 and Group 3 (P=0.005), and between Group 2 and Group 3 (P=0.003) (Figure 3B). Considering these results, cavity wall thickness could be recategorized into two groups in the following analysis, namely, 15 mm or smaller (Group 1 + Group 2) and larger than 15 mm (Group 3).

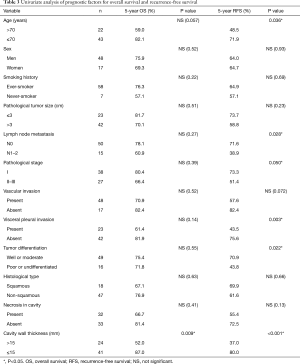

Univariate analysis indicated that cavity wall thickness was a statistically signiﬁcant prognostic factor for OS, and that age, lymph node metastasis, pathological stage, vascular invasion, VPI, tumor differentiation, and cavity wall thickness were signiﬁcant prognostic factors for RFS (Table 3). Multivariate analysis showed that cavity wall thickness was a statistically significant prognostic factor for OS [hazard ratio (HR), 3.57; 95% confidence interval (CI), 1.22–10.48; P=0.020] and that age (HR, 3.18; 95% CI, 1.33–7.62; P=0.009) and cavity wall thickness (HR, 3.20; 95% CI, 1.35–7.63; P=0.009) were significant prognostic factors for RFS (Table 4).

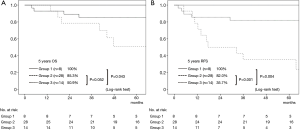

A cohort of the patients without lymph node metastasis showed similar results. The difference in the OS rate was signiﬁcant between Group 1 and Group 3 (P=0.043), and the 5-year OS rate of Group 2 was worse than that of Group 3, although not statistically significant (P=0.052) (Figure 4A). Regarding RFS curves, there was a statistically significant difference between Group 1 and Group 3 (P=0.004), and between Group 2 and Group 3 (P=0.001) (Figure 4B). Multivariate analysis showed that cavity wall thickness was a statistically significant prognostic factor for OS (HR, 4.69; 95% CI, 1.12–19.69; P=0.035) and that cavity wall thickness (HR, 5.45; 95% CI, 1.59–18.64; P=0.007) was a significant prognostic factor for RFS (Table S1).
Tumor size, especially solid tumor size, is an important prognostic factor to determine the T factor of the TNM classification (8th edition) in patients with lung cancers (21). In lung cancers with part-solid ground-glass nodules, a solid lesion from radiological findings indicates invasive area of the tumor, and was therefore reported to be associated with prognosis (22,23). There were reports that tumor volume affected the outcome of patients with lung cancer (24). However, lung cancers with cavity formation have less actual tumor volume compared with the whole solid lesion even if the tumor diameter is the same. As mentioned above, it might be unclear whether the whole tumor size is a relevant prognostic factor in lung cancers with cavity formation. Cavity wall thickness may reflect tumor volume with cavity formation.
There were several reports about cavity wall thickness in lung cancer (18,25). Woodring et al. reported that maximum cavity wall thickness provided reliable information to distinguish between benign lesions and malignant lesions (18). Of the lesions 4 mm or smaller in thickness, 92% were benign. Of those greater than 15 mm, 95% were malignant. Watanabe et al. analyzed receiver-operating characteristic curves of the cavity wall thickness predicting disease-speciﬁc survival, with a cutoff value of 4.5 mm. The surgically resected adenocarcinoma patients with cavity formation were categorized into two groups stratified by the cutoff value of 4 mm of cavity wall thickness (25).
The prevalence of lung cancer with cavity formation reported previously was 2–25% (16,26-28). These variations are explained by the differences in methods of selection. It might depend on time periods in the studies or the prevalence rate of infectious pulmonary diseases during these periods. Our series, which was reviewed by chest CT findings for the patients with surgically resected NSCLC, showed that the prevalence was 5.0%.
Several reports showed that the presence of a cavity was a poor prognostic factor in patients with NSCLC (6-8). Meanwhile, Pentheroudakis et al. reported that there were no statistically significant differences in survival between patients with squamous lung carcinoma with cavity and with solid lesions, but this report included advanced cases that received chemotherapy or radiotherapy (29). Watanabe et al. recently demonstrated that cavity wall thickness was a prognostic factor for cavitary adenocarcinomas, particularly for early stage cancers. The 5-year OS of stage I patients with thin-wall (thickness ≤4 mm) and thick-wall (thickness >4 mm) was 91.5% and 70.1%, respectively (P<0.01) (25).
In our series, cavity wall thickness had a statistically significant association with prognosis. First, Table 2 shows there were significant relationships both between wall thickness and tumor size, and between wall thickness and lymph node metastasis. Second, Group 1 had 100% as both OS rate and RFS rate, and Group 3 had the worst prognosis (Figure 3A,B). However, tumor size and lymph node metastasis were not prognostic factors for OS (P=0.51 and P=0.27, respectively) in our cases (Table 3). Third, multivariate analysis demonstrated that cavity wall thickness was a prognostic factor for OS and RFS, whereas tumor size, lymph node metastasis, or pathological stage showed no statistical significance (Table 4). Furthermore, the cohort of the patients without lymph node metastasis showed similar results in which cavity wall thickness was also statistically a prognostic factor (Figure 4A,B). Therefore, our results indicated that cavity wall thickness was most essential for establishing prognosis and treatment strategy in NSCLC patients with cavity formation.
Although the mechanism of cavity formation is often difficult to ascertain, there were explanations of several mechanisms of cavity development in primary lung cancer (16,17,30). The lesion might be caused by necrosis of the primary cancer growth itself, it might arise in the distal portion of the lung by causing bronchial obstruction and a check-valve mechanism or originate in the wall of a pre-existing cystic lesion, or it might develop by neoplastic cell autophagy due to a particular enzymatic system which it secreted. The main factors for tumor necrosis were considered to be due to bronchial obstruction and vascular invasion leading to ischemia. In lung adenocarcinoma, recent reports demonstrated that the incidence of vascular invasion was higher in cavitary cases than in non-cavitary cases and that cases with cavity wall thickness larger than 4 mm had a higher frequency of vascular invasion or necrosis than those with cavity wall thickness 4 mm or smaller (7,25). Our series showed that 96% of the patients in Group 3 had vascular invasion and that 71% of the patients in Group 3 had necrosis in the cavity. Cavity wall thickness was associated with both vascular invasion and necrosis, although there was a difference in prevalence. It was possible that necrosis was not always detected due to washing out during the surgical procedure or when the surgical specimen was prepared for fixation or something else. For the histopathological types, cavity formation in lung cancer was found the most frequently in squamous cell carcinoma (67–82%), and was relatively less common in other types of NSCLC (16,27,31). The proportion of squamous cell carcinoma was only 28% in this study. It might depend on a decrease in typical large-sized squamous cell carcinoma with necrosis due to a recent multiplication of small-sized adenocarcinomas.

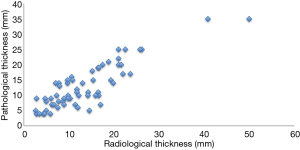

There were some limitations and biases in the present study, as this is a retrospective analysis in a single institution. The measurement of cavity wall thickness was made by radiological findings, not pathological findings. It was often difficult to measure pathological maximum thickness of the cavity wall accurately, because a sample of cavitary lesion might occasionally collapse and not keep its original configuration during the surgical or pathological procedure, including sample fixation. The pathological thickness could be measured in 61 cases, and there was a positive correlation between radiological thickness and pathological thickness (Figure S2). Even though our series included heterogeneous pathological types of NSCLC, only one of the 14 patients with adenocarcinoma who had recurrence was treated with epidermal growth factor receptor tyrosine kinase inhibitor, which did not significantly affect the above results (data not shown). Nevertheless, our present series revealed highly essential information for NSCLCs with cavities that their wall thickness enabled prognosis rather than tumor size. Multi-institutional studies are mandatory to further validate cavity wall thickness as a prognostic factor for those patients with cavitary-formed NSCLCs due to their relatively low population.
In conclusion, the prevalence of cavity formation in NSCLC was low; however, maximum cavity wall thickness was an important prognostic factor in NSCLCs with cavity formation, comparable with other established prognostic factors. Evaluating wall thickness should help us in deciding on therapeutic options, including minimum resection or conversely extended lymph node dissection. Moreover, we should consider following a more intensive follow-up schedule to detect their recurrence at the earliest opportunity, basing the evaluation on wall thickness.
We are indebted to the medical editors from the Department of International Medical Communications for editing and reviewing the English manuscript.
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: The Institutional Review Board of our hospital approved the protocols for data collection and analyses, and waived the need to obtain written informed consent from each patient (No. 2016-224).
