Endobronchial ultrasound-guided fine-needle aspiration for pulmonary carcinomas genotyping: experience with 398 cases including rapid EGFR/KRAS analysis in 43 cases
Original Article of Interventional Pulmonology Corner

Endobronchial ultrasound-guided fine-needle aspiration for pulmonary carcinomas genotyping: experience with 398 cases including rapid EGFR/KRAS analysis in 43 cases

Maria-Rosa Ghigna1, Adrian Crutu2, Valentina Florea2, Séverine Feuillet-Soummer2, Pierre Baldeyrou2, Julien Adam3, Ludovic Lacroix3, Benjamin Besse4, Olaf Mercier2, Elie Fadel2, Peter Dorfmuller1, Rida El Ayoubi1, Vincent Thomas de Montpréville1

1Department of Pathology, 2Department of Thoracic and Vascular Surgery and Heart-Lung Transplantation, Marie Lannelongue Hospital, Le Plessis Robinson, France;3Department of Pathology and Medical Biology, 4Department of Medical Oncology, Gustave Roussy University Hospital, Villejuif, France

Contributions: (I) Conception and design: MR Ghigna, V Thomas de Montpréville; (II) Administrative support: O Mercier, É Fadel, V Thomas de Montpréville; (III) Provision of study materials or patients: MR Ghigna, A Crutu, V Florea, S Feuillet-Soummer, P Baldeyrou, J Adam, L Lacroix; (IV) Collection and assembly of data: MR Ghigna, V Thomas de Montpréville; (V) Data analysis and interpretation: MR Ghigna, V Thomas de Montpréville; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Vincent Thomas de Montpréville, MD. Service d’Anatomie Pathologique, Hôpital Marie Lannelongue, 133 Avenue de la Résistance, Le Plessis Robinson 92350, France. Email: v.thomasdemontpreville@ccml.fr.

Background: Endobronchial ultrasound-guided fine-needle aspiration (EBUS-FNA) of mediastinal lymph nodes is a minimally invasive and efficient tool for both diagnosis and staging of lung cancer. EBUS-FNA also permits tumor genotyping. However this critical datum for the therapeutic management is often long to obtain for metastatic patients with short life expectancy.

Methods: From May 2011 to December 2017, 398 lung cancer patients underwent a genetic analysis based on EBUS-FNA samples. EBUS-FNAs were performed with rapid on-site evaluation. Mutations were studied with Sanger or new generation sequencing. Forty-three cases were also tested with a fully automated real-time PCR rapid technique. ALK abnormalities were assessed by immunohistochemistry and/or in situ hybridization.

Results: A genotypic result could be obtained in 316 cases (79.4%) and in 180 of the 198 more recent cases (90.9%). Genetic abnormalities were observed in 191 cases (48.0%). Using the rapid technique, EGFR/KRAS mutational status was obtained within a few hours following the histological diagnosis and on the same day of the EBUS-FNA by analyzing fresh specimens after intra-operative cytological diagnosis.

Conclusions: In term of molecular diagnosis, EBUS-FNA provides high-quality biological material similar to that of other clinical sampling methods. Furthermore, our study suggests that a rapid molecular diagnostic method could lead to a prompt and appropriate therapeutic management for many advanced stage patients.

Keywords: Endobronchial ultrasound-guided fine-needle aspiration (EBUS-FNA); lung cancer; molecular pathology; fully automated real-time PCR

Submitted Mar 11, 2018. Accepted for publication May 28, 2018.

doi: 10.21037/jtd.2018.06.157


Endobronchial ultrasound-guided fine-needle aspiration (EBUS-FNA) is an accurate and safe method for establishing a histological diagnosis, for the staging (1), but also for the genotyping (2) of lung carcinomas.

Mediastinal lymph node metastases from pulmonary carcinomas, proven by EBUS-FNA, commonly imply a non-surgical systemic treatment. This treatment must be promptly implemented since lung carcinomas are aggressive tumors (3). The type of treatment depends on possible targetable genetic alterations (4). However tumor genotyping is generally a long and complex process (5) and patients may have to start treatment before biomarkers results are available (6). We have shown that a simple-to-use method could rapidly provide epidermal growth factor receptor (EGFR) and Kirsten rat sarcoma viral oncogene (KRAS) status in lung carcinomas (7). We herein report our experience with EBUS-FNA and lung carcinoma genotyping, focusing on how EBUS-FNA is significantly improved by such a rapid molecular diagnostic tool.


All patients, having an EBUS-FNA that permitted a diagnosis of pulmonary non-small cell carcinoma and that required genotyping, from May 2011 to December 2017 (6 years and 7 months), were included in the study. There were 133 female and 265 male patients aged 34 to 92 years (mean 63.8±10.7).

EBUS-FNAs were performed under moderate sedation or less often under general anesthesia with bronchoscopes fitted with color Doppler ultrasound capability and a 21-gauge needle. Lymph node stations were selected for their positivity on positron emission tomography. Subcarinal and right lower paratracheal lymph nodes were more frequently sampled. However, all other accessible stations (upper paratracheal, left lower paratracheal, hilar, interlobar or lobar) were punctured if needed. Two to eight passes (3 passes on average) per lymph node were performed. A part of the aspirates was smeared on cytology slide and stained with toluidine blue for rapid on site evaluation. Aspirates were afterwards formalin-fixed and paraffin-embedded (FFPE).

Carcinomas were classified according to the 2015 WHO classification (3). Immunohistochemistry and mucin stain (alcian blue) were performed if necessary, according to the current diagnostic recommendations (8). Antibodies against TTF1, p63 and Keratin 7 were used with a Ventana BenchMark GX automated stainer. There were 234 adenocarcinomas, 52 squamous cell carcinomas and 112 non-small cell carcinomas not otherwise specified.

For molecular genotyping, paraffin blocks or blank slides and paraffin shavings were sent to Gustave Roussy University Hospital. Before 2016, mutation assessment was performed by gene amplification with PCR and direct sequencing of exons 18 to 21 of EGFR gene (GeneBank NM005228.3). Exons 2 and 3 of K-RAS gene (NM033360-2), exon 15 of BRAF gene (NM004333.4), exons 10 and 21 of PIK3CA gene (NM006218.2) and exon 20 of HER2 gene (NM 004448.2). Since January 2016, molecular analyses were performed with Vela Diagnostics CE-IVD Sentosa® SQ NSCLC Panel for Next-Generation Sequencing. ALK immunohistochemistry was performed in Gustave Roussy University Hospital, or in Marie Lannelongue Hospital since January 2017, using an anti-ALK antibody (clone 5A4 Zytomed Systems). In situ hybridization was performed with Vysis ALK break apart probe kit (Abbott).

In recent cases, EGFR and KRAS mutational status was also assessed in the department of pathology at Marie Lannelongue Hospital, using the fully automated real-time polymerase chain reaction based Idylla™ (Biocartis, Mechelen, Belgium) system as previously reported (7). Briefly, this system is intended for the detection of 52 mutations in the EGFR oncogene: exon 18 (G719A/S/C), exon 21 (L858R, L861Q), exon 20 (T790M, S768I) mutations, exon 19 deletions and exon 20 insertions, and for the detection of 21 mutations in codons 12, 13, 59, 61, 117 and 146 of KRAS oncogene. Tests were performed on sections of FFPE material. These tests could also be performed on fresh material (20 µL of fluid) after making a diagnosis on intra-operative cytology. KRAS and EGFR were tested first separately in smoker and non-smoker patients, respectively. The second gene was not tested in case of positivity since EGFR and KRAS mutations are generally mutually exclusive (9). Among the 43 patients who benefited from this rapid technique, 17 were stage III, 22 were stage IV, 10 were nonsmokers and 29 were smokers (more than 10 pack-years).

Genetic diagnoses were compared with those obtained similarly with tissue from the pulmonary tumor when available.

This study had the approval of the Ethics Committee of Marie Lannelongue Hospital (CCML 25-2016, 5th September 2016).


A genetic diagnosis was obtained in 316 of the 398 cases (79.4%) and in 180 of the 198 (90.9%) more recent cases (2015 to 2017). Noncontributory cases were related to insufficient tumor cellularity or to unsuccessful DNA amplification. Abnormalities were detected in 191 cases (48.0%), including 30 cases with EGFR mutations, 90 cases with KRAS mutations and 11 cases with ALK rearrangement (Figure 1). In 35 cases, a genetic analysis was also performed on tissue sample from the pulmonary lesion. Results were identical in 24 cases. In 8 cases with noncontributory EBUS-FNA samples, a diagnosis was obtained on surgical samples (n=6), bronchial biopsy (n=1) or transthoracic needle biopsy (n=1). On the contrary, in three cases, the genetic diagnosis was obtained with EBUS-FNA sample while transthoracic needle biopsy was noncontributory.

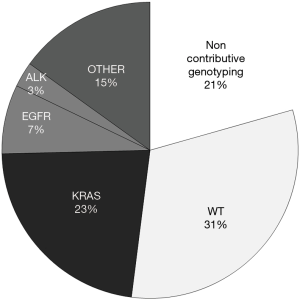

Figure 1 Percentages of genetic abnormalities observed in the series of 398 pulmonary lung carcinomas based on material obtained from endobronchial ultrasound-guided fine-needle aspiration. WT, wild type for all tested genetic abnormalities.

With the usual procedure (external platform), the first molecular diagnosis (including EGFR) was obtained within 3 weeks or less in 275 cases (69%) but never in less than 8 days after sampling of the patient (Figure 2).

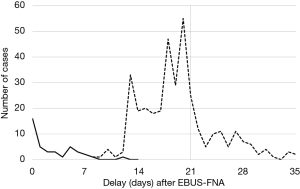

Figure 2 Comparison of the delay for EGFR/KRAS mutational status by the on-site rapid Idylla™ system (continuous line) with the delay for the first molecular result including EGFR by the external biopathological platform (line with dashes).

With the rapid technique performed locally in 43 cases, the EGFR/KRAS mutational status could be obtained within a few hours after histological diagnosis; in fact it was obtained in 1 week or less in 38 cases (88.4%) and even on the very day of the EBUS-FNA procedure in 16 cases (Figure 2). In the 43 cases, our sequential testing method permitted to avoid 13 EGFR tests and 6 KRAS tests, which the external platform later proved to be negative and were thus useless. Specificity and sensitivity of this rapid technique were 100% and 80% for EGFR and 100% and 87% for KRAS, respectively. In 3 cases, a mutation was not detected by the IdyllaTM system: EGFR T790M, KRAS G13C (mutation that is not tested by this technique) and KRAS G12C. Conversely, in 1 case the IdyllaTM system identified a KRAS G12C mutation that had not been detected initially by the routine reference method.

Otherwise, two cases of pneumothorax and one case of transitory respiratory failure occurred after bronchoscopy. These minor complications only required medical management of the patients. There was no major complication, no significant bleeding and no death.


EBUS-FNA is a minimally invasive method for tissue sampling of mediastinal lymph nodes (10). Our study confirms its importance in the genotyping of pulmonary carcinomas. Indeed, this technique has been shown to be as effective as surgical procedures for complete mutational testing of non-small cell carcinomas (11-13). With the development of immunotherapy other biomarkers are routinely required and samples obtained by EBUS-FNA also appear suitable for the evaluation of PD-L1 expression in lung cancer (14). The diagnostic accuracy rate of EBUS-FNA has been reported to increase with time according to a learning curve (1). In our experience the implementation of more performing techniques also certainly contributes to the improvement of the diagnostic quality.

In a recent study, we have shown that the IdyllaTM system could be used in everyday practice for assessing EGFR and KRAS status in lung carcinomas (7) even in routine diagnostic units of any hospital, without molecular expertise and infrastructure, without complex training and with very good specificity and sensitivity. This was confirmed in another series (15) and for EGFR on cytological specimens (16). Unfortunately, the KRAS IdyllaTM cartridge has been initially designed for colorectal cancer (17) and this made us miss a non-targeted G13C mutation, which represent up to 3% of KRAS mutations in lung carcinomas (9). In our experience the main advantages of the IdyllaTM system are rapidity and ease of use, making molecular analysis even simpler than immunohistochemistry with explicit results requiring no specialized interpretation. IdyllaTM system for EGFR and KRAS status must be used in association with immunohistochemistry for ALK, ROS1 and PDL1. These rapid techniques can provide the most needed biomarkers at the time of histological diagnosis of lung carcinoma and their results can be included in the initial pathological report. Complex and time-consuming techniques (in situ hybridization, DNA sequencing) can be performed secondarily, usually by external biopathological platforms. Sequential testing is supposed to cause delay but this is not the case for rapid techniques that can be used in combination with multiplex platforms. Indeed, EGFR and KRAS mutations sequential testing in lung carcinoma, by selecting the gene that is most likely to be mutated, can be a pragmatic more cost-effective approach (8,18) since EGFR and KRAS mutations occur in different clinical and histological settings (7) and mutations of these genes are virtually always mutually exclusive (19).

Such a rapid molecular diagnostic procedure is totally fitted to EBUS-FNA: EBUS-FNA is itself a rapid technique and when confirming mediastinal involvement is generally an indication to prompt medical treatment. During our study, the rapidity of the diagnosis was very appreciated by clinicians. However, we could not assess the real impact on the therapeutic management since both clinicians and patients were informed of pending results by the usual reference method.

Rapid on-site evaluation is an intra-operative cytological assessment of EBUS-FNA samples. It has been reported to be associated with lesser number of needle passes (20), to be helpful in providing a preliminary diagnosis (21) and to improve the adequacy for molecular testing (22). This rapid on-site evaluation is a current practice in our hospital and we have found it very useful for selecting fresh material for immediate molecular analysis, thus also reducing the time for a definite diagnosis. The smear can be used for the pre-analysis. Molecular testing of fresh specimens rather than formalin fixated and paraffin embedded material (19) permits analysis of non-deteriorated DNA (23). It was very convenient and useful to have an available system ready to use in our department.

In conclusion, our study shows that, with the help of rapid, cost-effective and easy-to-use molecular techniques, EBUS-FNA has the potential to become even more efficient to meet the need of oncologists for enabling a more rapid initiation of appropriate therapy in lung cancer patients.


We thank Mrs. Nathalie Baussart, Mrs. Caroline Communaux, Mr. Philippe Dumet, Mrs. Dominique Gimond, Mrs. Sylvie Planté, Mrs. Idalina Ramos and Mrs. Jocelyne Taiclet for their skilled technical and secretarial assistances.


Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was approved by the Ethics Committee of Marie Lannelongue Hospital (No. CCML 25-2016).


  1. Lin CK, Lai CL, Chang LY, et al. Learning curve and advantages of endobronchial ultrasound-guided transbronchial needle aspiration as a first-line diagnostic and staging procedure: EBUS-TBNA shortens lung cancer staging. Thorac Cancer 2018;9:75-82. [Crossref] [PubMed]
  2. Reynolds JP, Tubbs RR, Minca EC, et al. EGFR mutational genotyping of liquid based cytology samples obtained via fine needle aspiration (FNA) at endobronchial ultrasound of non-small cell lung cancer (NSCLC). Lung Cancer 2014;86:158-63. [Crossref] [PubMed]
  3. Travis WD, Brambilla E, Burke AP, et al. WHO classification of tumours of lung, pleura, thymus and heart (4th edition). IARC: Lyon, 2015.
  4. Powell C, Brambilla E, Bubendorf L, et al. Molecular testing for treatment selection in lung cancer. In: Travis WD, Brambilla E, Burke A, et al. editors. WHO classification of tumours of the lung, pleura, thymus and heart. IARC: Lyon, 2015:22-5.
  5. Barlesi F, Mazieres J, Merlio JP, et al. Routine molecular profiling of patients with advanced non-small-cell lung cancer: results of a 1-year nationwide programme of the French Cooperative Thoracic Intergroup (IFCT). Lancet 2016;387:1415-26. [Crossref] [PubMed]
  6. Lim C, Tsao MS, Le LW, et al. Biomarker testing and time to treatment decision in patients with advanced nonsmall-cell lung cancer. Ann Oncol 2015;26:1415-21. [Crossref] [PubMed]
  7. Thomas De Montpréville V, Ghigna MR, Lacroix L, et al. EGFR and KRAS molecular genotyping for pulmonary carcinomas: Feasibility of a simple and rapid technique implementable in any department of pathology. Pathol Res Pract 2017;213:793-8. [Crossref] [PubMed]
  8. Dietel M, Bubendorf L, Dingemans AMC, et al. Diagnostic procedures for non-small-cell lung cancer (NSCLC): recommendations of the European Expert Group. Thorax 2016;71:177-84. [Crossref] [PubMed]
  9. Karachaliou N, Mayo C, Costa C, et al. KRAS mutations in lung cancer. Clin Lung Cancer 2013;14:205-14. [Crossref] [PubMed]
  10. Ghigna MR, Crutu A, Florea V, et al. The role of endobronchial ultrasound-guided fine needle aspiration in the diagnosis of pleural mesothelioma. Cytopathology 2016;27:284-8. [Crossref] [PubMed]
  11. Casadio C, Guarize J, Donghi S, et al. Molecular testing for targeted therapy in advanced non-small cell lung cancer: suitability of endobronchial ultrasound transbronchial needle aspiration. Am J Clin Pathol 2015;144:629-34. [Crossref] [PubMed]
  12. Folch E, Yamaguchi N, VanderLaan PA, et al. Adequacy of lymph node transbronchial needle aspirates using convex probe endobronchial ultrasound for multiple tumor genotyping techniques in non-small-cell lung cancer. J Thorac Oncol 2013;8:1438-44. [Crossref] [PubMed]
  13. Righi L, Franzi F, Montarolo F, et al. Endobronchial ultrasound-guided transbronchial needle aspiration (EBUS-TBNA)—from morphology to molecular testing. J Thorac Dis 2017;9:S395-404. [Crossref] [PubMed]
  14. Sakakibara R, Inamura K, Tambo Y, et al. EBUS-TBNA as a promising method for the evaluation of tumor PD-L1 expression in lung cancer. Clin Lung Cancer 2017;18:527-34. [Crossref] [PubMed]
  15. Lambros L, Caumont C, Guibourg B, et al. Evaluation of a fast and fully automated platform to diagnose EGFR and KRAS mutations in formalin-fixed and paraffin-embedded non-small cell lung cancer samples in less than one day. J Clin Pathol 2017;70:544-9. [Crossref] [PubMed]
  16. De Luca C, Gragnano G, Pisapia P, et al. EGFR mutation detection on lung cancer cytological specimens by the novel fully automated PCR-based Idylla EGFR Mutation Assay. J Clin Pathol 2017;70:295-300. [Crossref] [PubMed]
  17. Solassol J, Vendrell J, Märkl B, et al. Multi-center evaluation of the fully automated PCR-based IdyllaTM KRAS Mutation Assay for rapid KRAS mutation status determination on formalin-fixed paraffin-embedded tissue of human colorectal cancer. Souglakos J, éditeur. PLoS One 2016;11:e0163444.
  18. Walsh K, Kheng YC, Oniscu A, et al. Could molecular pathology testing in lung cancer be more cost-effective? J Clin Pathol 2016;69:938-41. [Crossref] [PubMed]
  19. Linderman NI, Cagle PT, Beasley MB, et al. Molecular testing guideline for selection of lung cancer patients for EGFR and ALK tyrosine Kinase inhibitors. Guideline from the college of American pathologists, international association for the study of lung cancer, and association for molecular pathology. J Mol Diagn 2013;15:415-53. [Crossref] [PubMed]
  20. Sehgal IS, Dhooria S, Aggarwal AN, et al. Impact of rapid on-site cytological evaluation (ROSE) on the diagnostic yield of transbronchial needle aspiration during mediastinal lymph node sampling. Chest 2018;153:929-38. [Crossref] [PubMed]
  21. Jain D, Allen TC, Aisner DL, et al. Rapid on-site evaluation of endobronchial ultrasound-guided transbronchial needle aspirations for the diagnosis of dung dancer: a perspective from members of the pulmonary pathology society. Arch Pathol Lab Med 2018;142:253-62. [Crossref] [PubMed]
  22. Sung S, Crapanzano JP, DiBardino D, et al. Molecular testing on endobronchial ultrasound (EBUS) fine needle aspirates (FNA): Impact of triage. Diagn Cytopathol 2018;46:122-30. [Crossref] [PubMed]
  23. Pirker R, Herth FJ, Kerr KM, et al. Consensus for EGFR mutation testing in non-small cell lung cancer: results from a European workshop. J Thorac Oncol 2010;5:1706-13. [Crossref] [PubMed]
Cite this article as: Ghigna MR, Crutu A, Florea V, Feuillet-Soummer S, Baldeyrou P, Adam J, Lacroix L, Besse B, Mercier O, Fadel E, Dorfmuller P, El Ayoubi R, Thomas de Montpréville V. Endobronchial ultrasound-guided fine-needle aspiration for pulmonary carcinomas genotyping: experience with 398 cases including rapid EGFR/KRAS analysis in 43 cases. J Thorac Dis 2018;10(7):4653-4658. doi: 10.21037/jtd.2018.06.157
