Interstitial lung disease (ILD) is one of the most important extra-articular manifestations in patients with rheumatoid arthritis (RA). RA-ILD is associated with high morbidity and mortality (1,2). The presence of a usual interstitial pneumonia (UIP) pattern on radiological and/or histological analysis was shown to be a poor prognostic factor (3-5). Thus, distinguishing the UIP pattern from other patterns in RA-ILD may provide important clinical information on decision-making for treatment and prognosis. Most RA patients have received anti-RA drugs to treat the arthritis itself, and this may have already modified ILD activity (6). Moreover, thoracic surgical procedures in patients with RA-ILD might result in high risk of in-hospital death (7). Therefore, histological analysis should be not routinely performed in most RA-ILD patients, and we think that radiological analysis is particularly important.
In previous reports, radiological analysis, especially by high-resolution computed tomography (HRCT), is used for classification of patterns in patients with RA-ILD. These HRCT patterns are classified primarily as UIP, nonspecific interstitial pneumonia (NSIP), or organizing pneumonia (OP) pattern based on the statement of the American Thoracic Society (ATS)/European Respiratory Society (ERS) in 2002 or ATS/ERS/Japanese Respiratory Society (JRS)/Latin American Thoracic Association (ALAT) in 2013 (8,9). CT can help in accurately identifying UIP patterns indicating a poor prognosis in RA-ILD (10). However, an overlapping or indeterminate pattern (i.e., unclassifiable pattern other than UIP, NSIP, and OP) is present to some extent (6–52%) in the RA-ILD population because connective tissue disease (CTD) including RA-ILD presents a diversity of patterns (4,11). Although most studies report UIP and NSIP as being the most common patterns, coexistence of UIP and NSIP is common in RA-ILD (12,13). This might result in varied prediction of mortality. In fact, the 2018 ATS/ERS/JRS/ALAT clinical practice guideline for idiopathic pulmonary fibrosis (IPF) proposed the radiological category of indeterminate for UIP, which might be included in a category consistent with a non-IPF diagnosis such as hypersensitivity pneumonia or CTD-ILD, with clinicians applying a level of confidence based on the extent of the inconsistent features (14). Therefore, the aim of the present study was to clarify predictive factors of mortality by using HRCT pattern classification based on the recent guideline.

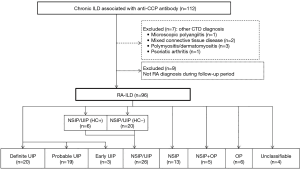

This study was approved by the institutional review board of Saitama Red Cross Hospital (approval no. 18-AE). We retrospectively surveyed chronic ILD patients who were positive for anticyclic citrullinated peptide (anti-CCP) antibody at our hospital between January 2012 and December 2017 (Figure 1). A diagnosis of RA was made in these patients according to the American College of Rheumatology/European League Against Rheumatism Criteria by rheumatology specialists (15). We then collected data from each patient’s medical record that included characteristics, laboratory data, pulmonary function, and chest CT findings at the time of ILD diagnosis. Among the patients with anti-CCP antibody-positive ILD, 7 patients with CTD other than RA, such as microscopic polyangiitis (N=1), mixed CTD (N=2), polymyositis/dermatomyositis (N=3), and psoriatic arthritis (N=1), were excluded. In addition, 9 patients with anti-CCP-positive ILD who did not develop RA during the follow-up period were also excluded. The remaining patients who were classified as having RA-ILD were also included in this study.
Baseline clinical measures were obtained within 3 months of the initial diagnosis of ILD. Each subject’s radiological findings were reviewed by two expert pulmonologists (S Sato and H Matsushima) who were blinded to the subject’s clinical data. First, patients were classified as presenting a HRCT pattern of definite UIP, probable UIP (Figure 2A,B), indeterminate for UIP, or alternative diagnosis (Figure 2C,D,E,F,G,H,I) according to the recent guideline (14). In this study, the presence of co-existing small airway disorders such as mosaic attenuation and centrilobular nodules was ignored because a high prevalence of airway abnormalities has been observed in the RA population (16,17). Second, we created a modified HRCT classification as follows. The alternative diagnosis was classified as NSIP, NSIP + OP, OP, and unclassifiable according to previous reports (18). Predominant basilar ground-glass opacity (GGO) with limited to no reticulation and absence of honeycombing were consistent with NSIP (Figure 2D,E,F) (18). NSIP + OP was identified when consolidations were superimposed on a background of GGO with or without reticulations or traction bronchiectasis (18). Moreover, indeterminate for UIP was also classified as early UIP (Figure 2C) and NSIP/UIP (Figure 2G,H,I) according to the extent of GGO or distribution of abnormal shadows (i.e., reticulations and GGO) (Figure 3). For example, even if GGO was inconspicuous, both central distribution of reticulation with traction bronchiectasis and subpleural reticulations with or without honeycombing in the lower lung were comparable with NSIP/UIP (Figure 2H,I). For combined pulmonary fibrosis with emphysema (CPFE), positive findings of emphysema were visually deﬁned as presence of a low attenuation indicating the lack of a distinct alveolar wall threshold over 10% (19). Honeycombing is defined as clustered cystic air spaces with typically comparable diameters of 3–10 mm in subpleural and lower lobes with well-defined walls (14).
Disagreements between the two pulmonologists after the first assessment were resolved by discussion. Acute exacerbation (AE) was defined based on a previous study, which required all five of the following criteria be met: (I) previous diagnosis of RA-ILD; (II) unexplained worsening of dyspnoea within 30 days; (III) new bilateral GGOs and/or consolidations; (IV) no evidence of pulmonary infection on negative respiratory culture, and (V) exclusion of alternative causes such as left heart failure, pulmonary embolism, or identifiable cause of lung injury (20).
The follow-up period was calculated from the date of initial ILD diagnosis until the last visit or time of death. To detect differences between groups, Fisher’s exact test or one-way analysis of variance (ANOVA) was used as appropriate. We investigated potential risk factors of mortality with each variable chosen for entry into univariate Cox regression analysis and performed multivariate Cox regression analysis with forward variable selection. The Kaplan-Meier method and log-rank test were used to display and compare survival curves for the cohort stratified for each group. We considered P<0.05 to indicate statistical significance. All data were analysed with SPSS version 22.0 (IBM Japan, Tokyo, Japan).
Overall patient characteristics

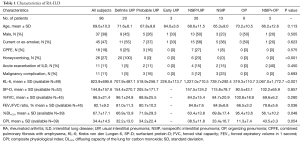

We identified 96 patients with RA-ILD. They were predominantly female (61%) and never-smokers (53%) with a mean age of 69 years at the diagnosis of ILD (Table 1). During follow-up, 46 patients (48%) had ILD preceded by RA (median follow-up: 3.5 years; range, 0.9–42.9 years), whereas 16 patients (17%) with anti-CCP-positive ILD developed RA (median follow-up: 3.9 years; range, 1.2–10.3 years). Thirty-four patients (35%) were simultaneously diagnosed as having both RA and ILD within 6 months.
A radiologically definite UIP pattern was present in 21% (N=20) of the RA-ILD patients (Figure 1). Other radiological patterns of ILD included probable UIP (20%, N=19), indeterminate for UIP (30%, N=29), and alternative diagnosis (29%, N=28) according to the recent IPF guideline. Our modified HRCT classification included patients with early UIP (3%, N=3) and NSIP/UIP (27%, N=26), of which some patients were indeterminate for UIP. The alternative diagnosis category included patients with NSIP (14%, N=13), OP (6%, N=6), NSIP + OP (5%), and unclassifiable disease (4%, N=4). Of the patients with NSIP/UIP, 6 had honeycombing and 20 did not. Observer agreement (κ value) for each of HRCT pattern, honeycombing, and CPFE were 0.75, 0.79, and 0.69, respectively.
Serum Krebs von den Lungen-6 (KL-6) was significantly higher in the patients with NSIP + OP but lower in the patients with OP and early UIP (Table 1). Pulmonary function testing showed the forced expiratory volume in 1 second/forced vital capacity (FVC) ratio to be significantly lower in the patients with OP and NSIP+OP, whereas diffusing capacity of the lung for carbon monoxide (DLCO) (%, predicted) was significantly higher in the patients with OP.

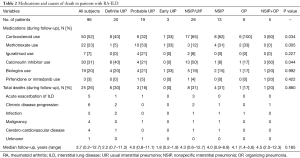

As medication used for RA itself or RA-ILD during follow-up, prednisolone was used in all OP patients, but it tended to be less frequently used in UIP such as definite, probable, and early UIP (P=0.034) (Table 2). Methotrexate was more frequently used in probable UIP (53%), and less frequently used in definite UIP (5%) and NSIP/UIP (12%) (P=0.005). Calcineurin inhibitors such as cyclosporine or tacrolimus were more frequently used in the patients with definite UIP and NSIP/UIP (P=0.044).

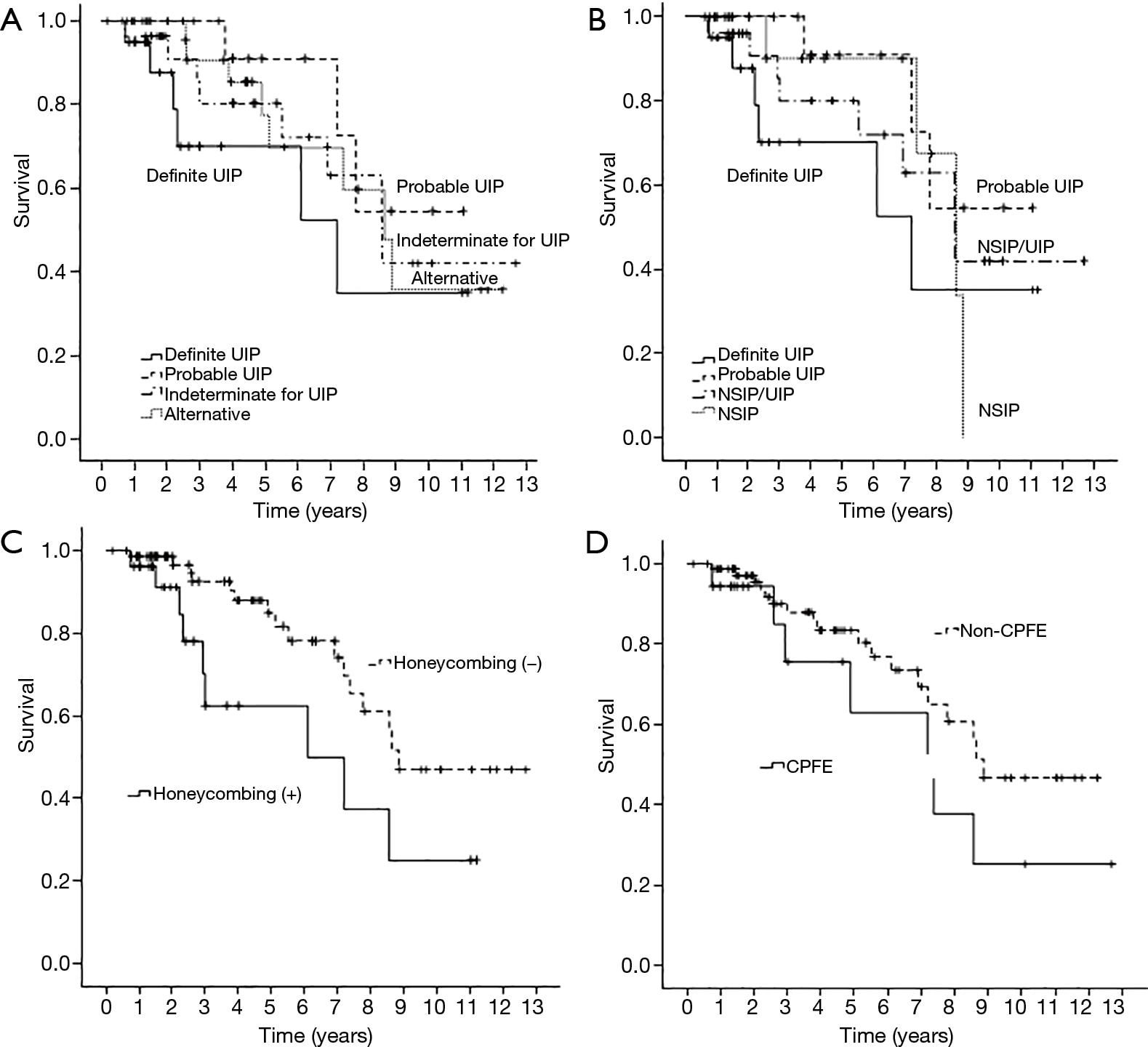

Death from any cause occurred in 25 patients (26%) over a median follow-up period of 3.7 years. There were no significant differences in survival between the patients with definite UIP, probable UIP, indeterminate for UIP, and alternative diagnosis (log rank P=0.397) (Figure 4A). In our modified HRCT classification analysed for 4 groups because there were too few subjects in other groups, there was no difference in survival between patients with definite UIP, probable UIP, NSIP/UIP, and NSIP (log rank P=0.447) (Figure 4B). Cumulative 5-year survival rates were 70.2% in definite UIP, 90.9% in probable UIP, 80.0% in NSIP/UIP, and 90.0% in NSIP patients, respectively. Median survival for patients with definite UIP was 6.8 years [95% confidence interval (CI): 4.4 to 9.2]; with probable UIP, 9.1 years (95% CI: 7.4 to 10.8); with NSIP/UIP, 8.6 years (95% CI: 6.6 to 10.7); and with NSIP, 7.8 years (95% CI: 6.4 to 9.2). Patients with positive findings of radiological honeycombing had significantly worse survival than those without honeycombing (log rank P=0.024) (Figure 4C). However, survival of patients with CPFE was not significantly different from that of patients without CPFE (log rank P=0.174) (Figure 4D).

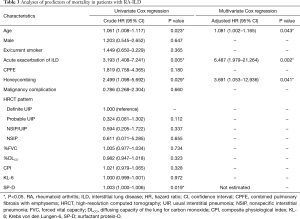

Older age, history of AE, radiological honeycombing, and higher level of serum surfactant protein-D were significant predictors of mortality by univariate analysis. Multivariate Cox proportional hazards analysis showed older age [hazard ration (HR) 1.081, 95% CI: 1.002 to 1.165], history of AE (HR 6.487, 95% CI: 1.979 to 21.264), and radiological honeycombing (HR 3.691, 95% CI: 1.053 to 12.936) to be negative prognostic factors of mortality (Table 3). No relationship was found between the use of medication and mortality in the present cohort of RA-ILD patients.
Causes of death are summarised in Table 2. They included AE (N=5), chronic disease progression (N=6), infection (N=5), cerebro-cardiovascular disease (N=4), malignancy (N=4), and unknown (N=1).
We examined our modified HRCT classification based on the current guideline for IPF as prognostic markers in RA-ILD patients. The main point of this definition is as follows. The presence of co-existing small airway disorders such as mosaic attenuation and centrilobular nodules was ignored according to previous studies (16,17). In the recent IPF guideline, indeterminate for UIP has features of fibrosis but does not meet the criteria for definite or probable UIP and does not explicitly suggest an alternative diagnosis (14). Considering these two points, we thought that the existence of mild GGO as a HRCT feature or central/diffuse distribution as the predominant distribution in addition to subpleural and basal predominant reticulation as UIP, should be classified as indeterminate for UIP. Then, by our modified HRCT definition, most patients with indeterminate for UIP were classified as having NSIP/UIP. We also found that older age, a history of AE, and radiological honeycombing were significantly poor prognostic factors in the survival analysis. The present study revealed three important points.
First, indeterminate for UIP as a NSIP/UIP pattern was the major HRCT pattern in RA-ILD, and the rate of concordance of HRCT patterns between the two pulmonologists was good. Some previous studies showed that the overall prognosis of patients with a HRCT UIP pattern was significantly worse compared with that in patients with a non-UIP or NSIP pattern (5,20,21). Therefore, in the clinical setting, distinguishing UIP from non-UIP is important to appropriately manage patients with RA-ILD (22). Furthermore, because HRCT is highly predictive of the histological UIP pattern with high specificity, this imaging technique may be a more pragmatic, non-invasive approach for assessing the prognosis of RA-ILD (5,22). However, because lymphoid hyperplasia, peribronchiolar lesion, and mixed UIP and NSIP are frequent pathological findings (12,13), we often cannot classify a HRCT pattern specifically as either UIP or NSIP in clinical practice. Similarly, over a quarter of our RA-ILD subjects presented a NSIP/UIP pattern. This result resembled that of a previous study by Kim et al. (4). Subjects with a NSIP/UIP pattern in the present study might have been forcibly diagnosed as having NSIP or UIP in previous reports. Thus, we considered the possibility that the correlation between HRCT pattern and prognosis could vary. In addition, our modified HRCT classification based on the current IPF guideline showed a high rate of concordance for observer agreement, even though our study might have a biased radiological analysis due to its single-center nature. Therefore, this definition might be useful in future RA-ILD studies.
Second, HRCT pattern was not associated with worse survival, but radiological honeycombing predicted a significantly poor prognosis. A recent study showed definite UIP to have a poorer prognosis than probable UIP in RA-ILD (16). However, Kim et al. reported no difference in median survival between subjects with definite UIP and those with indeterminate NSIP/UIP (4). It is unclear whether radiological honeycombing is linked to prognosis in RA-ILD. As a caveat, we speculate that in previous studies, if patients had radiological honeycombing, they most probably had definite UIP rather than other patterns. Adegunsoye et al. recently noted that honeycombing represents a progressive fibrotic ILD phenotype regardless of underlying disease such as RA, IPF, or chronic hypersensitive pneumonia (23). Therefore, we highlighted honeycombing as the most important radiological finding in clinical practice regardless of a UIP or indeterminate for UIP pattern.
The present study also showed that NSIP did not have a significantly better prognosis than NSIP/UIP, probable UIP, or definite UIP. For example, the median survival times were 6.8 years for definite UIP and 7.8 years for NSIP. This survival time for UIP was longer than previously reported in patients with RA-ILD (4,5,20,21), suggesting that most of our study patients had a mild grade of ILD because about half of them had ILD preceded by a RA diagnosis; in other words, many subjects without respiratory symptoms were diagnosed as having RA-ILD by rheumatologists. From the long-term viewpoint, some patients with idiopathic NSIP had a poor prognosis because of combined malignancy and therapy-related complications such as infections, as noted in our previous study (24). Although we cannot say for certain, the patients with RA-ILD also had similar problems of idiopathic NSIP and thus might not have a significant differently prognosis between NSIP and other patterns.
Third, AE of ILD was the most important factor affecting poor survival in RA-ILD. AE of ILD was involved in 22% of the causes of death in our cohort. Moreover, 80% of the patients with UIP or NSIP/UIP and a history of AE of ILD could not recover and died, although 2 patients with NSIP and a history of AE did recover. Hozumi et al. reported that AE seriously impacts patient survival, and the a radiological UIP pattern was associated with the development of AE (20). Therefore, if the component of UIP (i.e., subpleural reticulation in the lower lobe) is found to a certain degree, we should recognize the risk of AE of ILD regardless of a pattern of UIP or indeterminate for UIP (i.e., NSIP/UIP).
The limitations of this study are as follows. First, it was a retrospective, single-center study. Second, selection bias may be present because this study examined only anti-CCP antibody-positive patients with RA-ILD. Although anti-CCP is a specific antibody present in a large number of patients with RA (25), our results might not be generalizable to the overall RA population because some patients with RA were negative for anti-CCP antibody. Third, we could not determine whether the clinical diagnosis of RA-ILD impacted treatment decisions and as such, the natural disease course. Fourth, expert thoracic radiologists should analyse HRCT findings, not pulmonologists. Although it is common for pulmonologists to perform HRCT analysis in clinical practice, whether analysis by thoracic radiologists is preferable will require further study. Fifth, although we could not quantitatively assess the radiological findings, which would be an issue for future investigation, we believe our modified HRCT classification may offer a useful radiological approach in clinical practice because of the high rate of concordance between the pulmonologists.
In conclusion, our study identified indeterminate for UIP as the major NSIP/UIP pattern in RA-ILD according to our modified HRCT classification referring to the current IPF guideline. The presence of radiological honeycombing could be a useful predictor of poor prognosis. Furthermore, AE of ILD seriously impacts patient survival regardless of whether a UIP or indeterminate for UIP pattern is present. Use of our modified HRCT classification according to the latest guideline on IPF might aid in the assessment of appropriate strategies of diagnosis in future RA-ILD studies.
We sincerely thank Yosuke Sasaki of Satista Co., Ltd. for his advice on statistical analysis. The authors also thank Rise Japan LLC for the professional English language review. All work was performed at the Saitama Red Cross Hospital.
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was approved by the institutional review board of Saitama Red Cross Hospital (approval no. 18-AE).
