Intercept of minute ventilation versus carbon dioxide output relationship as an index of ventilatory inefficiency in chronic obstructive pulmonary disease
Original Article

Intercept of minute ventilation versus carbon dioxide output relationship as an index of ventilatory inefficiency in chronic obstructive pulmonary disease

Fang Lin1^, Shan Nie1, Ranran Zhao1, Min Cao2, Wei Yuan1, Yunxiao Li1, Chunting Tan1, Bo Xu1, Haoyan Wang1

1Department of Respiratory Medicine, Capital Medical University Affiliated Beijing Friendship Hospital, Beijing, China; 2Department of Cardio-Pulmonary Function, Capital Medical University Affiliated Beijing Chest Hospital, Beijing Tuberculosis and Thoracic Tumor Research Institute, Beijing, China

Contributions: (I) Conception and design: H Wang, B Xu; (II) Administrative support: H Wang; (III) Provision of study materials or patients: H Wang, F Lin, S Nie, R Zhao; (IV) Collection and assembly of data: F Lin, S Nie, R Zhao, W Yuan, Y Li, C Tan; (V) Data analysis and interpretation: F Lin; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

^ORCID: 0000-0002-1009-9871.

Correspondence to: Haoyan Wang, MD; Bo Xu, MD. Department of Respiratory Medicine, Capital Medical University Affiliated Beijing Friendship Hospital, No. 95 Yong An Road, Xicheng District, Beijing 100050, China. Email: haoyanw@ccmu.edu.cn; xubo_ally@126.com.

Background: Ventilatory inefficiency contributes to exercise intolerance in chronic obstructive pulmonary disease (COPD). The intercept of the minute ventilation (V̇ E) vs. carbon dioxide output (V̇ CO2) plot is a key ventilatory inefficiency parameter. However, its relationships with lung hyperinflation (LH) and airflow limitation are not known. This study aimed to evaluate correlations between the V̇ E/V̇ CO2 intercept and LH and airflow limitation to determine its physiological interpretation as an index of functional impairment in COPD.

Methods: We conducted a retrospective analysis of data from 53 COPD patients and 14 healthy controls who performed incremental cardiopulmonary exercise tests (CPETs) and resting pulmonary function assessment. Ventilatory inefficiency was represented by parameters reflecting the V̇ E/V̇ CO2 nadir and slope (linear region) and the intercept of V̇ E/V̇ CO2 plot. Their correlations with measures of LH and airflow limitation were evaluated.

Results: Compared to control, the slope (30.58±3.62, P<0.001) and intercept (4.85±1.11 L/min, P<0.05) were higher in COPDstages1-2, leading to a higher nadir (31.47±4.47, P<0.01). Despite an even higher intercept in COPDstages3-4 (7.16±1.41, P<0.001), the slope diminished with disease progression (from 30.58±3.62 in COPDstages1-2 to 26.84±4.96 in COPDstages3-4, P<0.01). There was no difference in nadir among COPD groups and higher intercepts across all stages. The intercept was correlated with peak V̇ E/maximal voluntary ventilation (MVV) (r=0.489, P<0.001) and peak V̇ O2/Watt (r=0.354, P=0.003). The intercept was positively correlated with residual volume (RV) % predicted (r=0.571, P<0.001), RV/total lung capacity (TLC) (r=0.588, P<0.001), peak tidal volume (VT)/FEV1 (r=0.482, P<0.001) and negatively correlated with rest inspiratory capacity (IC)/TLC (r=−0.574, P<0.001), peak VT/TLC (r=−0.585, P<0.001), airflow limitation forced expiratory volume in 1 s (FEV1) % predicted (r=−0.606, P<0.001), and FEV1/forced vital capacity (FVC) (r=−0.629, P<0.001).

Conclusions: V̇ E/V̇ CO2 intercept was consistently correlated with worsening static and dynamic LH, pulmonary gas exchange, and airflow limitation in COPD. The V̇ E/V̇ CO2 intercept emerged as a useful index of ventilatory inefficiency in COPD patients.

Keywords: Chronic obstructive pulmonary disease (COPD); ventilatory inefficiency; exercise; lung hyperinflation (LH); airflow limitation;


Submitted Aug 23, 2020. Accepted for publication Jan 13, 2021.

doi: 10.21037/jtd-20-2725


Introduction

Activity-related dyspnea is the defining complaint in patients with chronic obstructive pulmonary disease (COPD) (1). The limitations in activity and dyspnea are multifactorial. The development of lung hyperinflation (LH) plays an important role in the pathophysiologies of dyspnea and exercise intolerance (2). LH has a static and dynamic component. Static lung hyperinflation (sLH) is defined as functional residual capacity (FRC) equal to increased relaxation respiratory volume (Vr) resulting from loss of lung elastic recoil, while dynamic lung hyperinflation (dLH) when FRC exceeds Vr (3). dLH that occurs when the expiratory time becomes insufficient to allow the lung to achieve full exhalation yields an increased end-expiratory lung volume (EELV) during exercise (4). LH increases ventilatory workload and decreases inspiratory muscle pressure-generating capacity, despite some compensatory mechanisms (5). The diminished ventilatory capacity coupled with the increased ventilatory demand during exercise results in exercise intolerance.

The minute ventilation (V̇ E) vs. carbon dioxide production (V̇ CO2) relationship is a measure of the ventilatory efficiency at removing CO2 produced by the body. Early in exercise, V̇ E/V̇ CO2 decreases due to a lower in dead space ventilation (VD)/tidal volume (VT) ratio. When the lactic acidosis first develops, both V̇ E and V̇ CO2 increase curvilinearly, resulting in no further change in V̇ E/V̇ CO2 and PETCO2. (isocapnic buffering). The V̇ E/V̇ CO2 nadir is typically reached at isocapnic buffering period and then ventilation starts to increase to compensate for lactic acidosis at the respiratory compensation point (RCP) (6). The V̇ E/V̇ CO2 nadir was found to be highly reproducible in healthy subjects (7) and COPD patients (8). However, the V̇ E/V̇ CO2 nadir might underestimate ventilatory inefficiency if the descending curve is prematurely interrupted by lactic acidosis or a very short test duration (9). On the other hand, the V̇ E/V̇ CO2 ratio might be higher than the nadir due to the hyperventilation response to late-exercise acidosis in patients who can exercise beyond the RCP (10).

The V̇ E/V̇ CO2 slope has been used to assess disease progression and identify the presence of comorbidities (11-16). However, in many patients with moderate-to-severe COPD, the partial pressure of carbon dioxide (PaCO2) and mechanical constraints will predictably flatten the V̇ E/V̇ CO2 curve. In these patients, the V̇ E/V̇ CO2 slope might paradoxically decrease as the disease progresses if CO2 retention worsens during exercise. It is plausible that the V̇ E/V̇ CO2 nadir might be stable while the slope and intercept change in opposite directions despite COPD progression (10).

The V̇ E/V̇ CO2 intercept is a novel parameter derived from V̇ E vs. V̇ CO2 relationship by extrapolating a regression line during exercise, which theoretically equates to the VD (17) and cannot be constrained by dynamic mechanics (unlike the slope) or the test duration (unlike the nadir) (10,18). Indeed, V̇ E/V̇ CO2 = 863/[PaCO2 × (1 − VD/VT)]. If two periods—PaCO2 and the VD/VT ratio are constant during exercise, no intercept can appear. Otherwise, we can show an intercept during exercise because PaCO2 increases with greater exercise intensity, even in the absence of VD.

The V̇ E/V̇ CO2 intercept depends on the patterns of change in multiple parameters during exercise. The increased intercept in COPD patients might result from an altered breathing strategy such as increased breathing frequency to compensate for reduced VT secondary to greater mechanical constraints, and/or a progressive ventilation-perfusion mismatch in COPD patients (1). Thus, the V̇ E/V̇ CO2 intercept increases with greater disease severity in COPD patients, and it seems to be a particularly useful index for ventilatory inefficiency across the COPD severity continuum (10). However, the clinical implications of the V̇ E/V̇ CO2 intercept and its association with LH in COPD have not been formally examined except few study reported the relationship between intercept and dLH (19).

This study aimed to evaluate the relationship between the V̇ E/V̇ CO2 intercept and LH and airflow limitation in patients with COPD. We hypothesized that the V̇ E/V̇ CO2 intercept correlated well with measures of both LH and airflow limitation and could be a particularly useful index for ventilatory inefficiency in COPD.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-2725).


Methods

Study participants

This study was a retrospective analysis of incremental cardiopulmonary exercises data collected from Jan. 1, 2016 to Dec. 31, 2019 at the Respiratory Investigation Unit, Beijing Friendship Hospital, Capital Medical University (Beijing, China). The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Participants were males and females aged ≥40 years with body mass index (BMI) of 18–35 kg/m2 and given informed consent before taking part in. The study was approved by the Institutional ethics committee of Beijing Friendship Hospital of Capital Medical University (No. 2018-P2-048-01) and the written informed consent was obtained from every participant. The 53 patients were current or ex-smokers (smoking history ≥10 pack-years) and had a well-established diagnosis of COPD (20) without asthma or other pulmonary diseases. Patients were required to have had no exacerbation in the preceding 6 weeks. Fourteen control subjects with no smoking history were in the same age range and they had no major orthopedic, neuromuscular, cardiac or metabolic diseases, to allow them to safely undertake the incremental exercise tests.

Pulmonary function tests

Each subject underwent resting spirometry (MasterScreen Body, CareFusion, Hoechberg, Germany), including inspiratory capacity (IC) assessment. Body plethysmography was performed to measure residual volume (RV), TLC and diffusing capacity of the lungs for carbon monoxide (DLCO). Patients took 400 µg albuterol by inhalation 20 min before testing. All pulmonary function tests fulfilled the American Thoracic Society/European Respiratory Society guidelines (21).

Cardiopulmonary exercise test (CPET)

Symptom-limited incremental exercise testing was performed on an electronically braked cycle ergometer (ViaSprint, CareFusion, Hoechberg, Germany) with a pedaling rate of 60/min. After 3 min of rest and 3 min of unloaded pedaling, the work rate (WR) was increased by 5−15 W/min in a ramp fashion (5 W/min if FEV1 <1.0 L and 10 W/min if FEV1 ≥1.0 L for the COPD patients; 15 W/min for the control subjects, with repetition at 20 W/min if the peak WR was ≥200 W). Participants were asked to continue to exercise to the limit of tolerance, marked by the inability (despite encouragement) to maintain pedaling frequency or intolerable shortness of breath. Any participant with chest pain suggestive of ischemia, ventricular tachycardia and blood pressure (BP) ≥240/130 mmHg was prevented further exercise. Participants were continuously monitored with a 12-lead electrocardiogram and blood pressure by sphygmomanometer every 2 min.

Data collection

Respiratory gas exchange (V̇ E, V̇ O2, and V̇ CO2) and VT were measured breath-by-breath throughout the exercise testing. Serial measurements of these parameters were averaged at consecutive 30 s data. Arterial oxygen saturation was measured noninvasively by pulse oximetry (SpO2%). The V̇ E/V̇ CO2 nadir and peak V̇ E/V̇ CO2 were averaging the consecutive 30 s data points at lowest and peak time, respectively (7). The slope of the V̇ E/V̇ CO2 relationship was determined based on the V̇ E vs.V̇ CO2 plot (V̇ E on the y-axis and V̇ CO2 on the x-axis). A linear regression line was determined based on exercise data points, excluding data above the respiratory compensation point (7,22). The V̇ E/V̇ CO2 intercept was calculated by extrapolating the regression line to V̇ CO2 =0. Maximal voluntary ventilation (MVV) was calculated as FEV1 ×40. Peak VT/FEV1 was considered as emphysema factor (19) and peak VT/TLC as dLH parameter during exercise (23) while IC/TLC, RV % predicted and RV/TLC were used as sLH (24).

Statistical analysis

The sample size required was based on compare k means: one-way analysis of variance (ANOVA) pairwise, two-sided equality for α of 0.05, a power (1-β) of 0.8 to detect this difference by using Medcalc Statistical Software version 19.1.3 (Medcalc Software BV, Ostend, Belgium; https://www.medcalc.org; 2019). Values were reported as mean ± SD unless otherwise stated. P value <0.05 was considered significant in all analyses. Intraclass correlation coefficients were used to determine the level of between-investigator agreement in the calculation of the slope and intercept. Between-group comparisons were performed using one-way ANOVA with LSD post-hoc testing of significant variables. Pearson’s correlation coefficient (r) was used to assess the correlations between the ventilatory inefficiency parameters (V̇ E/V̇ CO2 intercept, slope and nadir) and peak V̇ E/MVV, peak V̇ O2/Watt, static and dynamic hyperinflation measures (RV % predicted, RV/TLC, IC/TLC and peak VT/TLC, peak VT/FEV1), and airflow limitation (FEV1% predicted and FEV1/FVC). All analyses were performed with SPSS Statistics 20.0 (IBM, Chicago, USA).


Results

Participant characteristics and resting spirometric measurements

As shown in Table 1, the COPDstages1-2 (n=35), COPDstages3-4 (n=18) and control (n=14) were well matched in terms of age, weight, and BMI. There are the expected decreases in FEV1% predicted, FEV1/FVC, IC % predicted, IC/TLC, DLCO % predicted and the expected increases in RV % predicted, RV/TLC, from COPDstages1-2 to COPDstages3-4 (P<0.001). Table 1 shows demographics and selected resting pulmonary function variables in control and COPD patients.

Table 1

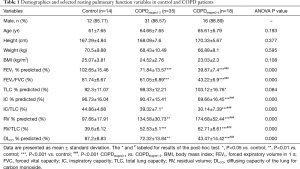

Table 1 Demographics and selected resting pulmonary function variables in control and COPD patients
Full table

Exercise characteristics

Table 2 shows the exercise variables at peak exercise in control and COPD patients. All subjects completed the exercise testing without complications. No one repeated the CPET and no one peak workload more than 200 W. Among them ranges of exercise duration were found from 6 to 10 min. Peak exercise capacity was progressively reduced from the control to COPDstages1-2 and COPDstages3-4 patients. Measures at peak exercise showed that the COPDstages3-4 patients had significantly reduced V̇ E, V̇ O2, V̇ O2% predicted, V̇ O2/HR, V̇ CO2and WR except peak V̇ E/MVV in comparison to control (P<0.001). COPDstages3-4 patients had significantly reduced V̇ O2% predicted, V̇ E, and WR while peak V̇ E/MVV increased in comparison to COPDstages1-2 (P<0.001). During exercise, the peak VT in COPDstages3-4 (1.3±0.2) was lower than in COPDstages1-2 (1.64±0.35), and significantly lower than control (1.79±0.22) (P<0.001). Considering emphysema factor, peak VT/FEV1 (%) in COPDstages3-4 (114±23.28) was higher than in COPDstages1-2 (84.72±17.18), and significantly higher than control (65.49±12.95) (P<0.001). There was also significant difference between COPDstages1-2 and COPDstages3-4 (P<0.001). Regarding the measures of dLH peak VT/TLC (%), compared to control (33.15±5.5), COPDstages1-2 (27.45±5.02, P<0.01) and COPDstages3-4 (19.88±4.78, P<0.001) patients all exhibited significant difference; there was also significant difference between COPDstages1-2 and COPDstages3-4 (P<0.001).

Table 2

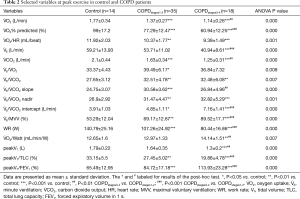

Table 2 Selected variables at peak exercise in control and COPD patients
Full table

Ventilatory inefficiency in COPD patients

The V̇ E/V̇ CO2 relationships were expressed in terms of the slope, nadir, and intercept. Compared to control (24.75±3.07), the slope was increased in COPDstages1-2 (30.58±3.62) and decreased in COPDstages3-4 (26.84±4.96). The nadir was increased in COPDstages1-2 (31.47±4.47, P<0.01) and almost stable in COPDstages3-4 (32.82±5.29, P<0.001) in comparison to control (26.9±2.92). There was no difference between COPDstages1-2 and COPDstages3-4. As for the intercept, the COPDstages1-2 and COPDstages3-4 had higher intercepts (4.85±1.11, P<0.05), and (7.16±1.41, P<0.001) respectively in comparison to control (3.91±1.03). There was significant difference between COPDstages3-4 and COPDstages1–2 (P<0.001). V̇ E/V̇ CO2 intercept increased across the severity spectrum of COPD. Among ventilatory inefficiency parameters (slope, nadir and intercept), only V̇ E/V̇ CO2 intercept exhibited correlation with peak V̇ O2/Watt (r=0.354, P=0.003) and peak V̇ E/MVV (r=0.489, P<0.001). Figure 1 shows measures of ventilatory inefficiency in control and COPD patients. Figure 2 shows V̇ E/V̇ CO2 intercept in correlation with peak V̇ E/MVV and peak V̇ O2/Watt in the entire study group.

Figure 1 Measures of ventilatory inefficiency in control and COPD patients. (A) V̇ E/V̇ CO2 intercept, (B) V̇ E/V̇ CO2 nadir, and (C) V̇ E/V̇ CO2 slope in control and COPD patients. (A) The COPDstages1-2 and COPDstages3-4 had higher intercepts in comparison to control. V̇ E/V̇ CO2 intercept increased across the severity spectrum of COPD (P<0.001). (B) The nadir was increased in COPD patients in comparison to control. There was no difference between COPDstages1-2 and COPDstages3-4. (C) Compared to control, the slope was increased in COPDstages1-2 (P<0.001) and then decreased in COPDstages3-4. There was no difference between COPDstages3-4 and control. COPD, chronic obstructive pulmonary disease; V̇ E, minute ventilation; V̇ CO2, carbon dioxide output.

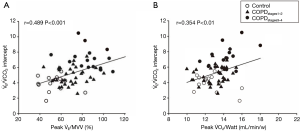

Figure 2 Correlations between V̇ E/V̇ CO2 intercept and peak V̇ E/MVV and peak V̇ O2/Watt in the entire study group. (A) V̇ E/V̇ CO2 intercept vs. peak V̇ E/MVV (r=0.489, P<0.001); (B) V̇ E/V̇ CO2 intercept vs. peak V̇ O2/Watt (r=0.354, P<0.01). MVV, maximal voluntary ventilation; V̇ E, minute ventilation; V̇ CO2, carbon dioxide output; V̇ O2, oxygen uptake.

Correlation of ventilatory inefficiency with LH and airflow limitation

Table 3 shows the correlation coefficients of the ventilatory inefficiency parameters and measures of LH, airflow limitation. The relationships between the measures of ventilatory inefficiency and LH and airflow limitation were assessed in COPD patients. The V̇ E/V̇ CO2 intercept was correlated with the measures of sLH and dLH (Table 3), rest IC/TLC (r=−0.574, P<0.001), RV % predicted (r=0.571, P<0.001), RV/TLC (r=0.588, P<0.001), peak VT/FEV1 (r=0.482, P<0.001) and peak VT/TLC (r=−0.585, P<0.001) respectively while the V̇ E/V̇ CO2 slope not. The V̇ E/V̇ CO2 nadir was also correlated with rest IC/TLC (r=−0.35, P=0.004), RV % predicted (r=0.383, P=0.001) RV/TLC (r=0.431, P<0.001), and peak VT/TLC (r=−0.503, P<0.001).

Table 3

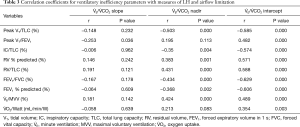

Table 3 Correlation coefficients for ventilatory inefficiency parameters with measures of LH and airflow limitation
Full table

A similar pattern of results was found in correlation to airflow limitation. The V̇ E/V̇ CO2 intercept showed correlation with FEV1% predicted (r=−0.606, P<0.001) and FEV1/FVC (r=−0.629, P<0.001) while V̇ E/V̇ CO2 slope not. V̇ E/V̇ CO2 nadir was also correlated with FEV1% predicted (r=−0.368, P=0.002) and FEV1/FVC (r=0.424, P<0.001).


Discussion

The main finding of this study was that the V̇ E/V̇ CO2 intercept was consistently correlated with worsening static and dynamic LH and increasing airflow limitation in COPD. This suggests that it could be a useful index for ventilatory inefficiency during incremental exercise in COPD.

Abnormalities in the V̇ E/V̇ CO2 relationship were present across the spectrum of COPD severity. Increases in both the V̇ E/V̇ CO2 nadir and slope were associated with lower maximal exercise capacity in COPD patients (10,25-27). In our study, compared to control, COPDstages1–2 had a higher slope and nadir. For healthy subjects who can tolerate high levels of exercise, the V̇ E/V̇ CO2 nadir and ratio at the anaerobic threshold were usually very similar (7). As the lactate threshold may not always be identified, particularly in clinical populations with low exercise capacity (28), the V̇ E/V̇ CO2 nadir seems a more accurate indication of ventilatory efficiency than the V̇ E/V̇ CO2 at the lactate threshold. However, the V̇ E/V̇ CO2 nadir, might underestimate ventilatory efficiency for early lactic acidosis or an excessively short test duration (9). The results showed patients with COPDstages1-2 had a higher slope and nadir, while COPDstages3-4 had a lower slope, and a stable nadir. The V̇ E/V̇ CO2 intercept, by definition, cannot be constrained by worsening mechanics (as the slope) or test duration (as the nadir). It should be recognized that including the data points after the RCP will necessarily increase the computed slope and decrease the computed intercept. Furthermore, including the data points after the RCP does not accurately reflect V̇ E vs. V̇ CO2 plot profile. In present study, we excluded the data above the RCP for linear regression to calculate the slope and intercept. The V̇ E/V̇ CO2 intercept was higher across all stages in current study. This is in line with a retrospective study reported by Neder of 316 patients with a large range of resting pulmonary function (FEV1 =12−148% predicted) (10). A lower slope, stable nadir, and a higher intercept in more advanced COPD stage likely reflected the opposite changes in V̇ E/V̇ CO2 slope and intercept.

There is mounting evidence that ventilatory inefficiency parameters are powerful prognostic predictors in COPD patients with comorbidity. A retrospective study of 145 COPD patients undergoing surgery for non-small cell cancer (NSCLC) showed that a V̇ E/V̇ CO2 slope >34 predicted mortality after lung resection surgery (29). A high-intensity pulmonary rehabilitation programs could improve ventilatory efficiency in patients with COPD undergoing lung resection for NSCLC (V̇ E /V̇ CO2 slope from 32.0±2.8 to 30.1±4.0, P<0.01) (30). As for the V̇ E/V̇ CO2 nadir, Neder et al. reported that a value >34 in combination with resting hyperinflation predicted mortality in COPD (31). Importantly, a series of studies demonstrated that the V̇ E/V̇ CO2 intercept (cutoff values ranging from 2.64−4.07 L/min) might discriminate COPD from heart failure (32,33).

Ventilatory inefficiency increases ventilatory demand and exercise capacity limitation in COPD patients. The increase of peak V̇ E/MVV across all stages reflected the worsening breathing reserve in COPD. Interestingly, the V̇ E/V̇ CO2 nadir and intercept were highly positively related to the peak V̇ E/MVV in the current study. V̇ O2-work rate relationship describes how much O2 is utilized by exercise subject in relation to the quantity of external work performed. Among the V̇ E/V̇ CO2 slope, nadir and intercept, only V̇ E/V̇ CO2 intercept was positively related to the peak V̇ O2/Watt (Table 3). This was consistent with Neder’s reports that V̇ E/V̇ CO2 intercept was correlated with the peak metabolic stress (V̇ O2peak) (10).

Two other independent studies found correlations between the V̇ E/V̇ CO2 nadir and emphysema severity on high-resolution computed tomography scans in COPD patients with largely preserved FEV1 (34,35). Teopompi reported that patients with the ratio of peak VT/FEV1 ≥1 had a predominant pulmonary emphysema profile, thereby showing a higher degree of airflow obstruction (19). We found the V̇ E/V̇ CO2 intercept was positively related to peak VT/FEV1 and particularly the ratio of peak VT/FEV1 in COPDstages3-4 was more than 1 (1.13±0.23). The consequence of pulmonary parenchyma destruction and loss of elastic recoil is static hyperinflation. Emphysema and development of expiratory flow limitation promote progressive air trapping with an increase in the EELV and a decrease in IC. RV was also increased in emphysema/COPD due to both loss of elastic recoil and premature closure of the small airways (3,36,37). In expiratory flow-limited patients, EELV was a continuous dynamic variable dependent on expiratory duration and breathing pattern. DH refers to this temporary and variable increase in EELV. As ventilation increases and expiratory duration decreases, there is not enough time to allow EELV to decline to its baseline resting value (38).

Studies reported that both sLH and the degree of dLH were associated with the development of dyspnea and exercise intolerance in COPD patients (39,40). Assuming TLC stability, the resting IC and inspiratory reserve (IRV) showed the operating position of VT relative to the TLC. The smaller the resting IC, the shorter the exercise time before VT plateaus and dyspnea abruptly escalates (41). A 4-year longitudinal study reported that significant reductions in peak V̇ O2 and V̇ E were related to a decreased resting IC (42). Both rest IC/TLC and RV/TLC in patients with COPD reflected the degree of sLH and also the functional reserve. Rest IC/TLC was also found to be a valuable and independent predictor of all-cause and respiratory mortality in COPD compared with that of the BODE (body mass index, airflow obstruction, dyspnea, exercise performance) index (43). The present study showed that the V̇ E/V̇ CO2 intercept was more strongly correlated with a series of highly relevant parameters, rest IC/TLC (r=−0.574, P<0.001), RV % predicted (r=0.571, P<0.001) and RV/TLC (r=0.588, P<0.001), and V̇ E/V̇ CO2 nadir with rest IC/TLC (r=−0.35, P=0.004), RV % predicted (r=0.383, P=0.001), RV/TLC (r=0.431, P<0.001). The V̇ E/V̇ CO2 slope had no correlation with sLH parameters.

A progressive increase in EELV, while IC decreases was associated with dyspnea and exercise intolerance in COPD during exercise (44). Serial measurements of IC to detect its changes were reported as a classic way to identify dynamic hyperinflation (39,40,45). However, the study participants had to be familiar with the maneuvers, and IC measurements also had to be standardized by researchers (46). Dynamic IC measurement is not recommended for ramp-pattern protocols where VT cannot steadily proceed to perform the IC maneuver. However, the ramp-pattern protocol is a widely used for incremental testing (46). Elevated EELV can substantially constrain VT expansion at higher exercise intensities. It is logical that COPD patients reach a VT plateau and have similar minimal inspiratory reserve volume. Chuang et al. investigated peak VT/TLC as a convenient new marker of DH and reported a cutoff of 0.27 (23). In this study, we used peak VT/TLC instead of ∆ (peak-rest) IC as the index of dLH. Among ventilatory inefficiency parameters (slope, nadir, and intercept), we found that only the V̇ E/V̇ CO2 intercept exhibited a better correlation to peak VT/TLC (r=−0.585, P<0.001). To our knowledge, this is the first study to describe the relationship between ventilatory inefficiency parameters and rest IC/TLC, RV/TLC and peak VT/TLC as static and dynamic LH index. Interestingly, the V̇ E/V̇ CO2 intercept was also correlated with worsening pulmonary airflow limitation as indicated by FEV1/FVC (r=−0.629, P<0.001) and FEV1% predicted (r=−0.606, P<0.001). This was consistent with Teopompi’s reports, expressed as FEV1% predicted (r=−0.482, P<0.001) (19) and FEV1/VC in subjects with COPD (r=−0.38, P=0.009) (47).

A limitation of our study is the small number of subjects although well matched proportions of female patients in three groups (2/14 in control, 4/35 in COPDstages1-2, and 2/18 in COPDstages3-4, respectively). We did not correlated the V̇ E/V̇ CO2 slope, nadir and intercept with dyspnea in current study. Notably, our findings of a significantly lower V̇ E/V̇ CO2 slope in COPDstages3-4 compared with COPDstages1-2 might be due to changes in VD/VT, which we did not calculation in present study. We believe that the increased ventilatory inefficiency associated with LH might be more pronounced in patients with more advanced COPD. However, in the absence of a true criterion test for ventilatory inefficiency during exercise, we relied on a set of variables that are indirect markers of pulmonary gas-exchange disturbances. We also recognize that variables related to disease phenotypes and test factors (e.g., duration) affect different strategies to reflect ventilatory inefficiency. Therefore, we can only infer, not establish the mechanism underlying the ventilatory inefficiency in COPD patients during exercise. Further an additional study with VD/VT and PaCO2 measurements is needed.


Conclusions

V̇ E/V̇ CO2 intercept increased across the severity spectrum of COPD patients and consistently correlated with exercise capacity. Increases in V̇ E/V̇ CO2 intercept were consistently correlated with worsening static and dynamic LH and airflow limitation. A hitherto underappreciated variable, the V̇ E/V̇ CO2 intercept, was found to be a particularly useful index of ventilatory inefficiency during incremental exercise in COPD patients. Further comprehensive studies are promised to corroborate these preliminary results.


Acknowledgments

The authors would like to appreciate Richard Casaburi, PhD, MD, Janos Porszasz, MD, PhD, from Los Angeles Biomedical Research Institute at Harbor-UCLA Medical Center, explanation of the concept. We also would like to thank Nan Jia, Xujuan Zhao, and Bin Li from the pulmonary function investigation unit of the Department of Respiratory Beijing Friendship Hospital, Capital Medical University for performing the lung function test and the medical support during the execution of the CPET.

Funding: This study was supported by the Capital’s Funds for Health Improvement and Research (No. 2018-2-2024, Beijing, China).


Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-2725

Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-2725

Peer Review File: Available at http://dx.doi.org/10.21037/jtd-20-2725

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-2725). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional ethics committee of Beijing Friendship Hospital of Capital Medical University (No. 2018-P2-048-01) and the written informed consent was obtained from every participant.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
