Efficacy and safety of apatinib combined with whole-brain radiation therapy with a simultaneous integrated boost for brain metastases from non-small cell lung cancer: a multicenter retrospective study

Introduction

The brain is a common metastatic site of lung cancer. Approximately 10–20% of lung cancer patients have brain metastases (BMs) at initial diagnosis (1). Further, about 20–65% of non-small cell lung cancer (NSCLC) patients will develop BMs during treatment (2). With the emergence of new treatment methods, such as targeted therapy and immunotherapy, the survival time of lung cancer is prolonged, but the probability of BM also increases (3). The occurrence of BMs often leads to severe headaches, nausea, vomiting, and neurological disorders, such as a slow response, dementia, and seizures (4,5). Additionally, patients’ quality of life is significantly reduced, and the natural average survival time is <3–6 months (6). Thus, the treatment of BMs in lung cancer patients is a very common and thorny problem in clinical setting.

Angiogenesis is a critical step in the occurrence and development of cancer. The vascular endothelial growth factor (VEGF) and its receptor vascular endothelial growth factor receptor (VEGFR) are critical in anti-angiogenic targeted therapy (7,8). Several clinical studies such as ECOG 4599, and ALTER 0303/1202 confirmed the benefits of anti-angionenic drugs in lung cancer, which prolongs progression free survival (PFS) and overall survival (OS). compared to chemotherapy alone (9-11). Therefore, Avastin and anlotinib were approved in first-line and third-line treatment for advanced non-squamous non-small cell lung cancer and lung cancer respectively. Apatinib is a small-molecule tyrosine kinase inhibitor (TKI) that specifically inhibits the VEGFR-2, and is used in the standard treatment of advanced gastric cancer (12,13). This drug is also used to treat a variety of solid tumors, and can prolong OS (14).

Whole-brain radiation therapy (WBRT) or stereotactic radiosurgery (SRS) are the main treatments for BM, and treatment selection is mainly based on the number of BMs (15,16). BMs are often accompanied by peritumoral brain edema (PTBE). WBRT can cause or aggravate edema, leading to the symptom of intracranial hypertension (17). There is a synergistic effect between anti-angiogenic therapy and radiotherapy, as the VEGF signaling pathway is involved in the formation of PTBE in lung cancer patients with BMs (18). Anti-angiogenic therapy can normalize blood vessels and improve cell hypoxia, thus increasing the sensitivity of patients to radiotherapy (19-21). Thus, anti-angiogenesis therapy combined with brain radiotherapy is the focus of much research, and its purpose is to improve the intracranial control rate and mitigate brain edema.

Previous studies have shown that the use of bevacizumab combined with radiotherapy in the treatment of BMs achieves satisfactory results and has good safety (22-24). Compared to bevacizumab, apatinib has a better application prospect because it is an oral dosage, which is easier to administer clinically, and it is also cheaper. So far, there is no definite evidence that apatinib can enter the blood-brain-barrier, but a clinical study in small sample sizes have shown that apatinib can be sensitized to brain radiation (25). The highlight of our study is our radiotherapy modality (WBRT-SIB), which is a viable alternative to SRS for several reasons. First, many hospitals throughout the world do not have the proper equipment and technical capabilities to offer SRS, and this is especially true for rural facilities and/or those in developing nations. Second, the risk of radiation necrosis from SRS (especially for large BM) is not trivial; the risk of radiation necrosis is quite low with a 15-fraction SIB approach, and we have to date not observed a single case. Third, SRS is often not covered by insurance for numerous BM, and WBRT-SIB may offer an alternative path to dose-escalation of measurable BM that obviates insurance concerns. Until now, the efficacy of apatinib combined with WBRT-SIB for BMs has not been entirely clear. Thus, apatinib combined with WBRT-SIB was used to treat NSCLC patients with BMs at multiple centers. We retrospectively investigated the real-world efficacy and safety of this treatment model. We present the following article in accordance with the STROBE reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-96/rc).

Methods

Patients

This retrospective study was jointly conducted by the Hubei Cancer Hospital, Renmin Hospital of Wuhan University, and Jianghan Oilfield Hospital. Eligibility criteria were patients 18–75 years old with measurable BM from histologically-confirmed NSCLC (including both newly-diagnosed and previously treated NSCLC) and expected survival time greater than 3 months. Patients were excluded from the study if they met any of the following exclusion criteria: had an uncontrolled or symptomatic systemic disease, such as active hepatitis B, AIDS, or Alzheimer’s disease, had recurrent BM, and/or had previously received surgery or radiotherapy for BM (2 patients were excluded for recurrent BM).

The patients’ data, including data on their general condition, gene mutation status, intracranial tumor status, and adverse reactions, were retrospectively reviewed from electronic medical records. Patient survival was determined by electronic medical records or telephone follow-up calls (4 patients were excluded due to loss during the follow-up period).

The study was performed in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the institutional review boards of the Hubei Cancer Hospital (No. LLHBCH2022YN-004), Renmin Hospital of Wuhan University (No. 2017K-C021), and Jianghan Oilfield Hospital. All the patients enrolled in this study signed the informed consent form. The patient selection procedure is displayed in Figure 1.

Figure 1 The trial profile of the screening process.

Treatment model

The specific implementation plan of apatinib combined with brain radiotherapy was as follows: 250 or 500 mg of apatinib was administered orally 1 week before brain radiotherapy. The dose of apatinib was chosen according to the general condition of the patients. For patients with a Karnofsky performance score (KPS) of 80–90 and those aged <60, 500 mg of apatinib was administered orally, while the rest of the patients were administered 250 mg of apatinib orally. If a patient had adverse reactions > grade 2, the dose of apatinib was reduced to 250 mg. For patients with epidermal growth factor receptor (EGFR) mutations, EGFR inhibitor drugs were administered at the same time as apatinib. The radiation dose for WBRT was 37.5 Gy/15 fractions (F) with a simultaneous boost of 49.5–52.5 Gy/15 F. Apatinib was administered orally during and 1 week after radiotherapy. Intracranial progression-free survival (iPFS), OS, the intracranial disease control rate (iDCR), the intracranial overall response rate (iORR), and safety were calculated and observed.

Patient evaluations

Before starting treatment, patients received the relevant tests, including a complete blood count, liver and kidney function, blood pressure monitoring, routine urine tests, and brain MRI examinations. Each patient’s KPS, neurological examination results, and physical examination results were also evaluated. After treatment and before the data block time, the patients were followed-up every 3 months until death or loss during follow-up. Brain MRI examinations were also conducted every 3 months during the follow-up period. Drug toxicity was graded according to the Common Terminology Criteria for Adverse Events V4.0 every week.

Statistical analysis

For the analysis of time to iPFS, the data for patients who were alive and had no intracranial disease progression regardless of the status of the extracranial lesions or who were lost to follow-up were censored at the time of the last tumor assessment. SPSS software (version 20.0) was used to conduct the statistical analysis of the data.

Results

Patient’s demographics

From July 2016 to January 2020, 22 patients were treated under this model; however, after applying the patient selection procedure, only 16 patients who had been histologically confirmed NSCLC were enrolled in this retrospective study. As Table 1 shows, the most common pathological type was adenocarcinoma. Four patients had EGFR gene mutations (3 patients had harbor exon 19 deletions, and 1 patient had the exon 21 L858R mutation). There were 12 male and 4 female patients, and patients had a median age of 58 years (range, 33–74 years). Most patients had a KPS of 80–90, and the majority (62.5%) of patients had 1–3 BM. The median Diagnosis-Specific Graded Prognostic Assessment score was 2.5.

Toxicity

All 16 patients in the study tolerated the treatment of apatinib combined with brain radiotherapy. Nine patients started taking 500 mg of apatinib, but the dose of 2 patients was reduced to 250 mg because of high blood pressure and oral mucositis and ulcers. The toxicity results are displayed in Table 2. The most common adverse reactions were hypertension and oral mucositis, both of which had an incidence of 18.75%. Apatinib had little effect on bone marrow and liver function. Notably, there were no serious adverse reactions among patients taking EGFR inhibitors and apatinib at the same time. No grade 4–5 treatment-related toxicity was observed.

Outcomes

As of the most recent follow-up date (February 1, 2021), 7 patients were still alive. The median follow-up time was 16 months (range, 2–41 months). As Figure 2 and Table 3 shows, the median iPFS was 16.5 months [95% confidence interval (CI): 15.1–37.4 months], and the median OS was 26 months (95% CI: 17.0–54.0 months). The iPFS times for 6 months, 1 year, and 2 years were 100%, 68.8%, and 18.8%, respectively, while the OS times for 6 months, 1 year, and 2 years were 100%, 87.5%, and 56.3%, respectively.

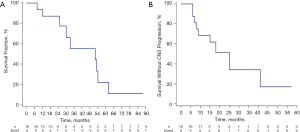

Figure 2 Kaplan-Meier curve for overall survival and intracranial progression free survival of the study population. (A) Overall survival of the study population. (B) intracranial progression free survival of the study population.

According to the Response Evaluation Criteria in Solid Tumors (RECIST 1.1), as shown in Table 4, the intracranial complete response rate at 6 months after brain radiotherapy was 6.25% (n=1), the intracranial partial response rate was 68.75% (n=11), and the intracranial stable disease rate was 25% (n=4). Among the 16 patients, the iORR was 75% and the iDCR was 100%. Additionally, the median brain EI score was initially 4.2, but after 3 months of brain radiotherapy, it was 1.9 (P=0.02). As shown in Figure 3, PTBE was significantly alleviated compared to that before treatment, and the brain EI score was significantly reduced.

Figure 3 Brain metastases before and after the study regimen. (A) Pre-treatment right parieto-occipital lobe lesion with marked peritumoral edema. (B) Post-therapy showing an excellent response. (C) Multiple metastases with edema in the right frontal lobe prior to therapy. (D) Following therapy, an excellent response was observed.

Discussion

In this retrospective study, the median iPFS was 16.5 months, and the median OS was 26 months, both of which are longer than those of historical controls. Welsh conducted a study of erlotinib plus concurrent WBRT for patients with BMs, and found that the patients had a median central nervous system (CNS) progression-free survival time of 8 months (26). Additionally, the BRAIN trial showed that for patients with the EGFR mutation in the WBRT group, the iPFS was only 4.8 months, while the median iPFS of patients in the icotinib group was 10.0 months (27). In our study, most patients had EGFR wild-type, but apatinib prolonged iPFS and even exceeded the iPFS of patients who received EGFR-TKI drugs combined with radiotherapy, which suggests that the use of apatinib combined with brain radiotherapy has strong potential to inhibit the progression of brain tumors. Based on the results of this retrospective study, we published a protocol of an open-label study of apatinib combined with brain radiotherapy in patients with driver-mutation negative NSCLC (28).

Apatinib is a small-molecule antiangiogenic targeting agent that was independently developed in China. Apatinib selectively binds to VEGFR-2, and inhibits its function by inhibiting the formation of tumor blood vessels. Thus, apatinib effectively plays an anti-tumor role by inhibiting the proliferation, migration, and angiogenesis of vascular endothelial cells (29,30). Additionally, PTBE in patients with BMs is closely associated with the VEGF signaling pathway. Thus, theoretically, inhibiting angiogenesis should reduce brain edema (31). Previous studies have shown that anti-angiogenesis drugs have a synergistic effect when combined with brain radiotherapy (20,22-24). Bevacizumab is the most studied drug in combination with brain radiotherapy. Compared to bevacizumab, apatinib is cheaper, can be taken orally, and is more convenient to use. In addition, patients in our study achieved a relatively long iPFS and OS compared to other similar clinical studies. Moreover, the brain EI decreased significantly after treatment, and the relief of brain symptoms before radiotherapy, such as nausea, vomiting and headache, was more obvious and rapid.

Equally important, the patients in our study tolerated the treatment well. The main adverse reactions were grades 1–2, and the most common adverse events were oral mucositis, hypertension, hoarseness, and fatigue. The main reason that patients can tolerate apatinib well is because they do not take it for a very long time (usually only about 5 weeks).

In conclusion, apatinib combined with WBRT-SIB for BMs from NSCLC is safe and effective. Apatinib combined with brain radiotherapy effectively prolongs the iPFS, results in a better OS, and quickly reduces brain edema, thus largely reducing the symptoms of intracranial hypertension. This retrospective study identified a potential new therapeutic model of oral anti-angiogenic drugs combined with brain radiotherapy, which could be especially effective for patients whose have wild-type driver genes. However, because the sample size of this retrospective study was small, multicenter, large sample size studies need to be conducted to verify our findings in the future.

Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (No. 81903137), the Chinese Society of Clinical Oncology Foundation (No. Y-HR2016-44) and Hubei Provincial Health Department Foundation (No. ZY2021M008).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-96/rc

Data Sharing Statement: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-96/dss

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-96/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the institutional review boards of the Hubei Cancer Hospital (No. LLHBCH2022YN-004), Renmin Hospital of Wuhan University (No. 2017K-C021), and Jianghan Oilfield Hospital. All the patients enrolled in this study signed an informed consent form. The study was performed in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
