They may be asymptomatic and slowly growing with pain development during their extension (3). They need broad tumor-free margins that often lead to complex chest wall resection and reconstruction techniques, especially when the tumor is large in diameter or located posteriorly adjacent to the vertebrae or involves the sternum. Consequently, an early diagnosis of a small tumor increases the possibility of a curative therapy and decreasing the need for extended resections (4).
Extensive chest wall defects that involve soft and skeletal tissues may be the end result of chest wall resection of those tumors with 2 available method for reconstruction of such defects; prosthetic or biologic mesh and/or flaps with their blood supply (3,5-7). Recent advances in the techniques of skeletal and musculocutaneous reconstructions have facilitated the treatment of these tumors so that tumor size is not a contraindication to radical excision (8).
They require special experience in designing resection and reconstruction. This study aimed to clarify different factors contributing to the outcome of patients with PMCWTs in our institution.
Patients and data collection
This study was approved by institutional ethics committee/ethics board of National Cancer Institute (NCI)/Cairo University (No. IRB00004025). We retrospectively reviewed pathologically proven PMCWTs that were treated surgically at the NCI, Cairo University, Egypt, during the past 10 years.
Different possible prognostic variables were used as age, sex, forced expiratory volume in the 1st second (FEV1), site, size, multiplicity, pathologic subtype, tumor grade, safety margin (SM; length, whether the least SM was bone or soft tissue, and positivity), number of excised ribs, complications, intra-operative estimated blood loss (EBL), neo-adjuvant and adjuvant treatments, local and metastatic recurrence (MR).
Computed tomography (CT) of the chest and upper abdomen was the initial staging tool for all patients with magnetic resonance imaging requested only if indicated. In our institute, the commonest used biopsy methods were core needle biopsy with or without CT guidance. We reserve fine needle aspiration cytology (FNAC) for suspected recurrence. Surgical resection and reconstruction was designed according to the site and extent of the lesion resected. Adjuvant and neo-adjuvant therapy was given according to multi-disciplinary thoracic oncology team (MDT) decision.
Our cohort included 3 groups: (I) bony sarcomas as osteosarcomas, chondrosarcomas, and primitive neuro-ectodermal tumor (PNET)/Ewing’s sarcoma; (II) soft tissue sarcoma as fibromatosis/fibrosarcoma, pleomorphic undifferentiated sarcoma previously named malignant fibrous histiocytoma, dermatofibrosarcoma protuberans, synovial sarcoma, angiosarcoma, myxofibrosarcoma, rhabdomyosarcoma, myxoliposarcoma; (III) others as carcinomas, solitary plasma cell myeloma and lymphoma that were initially diagnosed as liposarcoma (9-12).
Our institutional treatment policy for PMCWT is based on MDT decision. Regarding neoadjuvant/adjuvant treatment: (I) for PNET; the primary treatment is multi-agent chemotherapy: VAC/IE (Vincristine, Doxorubicin and Cyclophosphamide alternating with Ifosfamide and Etoposide) followed by local control therapy (either surgery or radiotherapy) followed by adjuvant chemotherapy to complete 54 weeks from the beginning of treatment (13,14); (II) for other chemo- and radio-resistant tumors as chondrosarcoma and fibrosarcoma the final decision will be based on MDT meeting opinion, however; we usually give postoperative radiotherapy in case of +ve surgical margin and high grade tumors that represent a poor prognostic criteria.
Defects less than 5 cm in diameter anywhere in the chest wall did not require skeletal reconstruction and could be closed with soft tissue only. Posterior superior defects less than 10 cm in diameter did not have to be reconstructed as they are covered with shoulder blades and large back muscles that provided adequate firmness and stability and did not disturb breathing mechanics.
Mesh with rigid reconstruction was adopted in sternal or ≥3 anterior, lateral or posterior ribs resection. Muscle reconstruction was adopted in <2 anterior ribs resection, while mesh reconstruction was done in <2 ribs resection located laterally or posteriorly similar to prior series (8). Sandwiched bone cement i.e., methyl methacrylate enclosed with Prolene mesh (MMM) was the most common method of rigid reconstruction in our institute (Figure 1) . We usually fix the MMM with sutures placed either through drill holes in adjacent ribs or through peri-costal soft tissues and fix it to the surroundings using either PDS 0 or Prolene 1 sutures with a 2–3 cm overlapping margin between the mesh and chest wall to avoid pushing the mesh inside the defect with breathing
Survival and follow-up data
Overall survival (OS) is the time from date of surgery to date of death from cancer or other causes or date of last follow-up, while disease free survival (DFS) is the time from date of surgery to date of first recurrence, death from cancer or other causes or the date of last follow-up (12). Median follow-up was 36 months [interquartile range (IQR) =11.5–60] for the whole group.
The primary outcomes were to identify OS and DFS, that were analyzed using the Kaplan-Meier survival curves. Survival curves for significant variables in the multivariate analysis were compared using Log-rank test.
The secondary outcomes were to compare the clinico-pathological and survival data between the commonest 3 pathological subtypes among our cohort (chondrosarcoma, fibromatosis/fibrosarcoma and PNET/Ewing sarcoma.
Continuous variables were presented as a median and IQR and compared using Mann-Whitney U test. Categorical variables were reported as absolute numbers (frequency percentages) and compared using Pearson’s Chi-square (χ2) test. Analysis of variance (ANOVA) test was used to compare continuous variables in >2 groups. Cox regression was used to identify factors predicting DFS in both uni- and multivariate analyses. Kaplan-Meier survival curves with P value <0.05 was considered statistically significant. Hazard ratios (HR) and 95% confidence intervals (95% CI) were calculated. Statistical analyses were conducted using SPSS version 22.0 (IBM, Armonk, NY, USA).
PMCWTs represented 10.5% of all thoracic malignancies in our institution. There were 51 females (52%). The median age was 39 years (IQR =25–52.3) years (Table 1).
Chondrosarcoma was the commonest tumor histology (20.4%) followed by fibromatosis/fibrosarcoma (19.4%) and PNET/Ewing sarcoma (16.3%) (Table 2). Other histopathological types were osteosarcoma in 9 (9.2%), pleomorphic undifferentiated sarcoma in 8 (8.2%), synovial sarcoma in 5 (5.1%), dermatofibrosarcoma in 3 (3.1%), 2 (2%) for each of angiosarcoma, alveolar soft part sarcoma, myxofibrosarcoma, rhabdomyosarcoma, plasma cell myeloma, lymphoma, adenocarcinoma and 1 (1%) for each of myxoliposarcoma, metaplastic carcinoma, squamous cell carcinoma and undifferentiated carcinoma.
Pain was the most common symptom in PNET/Ewing’s sarcoma (75%), osteosarcoma (57.1%), while mass was the most common symptom in chondrosarcoma (65%) and fibromatosis (60%).
The median tumor size was 8 cm (IQR =5–14). Tumor multiplicity was found in 18.4% of patients.
R0 resection was achieved in 62.2% of patients. Histopathologically, the least surgical margin was bone in 7 cases with 1 of them (14.3%) had +ve margin, while in the remaining 91 cases, 36 (39.6%) cases had positive margin (P=0.184).
Subgroup analysis regarding the clinico-pathological data between the commonest 3 pathological subtypes revealed higher prevalence of PNET in young age [24.5 years (20–30 years); P=0.004], higher prevalence of males in chondrosarcoma (70%; P=0.093) (Table 2). Higher SM ≥2 cm was more achievable in chondrosarcoma (35%) vs. 5.3% and 31.3% in fibromatosis/fibrosarcoma and PNET respectively (P=0.064). PNETs were likely to be of high grades (93.8%; P<0.001), develop metastatic potentials (M+ =37.5; P=0.008), especially lung metastasis (31.3%; P=0.042), receive neo-adjuvant (81.3%; P<0.001) and adjuvant treatments (87.5%, P=0.013) (Table 2).
Sternal and rib resection
Chest wall tumors were located anteriorly (35.7%), posteriorly (42.9%), laterally (5.1%) and in more than 1 location in the remaining.
Bone resection was performed in 76 patients (77.6%), ribs resection was performed in 59 patients and the median number of resected ribs per patient was 3 (IQR =1–3) ribs.
Sternal resection was done in 7 (7.1%) cases and their pathological diagnoses were 2 cases of chondrosarcoma, 2 rhabdomyosarcomata, 1 adenocarcinoma, 1 metaplastic carcinoma and 1 solitary plasma cell myeloma.
Among the 59 patients who had rib resection; 4 had sternal resection and 4 had vertebral resection as well. Among the remaining sternal resection cohort; 2 had sternal and clavicular resection and 1 had total sternectomy. Ten patients had scapulectomy, 2 had scapulectomy and clavicle resection, and 2 had clavicle resection
Thirty-one (31.6%) patients had no adjuvant therapy. Adjuvant radiotherapy was given in 20 (20.4%) patients; 8 (40%) were fibromatosis/fibrosarcoma, 5 (25%) were chondrosarcoma, 3 (15%) were synovial sarcoma and 3 (15%) were dermatofibrosarcoma and 1 (1%) was osteosarcoma. Adjuvant chemotherapy was given in 26 (26.5%) patients; 10 (38.5%) were PNET, 6 (23.1%) were osteosarcoma, 2 (7.7%) were synovial sarcoma and 1 (3.8%) of each of the followings: rhabdomyosarcoma, pleomorphic undifferentiated sarcoma, chondrosarcoma, fibrosarcoma, alveolar soft part sarcoma, metaplastic carcinoma, adenocarcinoma and squamous cell carcinoma. Adjuvant chemoradiotherapy was given in 21 (21.4%) patients; 7 (33.3%) were pleomorphic undifferentiated sarcoma, 4 (19%) were PNET, 2 (9.5%) of each of the followings: chondrosarcoma, lymphoma and plasma cell myeloma and 1 (4.8%) of each of the followings fibromatosis, osteosarcoma, rhabdomyosarcoma and undifferentiated carcinoma.
Primary closure was achieved in 52%of the cases. Forty-seven patients underwent reconstruction. Among them, MMM & pectoralis flap was achieved in 38.3%, Prolene mesh in 17%, MMM in 14.9%, split skin graft in 14.9%, attachment of the humeral head to the rest of clavicle in 6.4%, MMM & latissimus dorsi (LD) flap in 4.3% (Figure 1) and similarly Prolene mesh & pectoralis in 4.3%.
Morbidity, mortality and follow-up
Complications occurred in 17 (17.3%) patients; arrhythmia in 3 cases, bleeding in 3, both bleeding and arrhythmia in 1, chest infection in 6, effusion in 1 and wound infection in 3 cases.
There was one perioperative mortality (1.02%). The median follow-up was 36 months (IQR =11.5–60) for the whole group while it was 18 months (IQR =2.73–52.50) in Chondrosarcoma, 28.50 months (IQR =12.80–58.78) in fibromatosis/fibrosarcoma and 52.5 months (IQR =39.75–68.40) in PNET. Local recurrence (LR) developed in 35.7% of patients with median time to LR of 14.50 (6–34.25), while MR developed in 21.4% of patients (metastasis to the lungs in 13 cases, bone in 3, chest wall in 2, liver in 1, >1 site in 2 cases) with median time to MR of 19 (IQR =8–36) (Table 1).

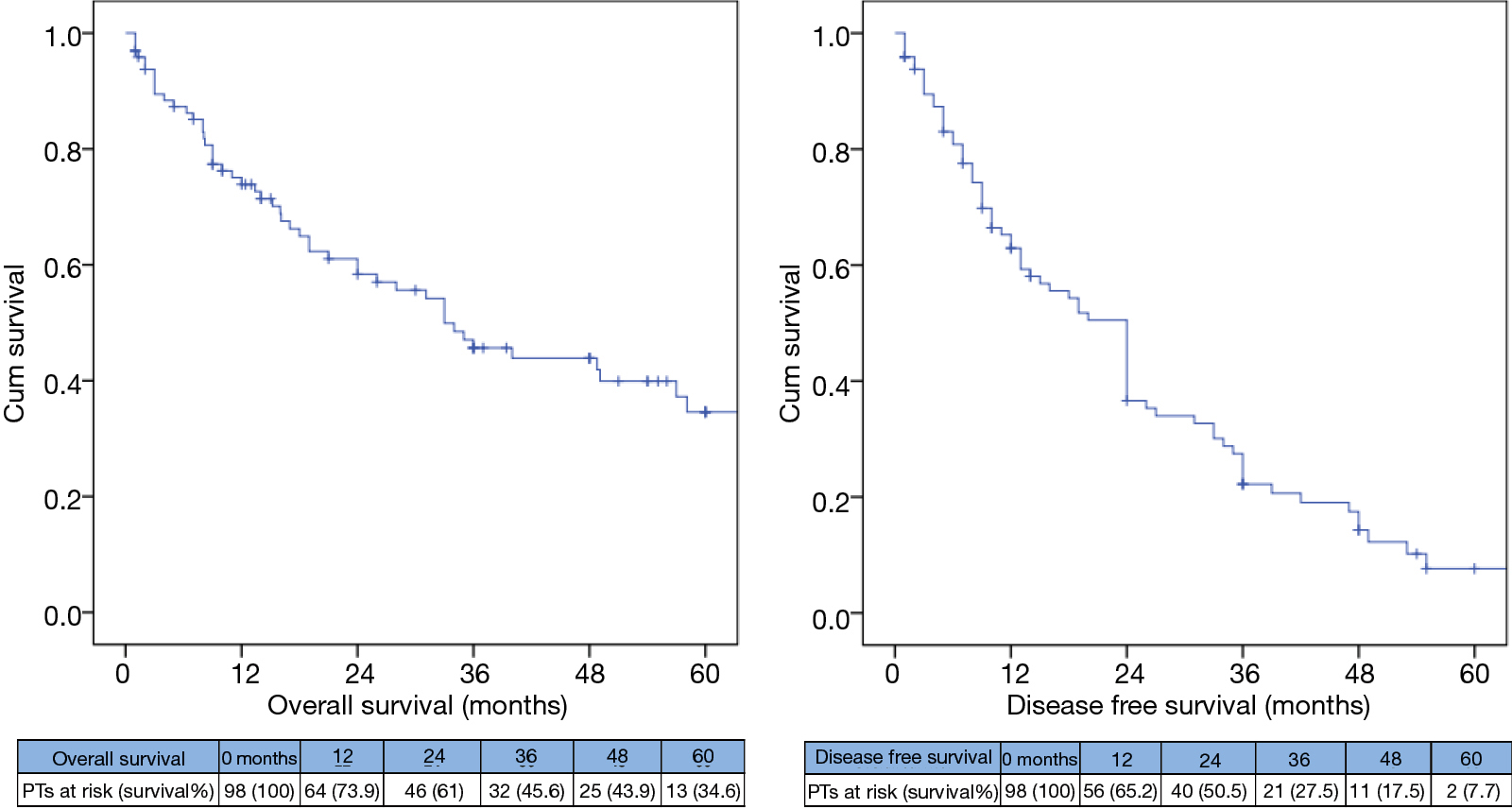

The OS for the whole group at 1, 3 and 5 years was 73.9%, 45.6% and 34.6% respectively and the median OS time was 33 months (95% CI, 21.8–44.2), while the median DFS was 24 months (95% CI, 19.6–28.4) (Figure 2).
Predictors of DFS in univariate Cox regression analysis were –ve SM (HR =0.64, 95% CI, 0.50–0.82, P<0.001), tumor size ≥5 cm (HR =2.03; 95% CI, 1.04–3.98, P=0.039), high grade tumor (HR =1.66; 95% CI, 1.04–2.63, P=0.033), higher EBL (HR =1.0001; CI, 1.0001–1.001, P=0.003) and adjuvant treatment (HR =2.16; CI, 1.24–3.76, P=0.007); however, on multivariate analysis, the only independent predictor of DFS was the –ve SM (HR =0.54; 95% CI, 0.29–0.97, P=0.041) (Table 3).
The median DFS for +ve SM was 15 (10.5–19.5) vs. 27 (17.9–36.1) months for –ve SM (P=0.001; Figure 3).
Chest wall tumors represent 5–20% of all thoracic malignancies in adult and children respectively. In children, Ewing’s sarcoma is the most common chest wall tumor; while in adults chondrosarcoma predominates (2,15,16).In our study the figure for adult was confirmed and chondrosarcoma was found to be the most predominant pathological subtype.
There were 51 (52%) females among our series that is similar to that reported by Maeda et al. (17), but are slightly different than those reported by Hemmati et al. (18) who reported 41.77% were females, however his series main point was on resection of the chest wall metastasis.
Our cohort’s median age of 39 (IQR =25–52.3) years was younger than most reported series that ranged from 49–64.8 years (17,19-22). The median age in Ewing’s sarcoma was younger [24.5 years (20–30 years)] in comparison to the whole cohort to the prior series (15,23,24).
Pain was the most common symptom in PNET/Ewing’s sarcoma (75%), osteosarcoma (57.1%), while mass was the most common symptom in chondrosarcoma (65%) and fibromatosis (60%). Similar to our results, Anderson and Burt found that the most common symptom for chondrosarcoma was mass, PNET/Ewing’s sarcoma was pain, but they found that the most common symptoms for osteosarcoma were both mass and pain (3).
It is widely accepted that all tumors of the sternum should be considered as malignant until proved otherwise (25,26). In our series, seven cases underwent sternal resection; 2 were chondrosarcoma, 2 rhabdomyosarcomata, 1 adenocarcinoma, 1 metaplastic carcinoma and 1 solitary plasma cell myeloma.
Chest wall reconstruction is essential if there is resection of three ribs or more aiming for adequate stability and water and airtight closure of the chest cavity with acceptable cosmetic appearance. Bony reconstruction should be tailored to the extent of resection. Stabilization of the chest wall obviates the need for prolonged ventilation as patients are able to maintain their pulmonary function postoperatively (6,27). Muscle and musculocutaneous flaps are the tissues of choice to cover the wound, avoid or decrease the risk of infection, obliterate spaces and cover the synthetic mesh (28). In our study, chest wall reconstruction was done by the use of double layer Prolene mesh with or without bone cement that is covered either by rotational pedicle muscle flap (LD or serratus anterior), that were chosen by proximity, knowing the arc of rotation and calculating the area of possible coverage, or covered by the local muscle flap (pectoralis major). In most cases, only a single muscle was transferred (27,29).
CWT resection is associated with a low major morbidity as long as reconstruction was done when indicated (1,8). Among our series, complication rate was 17.3% compared to 11–27% in the previous studies (1,30).
Prior reported series and meta-analysis in different cardiothoracic operations reported adverse survival with higher blood loss and intra-operative blood transfusion. In our series higher intra-operative EBL was associated with adverse DFS in univariate analysis but this was not sustained in the multivariate model (35-37).
Margin positivity (R1) was the most trivial and independent factor impacting survival in multivariate analysis. This runs in parallel to prior reported series in CWTs or other thoracic malignancies (30,38).
In primary malignant CWTs achievement of wide resection margins is of great importance to minimize the local tumor recurrence that will have an adverse impact on long-term survival.
Authors would like to thank Eng. Mostafa Rahouma for technical support in finalizing this work.
Conflicts of Interest: The authors have no conflicts of interest to declare.
Ethical Statement: This study was approved by institutional ethics committee/ethics board of National Cancer Institute (NCI)/Cairo University (No. IRB00004025). Written informed consent was obtained from the patient for publication of this manuscript and any accompanying images.
